Walter Uhl Measuring Microscope MS1

Walter Uhl Measuring Microscope MS1
Walter Uhl Measuring Microscope MS1

Walter Uhl Measuring Microscope MS1

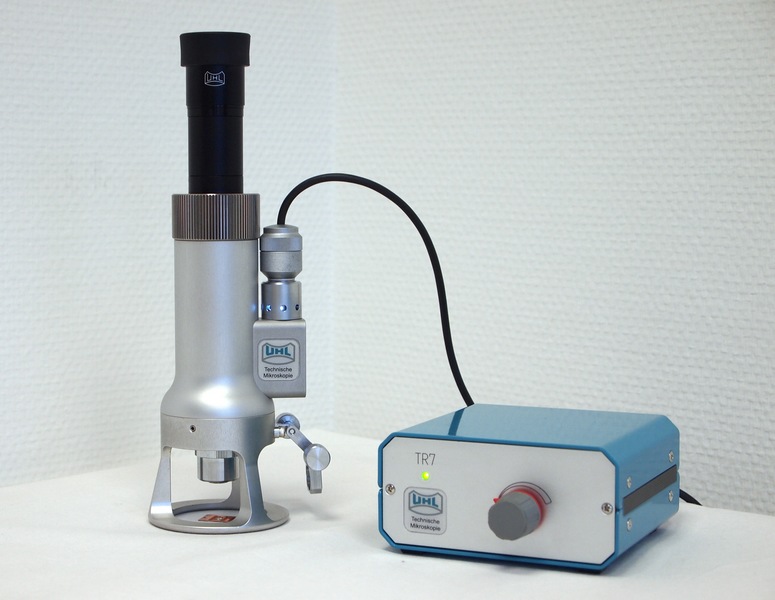

The portable microscope MS1 with stable, eloxal coated aluminium
tube is used for inspection or measurement of products directly at the
customer. The focus is done with a knurled ring. The focus range is ±
4 mm

Ask a question
Description Specification Documentation

Valuable, portable measuring microscope with integrated coaxial and angular incident illumination.

  • steady, anodized aluminium body
  • focussing by knurled ring and fine-pitch thread
  • transformer with LED or battery LED lamp

Options:

  • digital screw micrometre eyepiece for precise distance measurement
    (1 µm resolution)
  • digital z-measurement device for depth measurement, integrated in the body
    (1 µm resolution)
  • high resolution digital USB video camera VM4-USB
  • measuring software VMS-USB
Magnifications Fields of view Measurement range Resolution
20x to 800x 8.9 mm to 0.35 mm Z 8 mm 0.05 mm to 0.0025 mm
