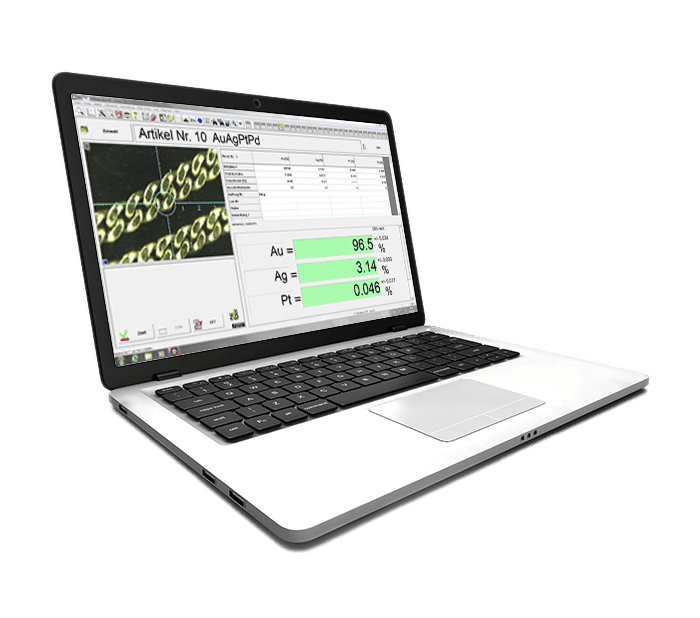

The most powerful software on the market for coating thickness measurement and material analysis using X-ray fluorescence analysis.
Whether incoming inspection, quality control or research laboratory – the requirements for good measurement technology software are as different as the application spectrum of the FISCHERSCOPE® X-RAY instruments. To meet all these requirements, WinFTM® offers exactly the features and functions needed for fast measuring, efficient evaluation and professional documentation of the measurement data.
Simple and guided calibration workflow and Fischer calibration standards with DAkkS certificate
Coating thickness measurement and material composition based on continuously developed fundamental parameter algorithms
Programming and automatic execution of recurring measurement sequences
Extensive statistical evaluations including statistical process control (SPC)
Easy data export to various interfaces, such as quality management systems
Fully customizable reports and creation of individual measurement protocols, with just one click
WinFTM® has advanced image recognition and pattern recognition technology that enables it to automatically identify predefined structures. This allows you to compensate for deviations in positioning when measuring multiple test parts (such as in piece inspection in manufacturing).
Automatic pattern recognition: WinFTM® has advanced image recognition and pattern recognition technology that enables it to automatically identify predefined structures. This allows you to compensate for deviations in positioning when measuring multiple test parts (such as in piece inspection in manufacturing).
Automatic recognition of the material (substance classes): Thanks to intelligent material recognition, different test parts with different compositions and layer thicknesses can be sorted into predefined substance classes. WinFTM® can then automatically load the appropriate calibration and measurement parameters for each test part.
Automated measurement processes: WinFTM® enables the programming and automatic execution of recurring measurement sequences. Even complex measuring processes can thus be executed easily and reliably with a click or a keystroke. Instructions for the operator can be clearly displayed on the screen, which further facilitates operation.
Traceable measuring made easy: Thanks to the intuitive calibration functions of WinFTM® and our extensive Fischer calibration standard portfolio, you get reliable and traceable measurement results. WinFTM® supports standard-based calibration with up to 64 calibration standards per measuring task.
Measuring equipment monitoring: WinFTM® supports you with integrated and fully automatable functions for gauge monitoring. Together with our optionally available measuring device monitoring kit, your measuring device checks itself at defined intervals and reliably documents the results.
Standard free measuring: Thanks to our fundamental parameter algorithms, which have been further developed and optimized over the years, our system enables coating thickness determination and material analysis even without calibration with calibration standards. This saves time and increases flexibility in measuring.
Statistical functions including statistical process control (SPC): WinFTM® offers extensive statistical evaluations such as histograms, probability networks, as well as SPC diagrams including Cp/Cpk calculation. This gives you the possibility to effectively analyze the measurement data and to detect process variations.
Report functions: Our software allows you to easily create protocols with editable protocol header, measurement data, statistical results and more. You can print the reports or export the measurement results in various formats.
Customized measurement protocols: Get the measurement reports with just a few clicks! Thanks to fully configurable templates, you can export measurement results in seconds in the correct format.
