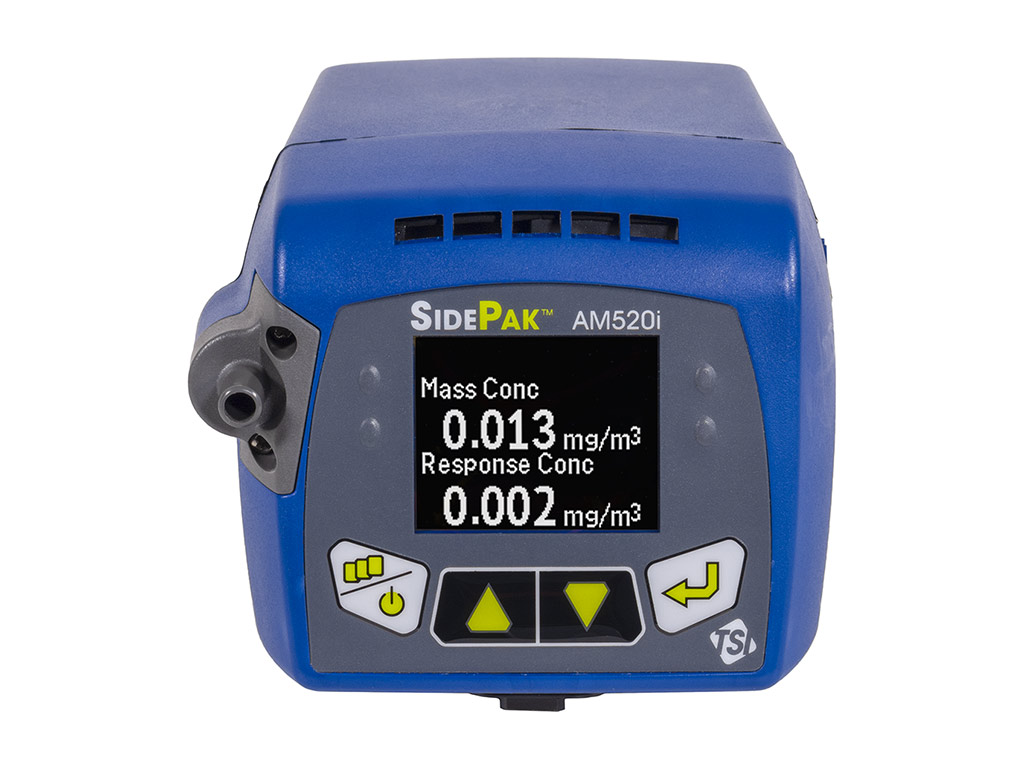

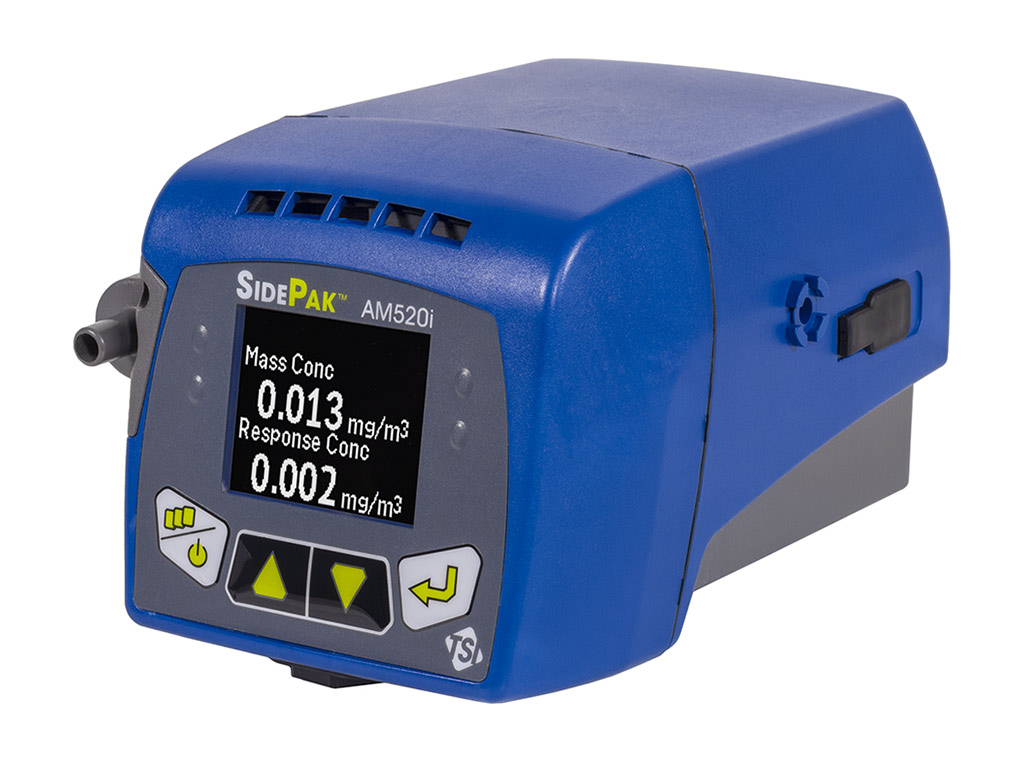

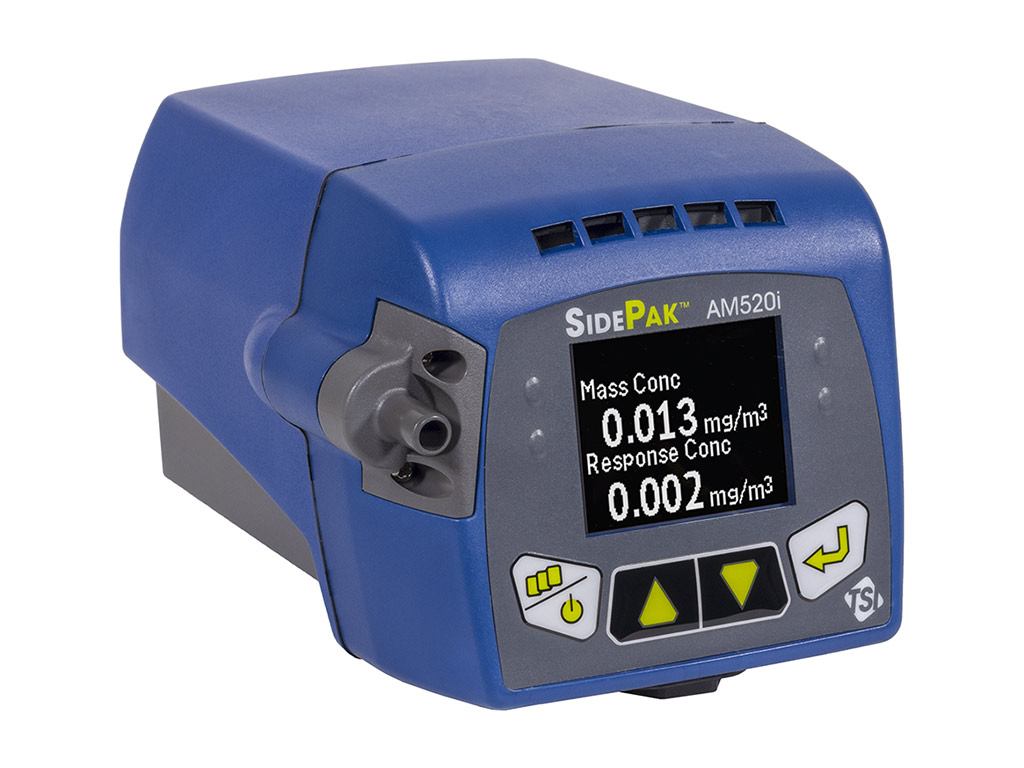

TSI SidePak™ AM520i Personal Aerosol Monitor

The SidePak™ AM520i Personal Aerosol Monitor is a small, single-channel, portable, battery-operated, data-logging, light-scattering laser photometer that provides real-time aerosol mass concentration readings of dusts, fumes, mists, smoke and fog within a worker breathing zone. Newly designed inlet conditioners increase the mass concentration capability and provide size fraction cut points for PM10, PM4 (Respirable), PM5 (China Respirable), PM2.5 , PM1 and 0.8 μm Diesel Particulate Matter (DPM).

The SidePak AM520i has IECEx, ATEX, CSA and IECEx-SIM certifications, meaning it can help you protect workers and maintain compliance in a variety of potentially volatile environments.

• Dual display and data logging of mass concentration and response concentration on one screen (i.e. for respirable silica, welding fume and DPM monitoring applications)
• Stores up to 10 custom calibration factors on the instrument for different applications
• Updates to TrakPro™ v5 Data Analysis Software include:
  • Custom calibration factor calculator to simplify calibration factor process
  • Continued ability to name custom calibration factors and upload them to the instrument
  • Enhanced alarm features to include response concentration alarm value

• IECEx and ATEX certified
• CSA Certifications for North America
• Audible and visual alarms
• 0.8 μm DPM impactor
• PM5 China respirable size fraction impactor
• High capacity battery
• Color OLED display
• Real-time mass concentration measurement and data logging for “in-the-field” data analysis
• Push button menu operation or programmable through newly improved TrakPro™ v5 Software
• User-selectable alarm levels to alert workers to high aerosol concentrations
• Robust impactors enable reliable size fraction measurements at higher aerosol concentrations over longer run times

Industry Applications

• Aerospace
• Bulk Material Handling
• Chemical Manufacturing and Processing
• Confined Spaces
• Mining
• Oil and Gas
• Petrochemical
• Pharmaceutical

Kits Include

• Soft single-unit carrying case
• 100-240 VAC power supply
• USB cable
• Impactor kit
• Dorr-Oliver Cyclone kit
• DPM cyclone kit
• Screwdriver
• Micro USB cable
• Zero filter
• Sample tube
• Calibration certificate
• User guide
• Quick reference card
• 2-year warranty

Product Certifications

The SidePak AM520i Personal Aerosol Monitor holds the following IECEx, ATEX, CSA, and IECEx-SIM certifications.

• CSA North American Safety: 70177293
• European-EU ATEX: Sira 18ATEX2150X Issue 3
• International IECEx:
  • CSA-Sira: IECEx SIR 18.0043X Issue 2
  • Simtars: IECEx SIM 19.0009X-1

Download Software

• To download applicable software please visit Casella’s Software & Firmware Page.
