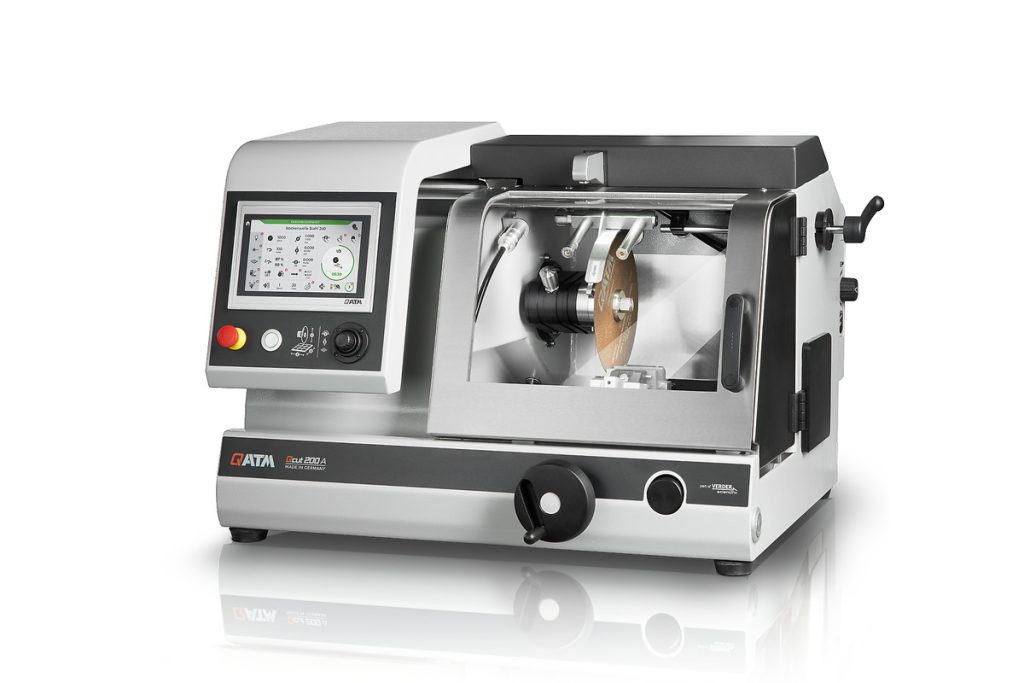

QATM Precision cut-off machine Qcut 200 A

The Qcut 200 A is a precision cut-off machine with up to 3 automatic axes for use with cut-off wheels up to 203 mm / 8‘‘ in size.

The Qcut 200 A is a compact, precision cut-off machine that offers the highest possible flexibility and use of space, with up to three automatic axes (X, Y, Z) and numerous cutting functions. Thanks to its modular design, the Qcut 200 A can be optimally equipped with numerous options and suitable clamping tools.

Ask a question

Description Features Cutting without restrictions

Precision cut-off machine Qcut 200 A

Product Advantages

Fully automatic precision axes with backlash free bearings
New cooling system with approx. 25% higher flow rate than comparable machines which reduces the cut-off wheel wear by up to 15%
Automatic cleaning function
New software functions for grinding applications

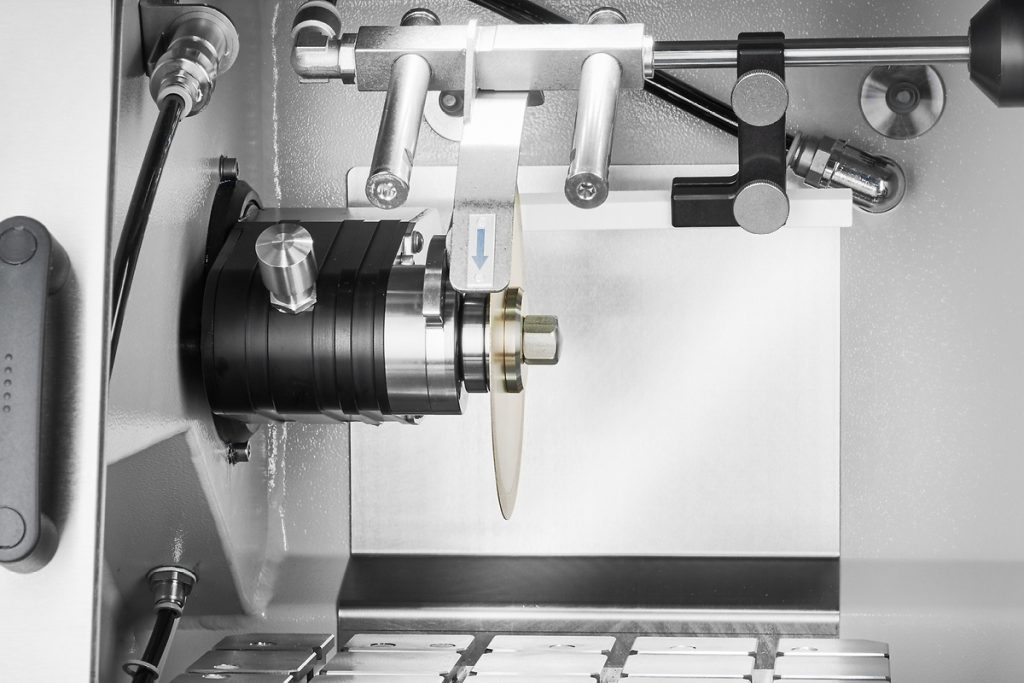

Simplified cut-off wheel change

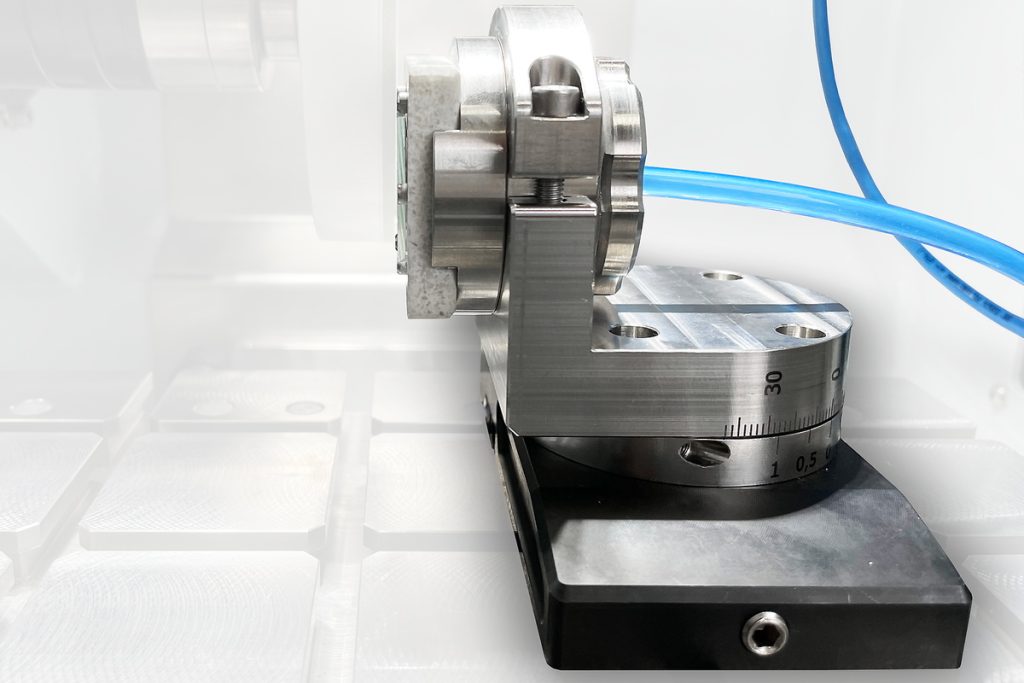

New modular adaptable turning device

Highest demands of safety

Due to the enabling switch, the machine can only be positioned via the two-hand control when the door is open.
The risk of crushing for the machine operator is virtually eliminated

Intelligent component detection

Proven automatic component detection and a new type of exit detection (auto-stop function)
Start and end points of the cutting process are automatically detected and process times are shortened

Highest precision thanks to robust design

Durable and low vibration thanks to stable construction

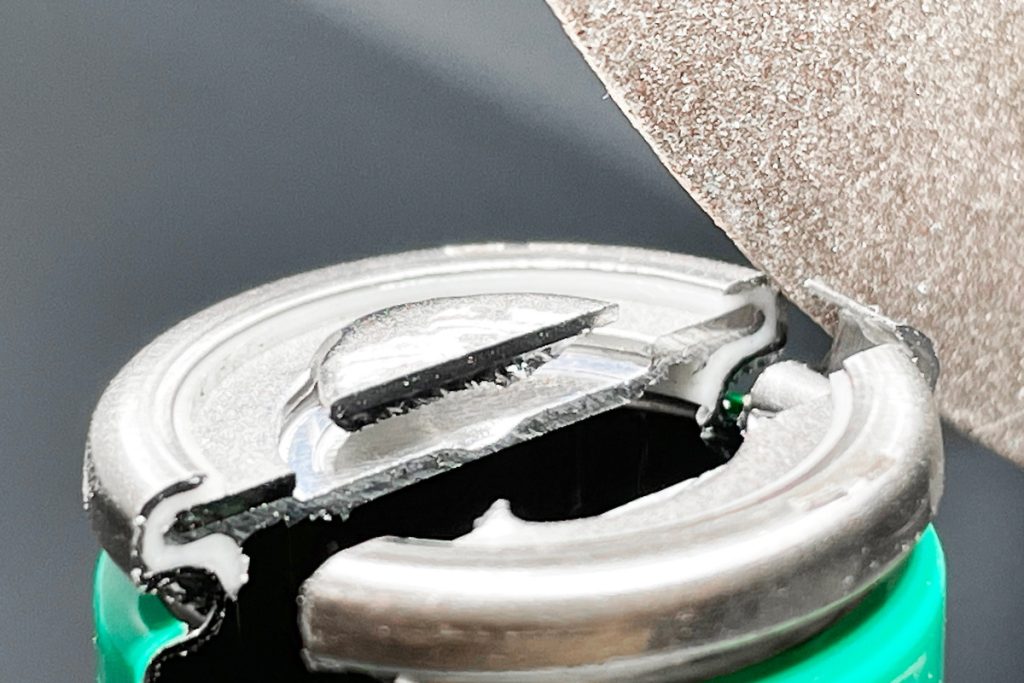

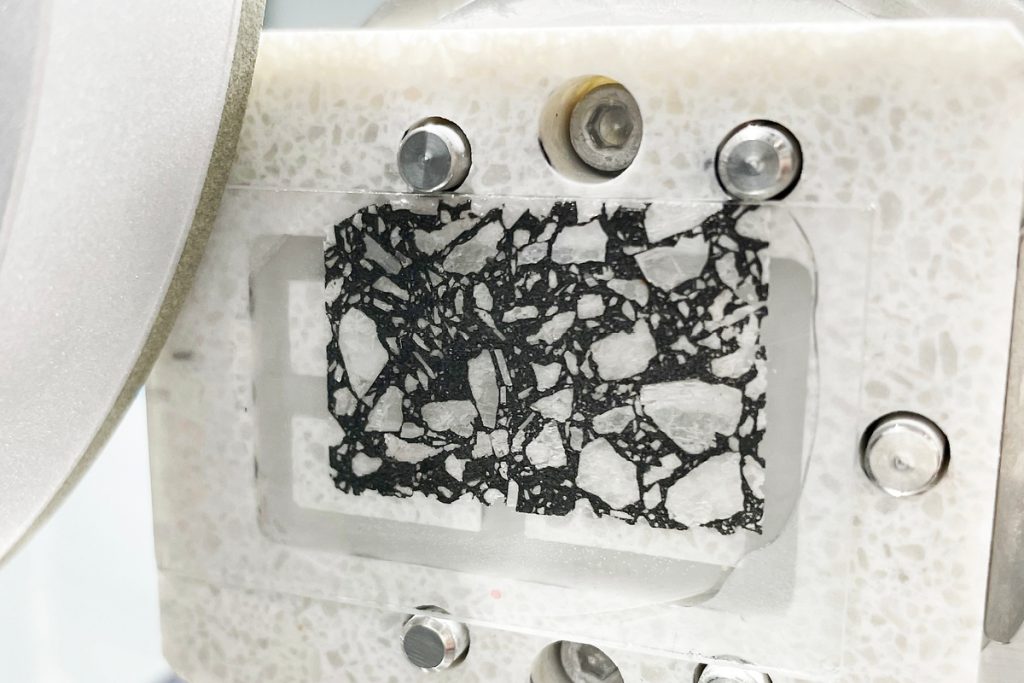

Cutting or grinding (using a cup wheel) of delicate samples with maximum precision
Excellent access to the cutting chamber thanks to large sliding door

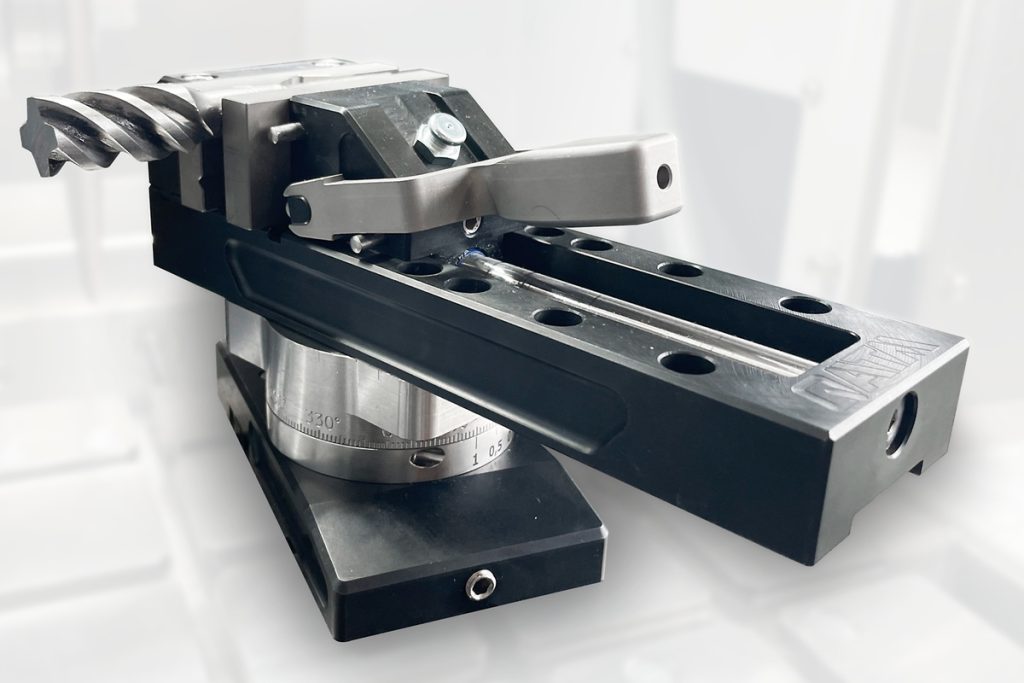

Quick and secure attachment of versatile clamping devices on the large machine table

Intuitive and simple operation

Large 7″ industrial touchscreen with ergonomic user guidance
Easy operation of the user-friendly software
Comfortable movement of automatic axes using the Joystick

Flow monitoring

Optional flow monitoring ensures constant cooling of sensitive samples even during long cutting processes
The cutting process is automatically interrupted as soon as a critical threshold value is reached

Automatic cleaning function

Fully automatic machine cleaning thanks to spiral nozzles in the cutting chamber
Cleaning can be switched on individually and starts automatically after each cut if required
Clear view during the cutting process: cleaning can be activated during the running process

Extensive cutting programs

Depending on the geometry of the component, the travel or chop cut is used to minimize the contact area to the cut-off wheel
Cut the workpiece layer by layer and optimize the angle of action using the step cut functions – particularly suitable for solid material

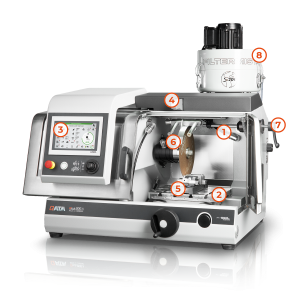

QATM Qness Qcut 200A
