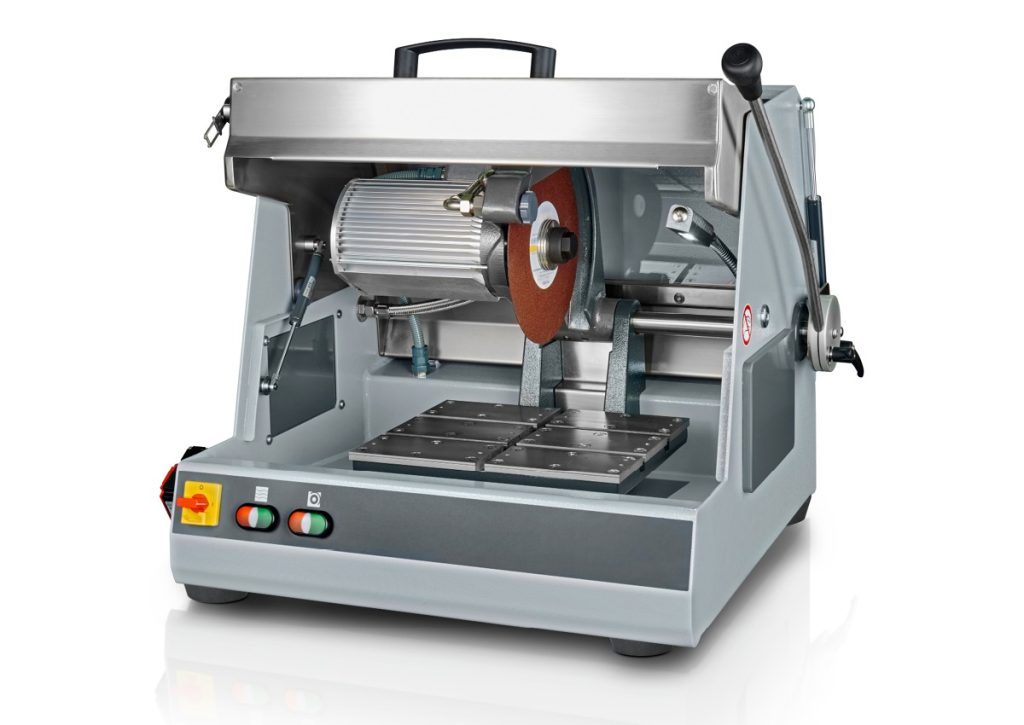

The Qcut 250 M is an especially user-friendly wet abrasive cutting machine with manual cut-off. Opening the machine folds away the hood to the inside so that the whole cutting chamber is easily accessible. The round window opens a wide field of view during the cutting process.

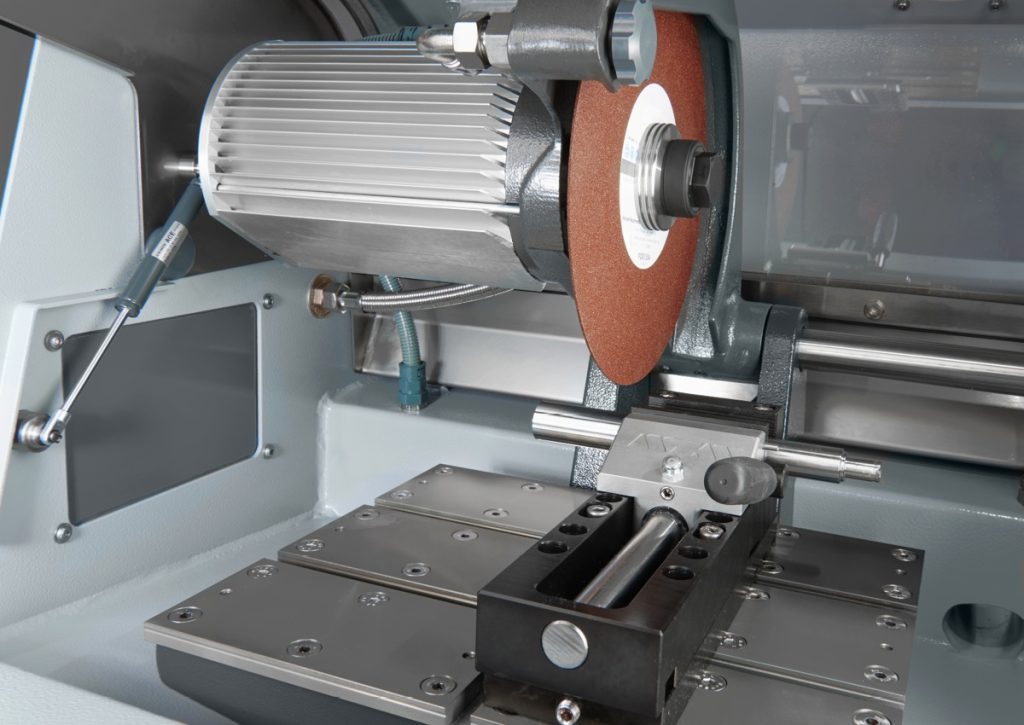

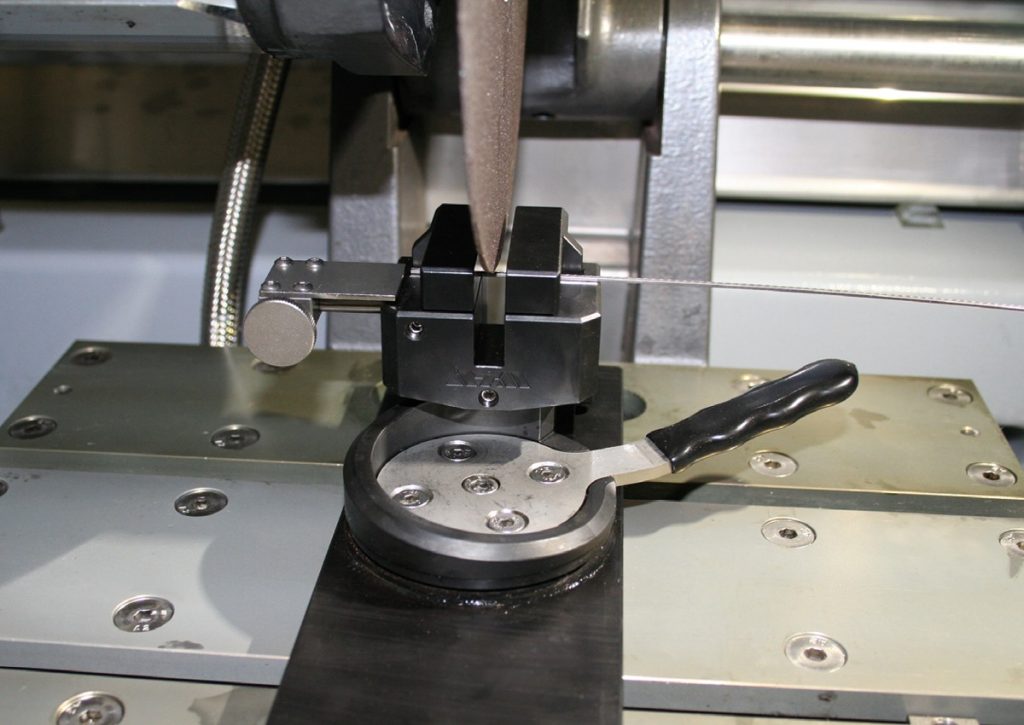

The cutting wheel cooling is integrated directly into the wheel guarding cover. The large, stainless table is equipped with replaceable wearing plates. Transverse grooves allow optimized alignment of clamping vices (e. g. clamping vice 80).

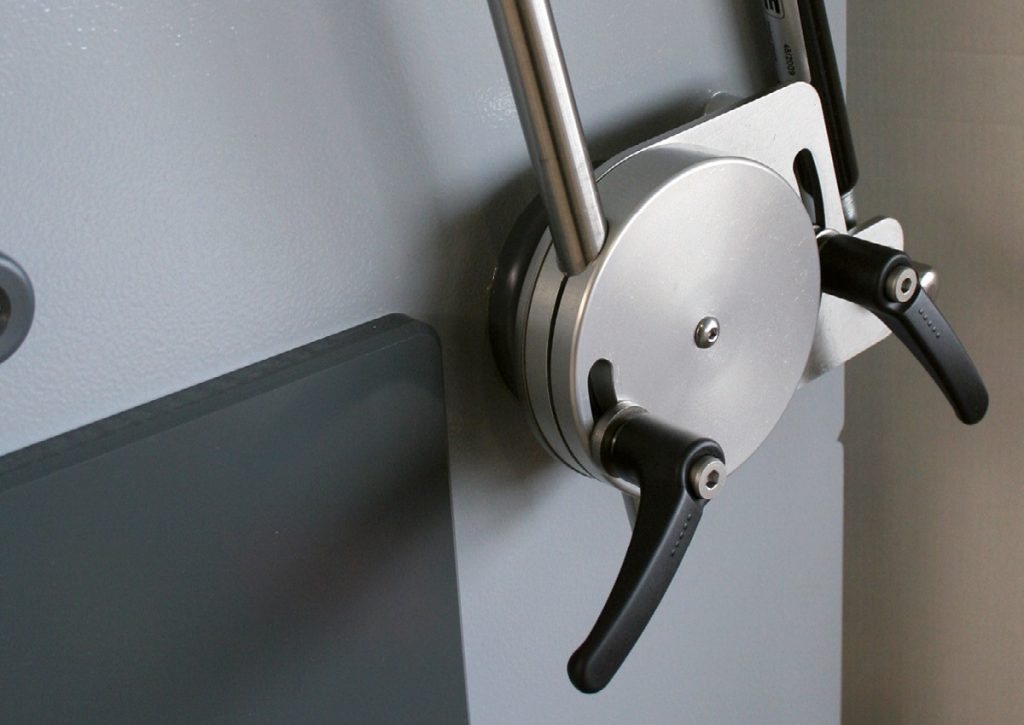

The manual cutting movement of the Y-axis is executed precisely and jerk-free via lever. Length and angle of the lever are adjustable. Further, the cutting depth can easily be adjusted by using a limiter.
Through the large rounded window, the cutting chamber is comfortably visible. For direct lighting, the Qcut 250 M can be equipped with a flexible LED light.
The integrated standstill monitoring allows opening only when the cutting wheel is not rotating.
| Cutting wheel | up to Ø 250 mm/10″ |
| Max. cutting capacity | Ø 55 mm / Ø 90 mm (up to 25 mm length) |
| Wheel flange size | Ø 32 mm |
| Y-axis (vertical movement) | 145 mm |
| Table WxD | 350 x 288 mm stainless |
| T-slot | 12 mm |
| Connection power | 4.5 kVA |
| Drive power (main drive) | 3 kW S6 40% |

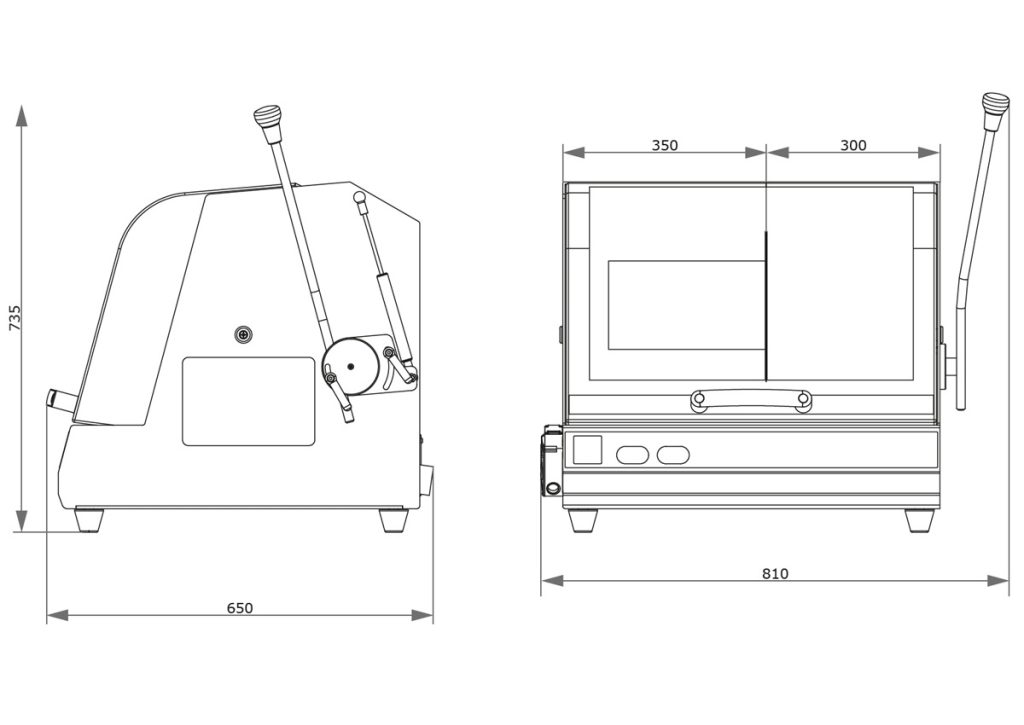

| W x H x D | 810 x 735 x 650 mm |
| Weight | ~ 75 kg |
