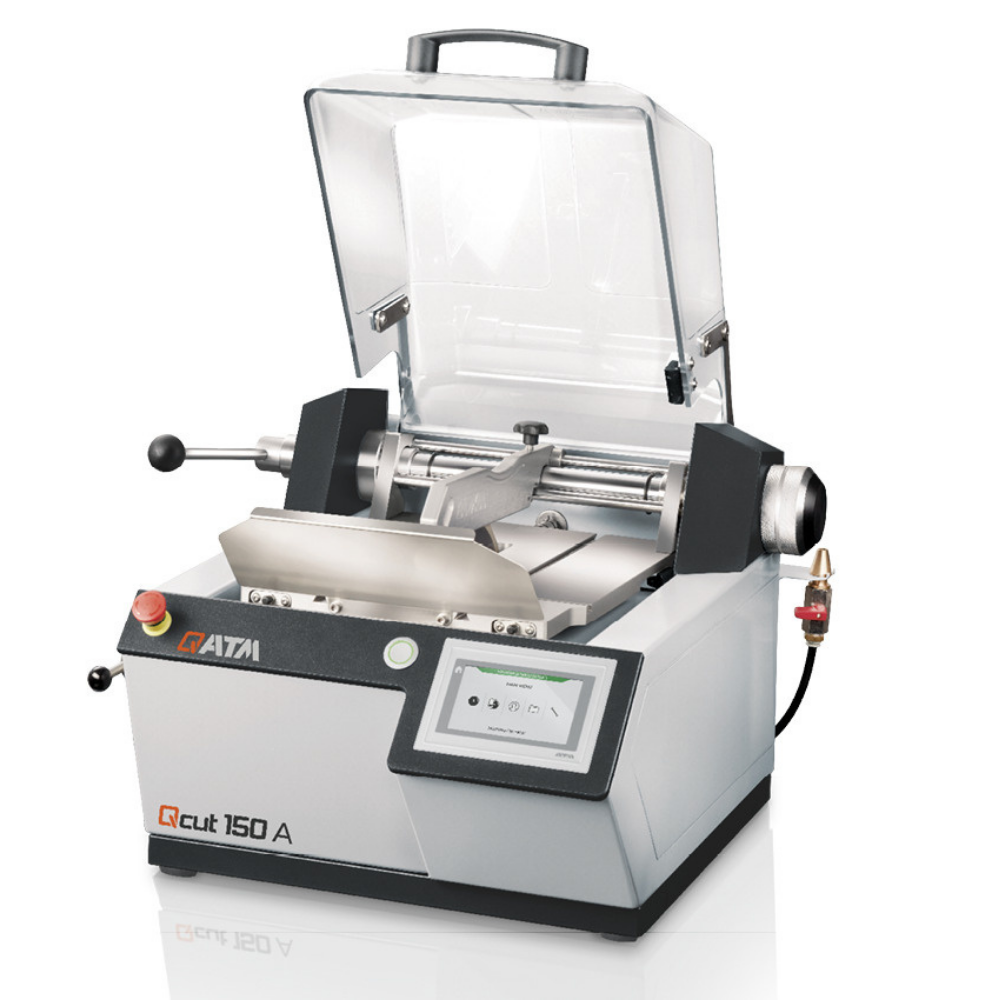

The Qcut 150 A is a flexible precision cut-off machine which is used with cut-off wheels up to a diameter of 203 mm/8”.

The compact benchtop model performs automatic as well as manual cuts with the ergonomic lever. The optional sample holder arm with built-in force sensor ensures low-deformation cuts due to a precise force-controlled feed rate.

Ask a question
Description Features Technical Data

Precision cut-off machine Qcut 150 A

Product Advantages

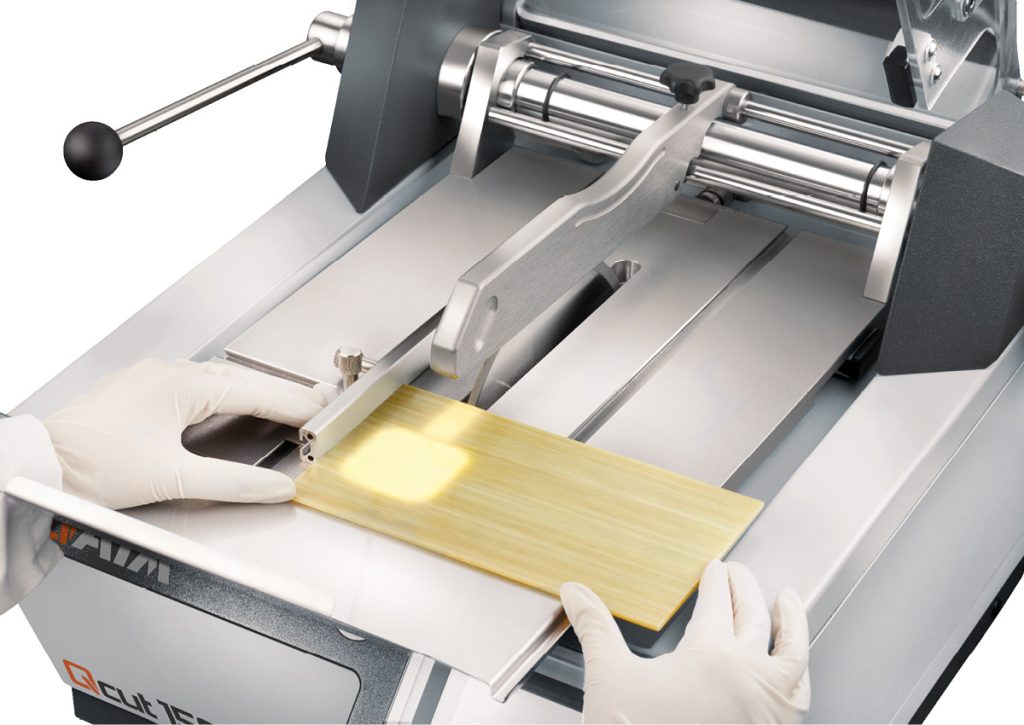

  • Up to 5 different modes: manual, automatic feed, force-controlled feed, grinding mode, cutting with table attachment (depending on machine configuration)
  • Manual cross feed
  • Zone cutting function

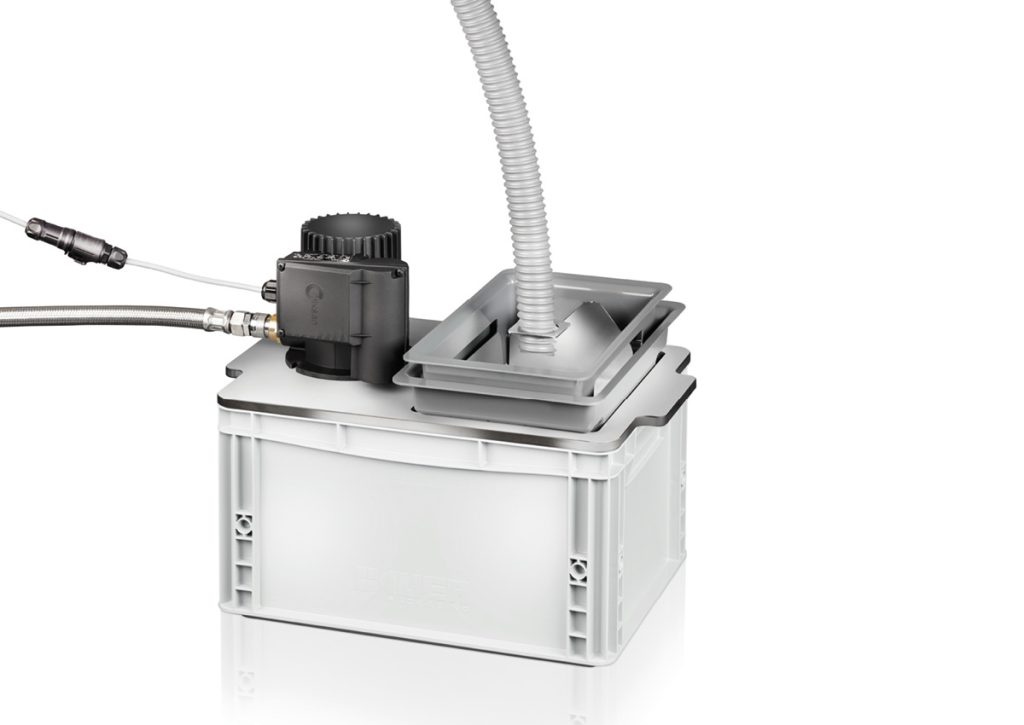

  • 4 different cooling systems availabe
  • Dressing device
  • Intuitive QATM software with integrated database

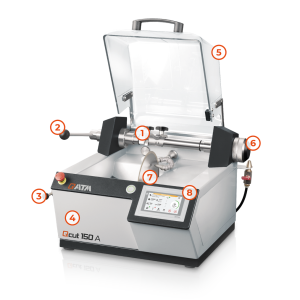

Qcut 150 A Superiority in detail

1. Sample holder arm

  • Tool-free quick-clamping system for mounting :
    • Precision clamping devices
    • Rotation device
    • Vacuum clamping unit
  • Max. sample size: Ø 40 mm

2. Y-axis

  • Manual or automatic feed
  • Travel: 120 mm
  • Feed rate: 0.01–20 mm/s (automatic)
  • Cutting force variably adjustable: 0–10 N (optional)

3. Dressing device

  • For sharpening diamond cutting and grinding wheels
  • Can be operated manually from the outside

4. Robust machine body

  • Sturdy and corrosion-resistant stainless steel housing
  • Powder-coated, for easier cleaning

5. Transparent hood

  • Swivel hood with free access to the cutting chamber
  • Integrated safety switch

6. Z-axis

  • Manual cross feed
  • Travel: 25 mm
  • Position shown on the display
  • Positioning accuracy: 0.005 mm

7. Cut-off Wheel drive

  • Cut-off wheel size: Ø 75–203 mm / 8″
  • Drive power: 0.37 kW (S1)

8. Ergonomic Control panel

  • 4.3″ industrial touchscreen
  • Intuitive interface displaying process data
  • Storage of up to 200 user-defined cutting methods
  • User account management

Precision cut-off machine Qcut 150 A Technical Data

Cut-off wheel ø 75 – 203 mm/8″
Variable speed 150 – 3000 rpm
Max. cutting capacity ø 40 mm
Arbour size ø 12.7 mm
Variable adjustable cutting force 0 – 10 N
Feed 0,01 – 20 mm/s (automatic)
Y-axis (vertical movement) 120 mm (manual /automatic)
Precision Y-axis 0.1 mm
Z-axis manual (parallel cut) 25 mm (manual)
Precision Z-axis 0.005 mm
Motor power 0.37 kW (S1)
Connection power 0.75 kVA
W x H x D 545 x 391 x 566 mm
Weight ~ 45 kg (depends on equipment)Precision cut-off machine Qcut 150 A
