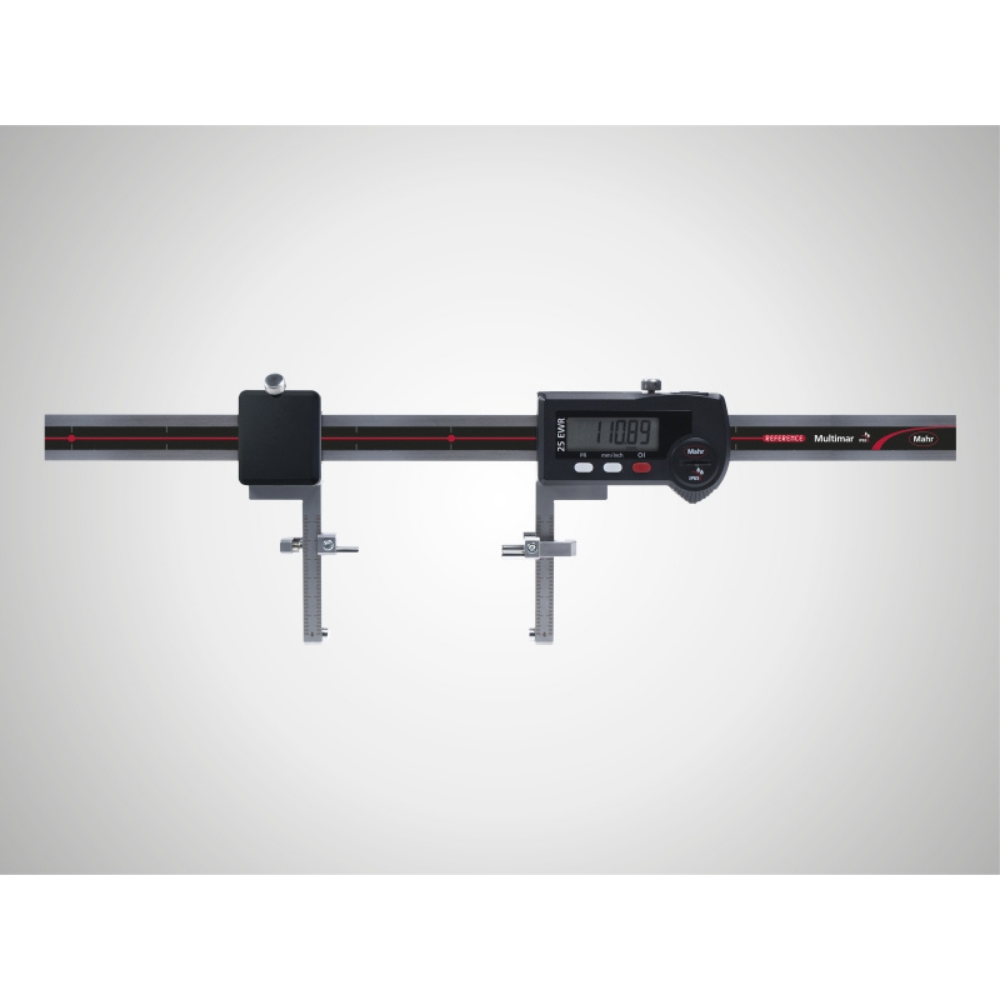

MAHR Multimar 25 EWR Digital universal calipers

MAHR Multimar 25 EWR Digital universal calipers
MAHR Multimar 25 EWR Digital universal calipers

MAHR Multimar 25 EWR Digital universal calipers

For easy adaptation to individual measuring tasks, optional accessories include:

  • Interchangeable measuring arms
  • Contact blocks
  • Stop elements
Ask a question
Description Iespējas Specifikācija Video

Multimar 25 EWR Digital universal calipers

  • The digital display is always in the operator’s line of vision due to the patented mounting fixture of the measuring elements provided on the upper and lower longitudinal face of the arm holders
  • Application range can be extended by turning the measuring arms
  • The two arm holders can be moved along the rail, providing a well-balanced weight distribution, even with small dimensions
  • Hardened stainless steel slide and rail

Technical data

Order no.Application range outsideError limit (mm)
4119000
0 – 300
0.03 mm
4119001
0 – 600
0.03 mm
4119002
0 – 1000
0.04 mm
4119003
0 – 1250
0.04 mm



Applications

  • For measuring:
  • Outside and inside diameters
  • Centering shoulders
  • Narrow collars
  • External and internal tapers
  • Dovetails
  • Grooves
  • Distances between hole centers

Functions

  • ON/OFF
  • AUTO-ON / OFF
  • RESET (set display to zero)
  • mm/inch
  • PRESET (for entering a numerical value)
  • LOCK function (key lock)
  • DATA (data transmission via connection cable)
