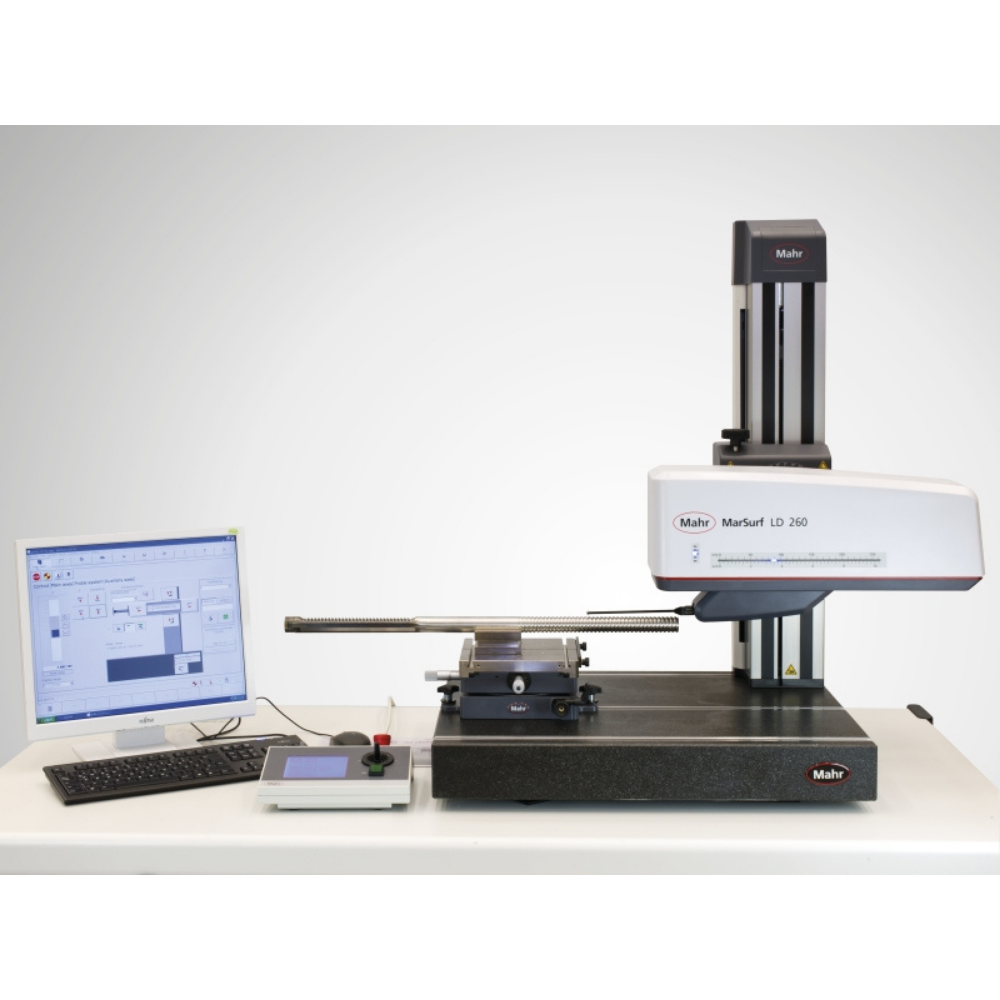

MAHR MarSurf LD 130 Combined contour and surface measuring station

MarSurf LD 130 / LD 260. A step into a new dimension

Combined contour and roughness measurements in just one step comes courtesy of proven cutting-edge technology from Mahr metrology. The MarSurf LD 130 and MarSurf LD 260 measuring stations have been systematically developed to draw on the experience from the first generation of equipment.

Ask a question

Description Iespējas Specification Video

MarSurf LD 130 Combined contour and surface measuring station

Roughness and contour in just one step
High measuring and positioning speed cuts measuring times dramatically
Innovative probe system removal
Quick and reliable probe arm exchange with simultaneous probe arm detection by magnetic holder
Long measuring length up to 260 mm (MarSurf LD 260) with a measuring stroke of 13 mm (100 mm probe arm length) or 26 mm (200 mm probe arm length)
Modular construction for ease of maintenance
No need to fully dismantle the measuring stand for maintenance

	LD130-ST500CNC	6720821 – DRIVE UNIT LD130 SET
Resolution	0.8 nm	0.8 nm
Start of traversing length (in X)	0.1 mm	0.1 mm
End of traversing length (in X)	130 mm	130 mm
Positioning speed	0.02 mm/s to 200 mm/s	0.02 mm/s to 200 mm/s
Measuring speed	0.02 mm/s to 10 mm/s; for roughness measurements 0.1 mm/s to 0.5 mm/s is recommended	0.02 mm/s to 10 mm/s; for roughness measurements 0.1 mm/s to 0.5 mm/s is recommended
Measuring range mm	13 mm (100 mm probe arm) 26 mm (200 mm probe arm)	13 mm (100 mm probe arm) 26 mm (200 mm probe arm)
Traversing lengths	0.1 mm – 130 mm	0.1 mm – 130 mm
Measuring force (N)	0.5 mN to 30 mN, software adjustable	0.5 mN to 30 mN, software adjustab
