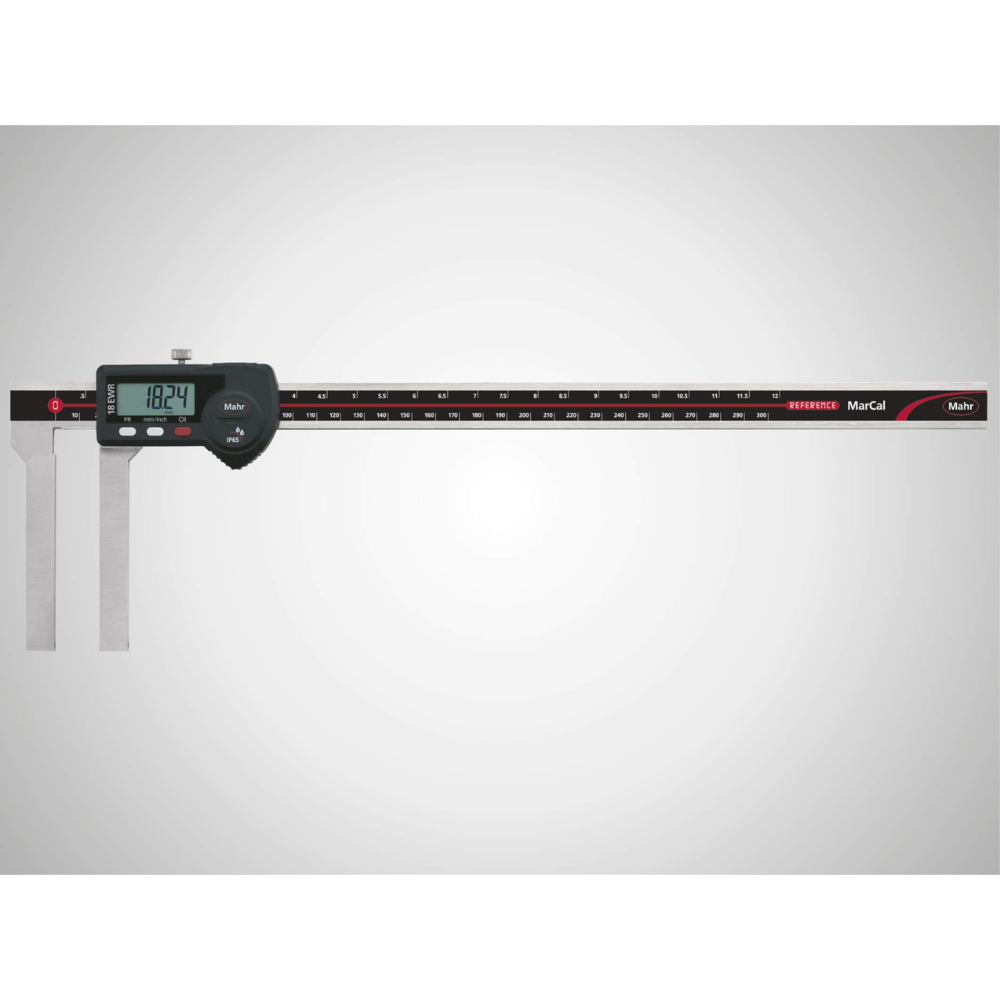

MAHR MarCal 18 EWR-V Digital universal caliper, IP 65, Data interface

MAHR MarCal 18 EWR-V Digital universal caliper, IP 65, Data interface
MAHR MarCal 18 EWR-V Digital universal caliper, IP 65, Data interface

MAHR MarCal 18 EWR-V Digital universal caliper, IP 65, Data interface

  • High contrast analog display
  • Locking screw above
  • Immediate measurements due to the Reference System
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide
  • Slide and beam made of hardened stainless steel
  • Measuring faces for outside measurement
  • Thread M2.5 measuring jaws to accommodate measuring anvils for internal and external measurements
  • USB
  • Opto RS-232C
  • Digimatic
  • wireless
  • IP 65
  • battery
  • case
  • instruction manual
  • anvils
  • Battery life approx. 3 years
Height of digits
  • 12.5 mm
Ask a question
Description Iespējas Specifikācija Video

Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchError limit (mm)Error limit inchesStandard
4112722
0 – 300
0 – 12″
0.01 / .0005″
0.06 mm
.0025″
Factory standard
4112723
0 – 500
0 – 20″
0.01 / .0005″
0.08 mm
.003″
Factory standard



Functions

  • ON/OFF
  • AUTO-ON / OFF
  • RESET (set display to zero)
  • PRESET (for entering a numerical value)
  • mm/inch
  • LOCK function (key lock)
  • DATA (data transmission via connection cable)
