MAHR MarCal 16 EWR-V Digital universal caliper, IP 67, Data interface

MAHR MarCal 16 EWR-V Digital universal caliper, IP 67, Data interface
MAHR MarCal 16 EWR-V Digital universal caliper, IP 67, Data interface gallery
MAHR MarCal 16 EWR-V Digital universal caliper, IP 67, Data interface
MAHR MarCal 16 EWR-V Digital universal caliper, IP 67, Data interface gallery

MAHR MarCal 16 EWR-V Digital universal caliper, IP 67, Data interface

  • High contrast analog display
  • Locking screw above
  • Lapped guideway
  • Measuring blade for inside measurements
  • Slide and beam made of hardened stainless steel
  • Step measuring function
  • Immediate measurements due to the Reference System
  • Raised guideway for the protection of the scale
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide
  • USB
  • Opto RS232C
  • Digimatic
  • Wireless
  • IP 67
  • battery
  • instruction manual
  • case
  • Battery life approx. 3 years
Height of digits
  • 8.5 mm
Ask a question
Description Iespējas Specifikācija Video

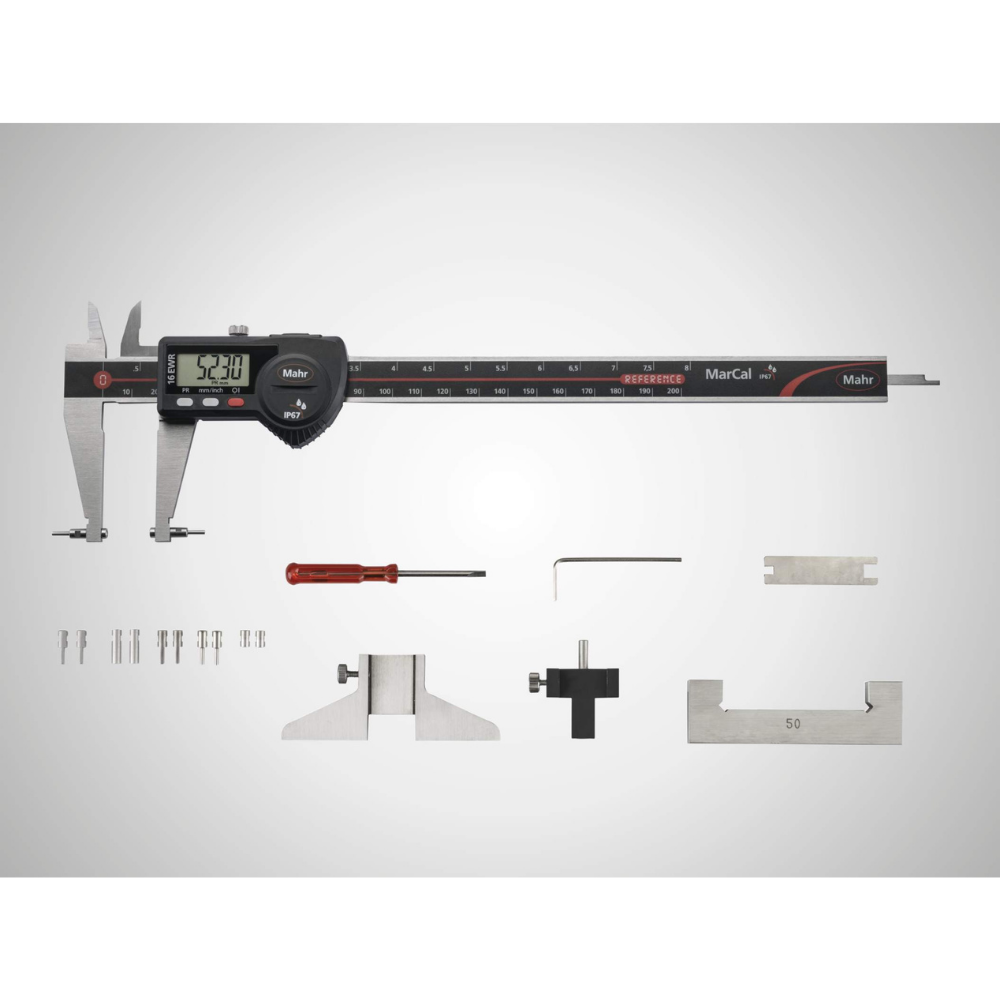

MarCal 16 EWR-V Digital universal caliper



Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchError limit (mm)Error limit inchesStandardDepth Rod
4118807
0 – 200
0 – 8″
0.01 / .0005″
0.03 mm
.001″
DIN 862
rectangular
4118808
0 – 200
0 – 8″
0.01 / .0005″
0.03 mm
.001″
DIN 862
rectangular



Functions

  • AUTO-ON / OFF
  • DATA (data transmission via connection cable)
  • ON/OFF
  • PRESET (for entering a numerical value)
  • RESET (set display to zero)
  • mm/inch
  • LOCK function (key lock)
