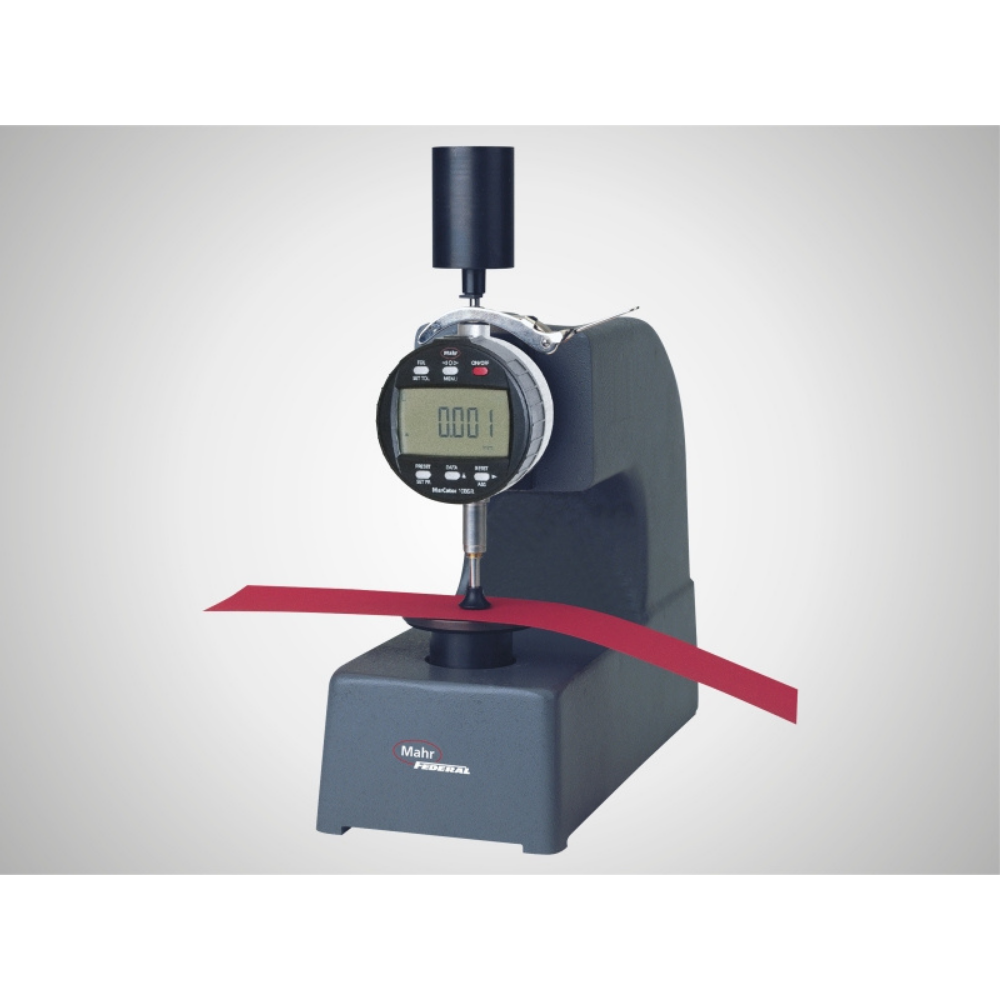

MAHR MaraMeter 57B Thickness gage for measuring wall thickness of wire insulation

Description Iespējas Specifikācija Video

Using the basic design of the Model 57B-13 (Model 57B-13M — Metric) gage, the lower contact is PT-103, 1.10 mm / .043” diameter rod, mounted horizontally
Upper contact is a flat chisel contact , in line with the rod
By slipping tubular parts onto the lower contact, the gage can measure the wall thickness of the tube
An auxiliary weight on the indicator provides a total dead weight load of 25 grams
Digital indicator includes integrated wireless transmitter

MaraMeter 57B-13 Portable thickness gages

Order no.	Product type	Measuring range inch	Throat depth mm	Graduation value inch	Measuring force
2050980	57B-13	0 – .30″	102 mm	.0005″	0.25 N

Order no.	Product type	Measuring range inch	Measuring range mm	Throat depth mm	Measuring force
2057550	XLI-57B-13	0 – .30″	0 – 7.62	102 mm	0.25 N

Order no.	Product type	Measuring range mm	Throat depth mm	Graduation value mm	Measuring force
2050981	57B-13M	0 – 7.6	102 mm	0.01 mm	0.25 N
