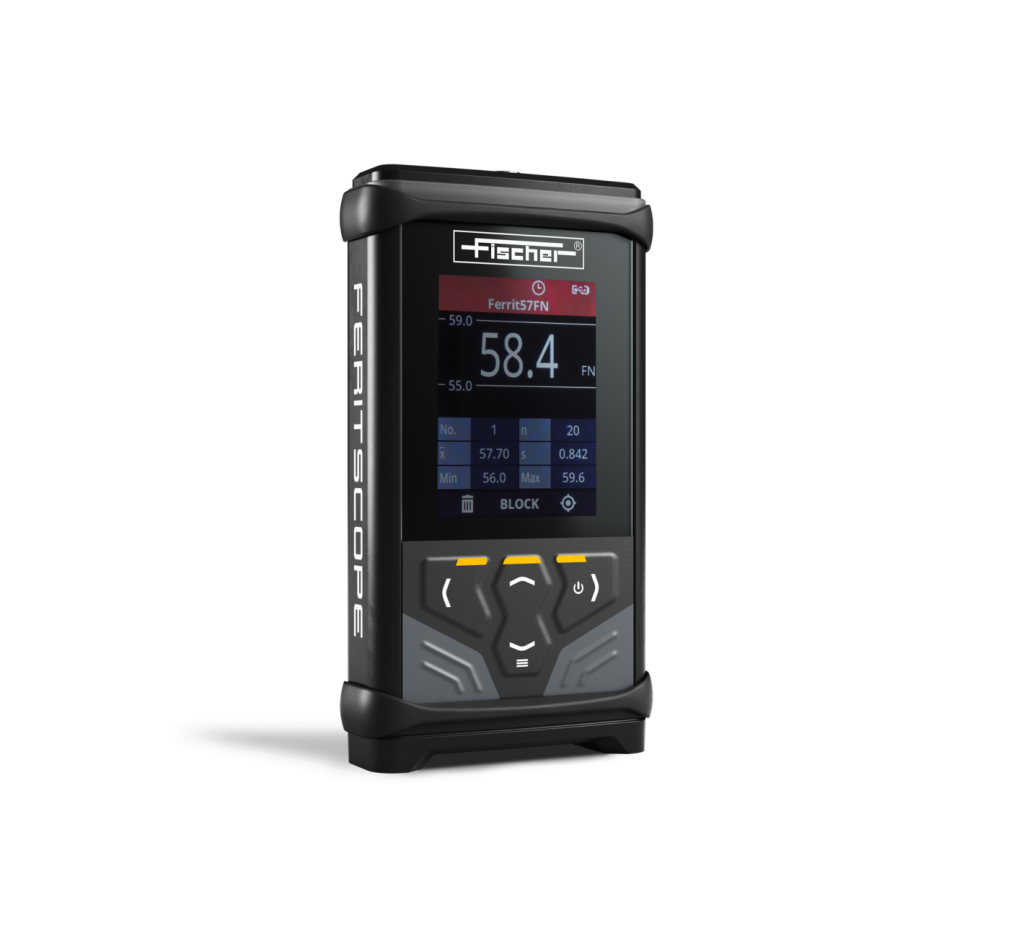

Helmut-Fisher FERITSCOPE® DMP®30

The FERITSCOPE® DMP30 allows you to measure ferrite content in a reliable, tactile, and non-destructive way.

Ask a question

Description Features Application

Unbeatable in tactile ferrite and martensite content measurement.

Extensive functionalities packed in a robust and high-quality all-aluminum housing with a modern design and paired with our intuitive FISIQ® T software: The FERITSCOPE® DMP®30 is specially engineered for measuring ferrite and martensite content in chemical plants, energy plants or process plants, even in hard-to-reach places.

Digital probe.

Fully digitized probe for the most demanding measuring tasks

Full measuring control.

Feedback via light, sound and vibration whether measured values are within tolerance

Powerful software.

Automatic device recognition, easy data export and comprehensive reporting

Perfect fit.

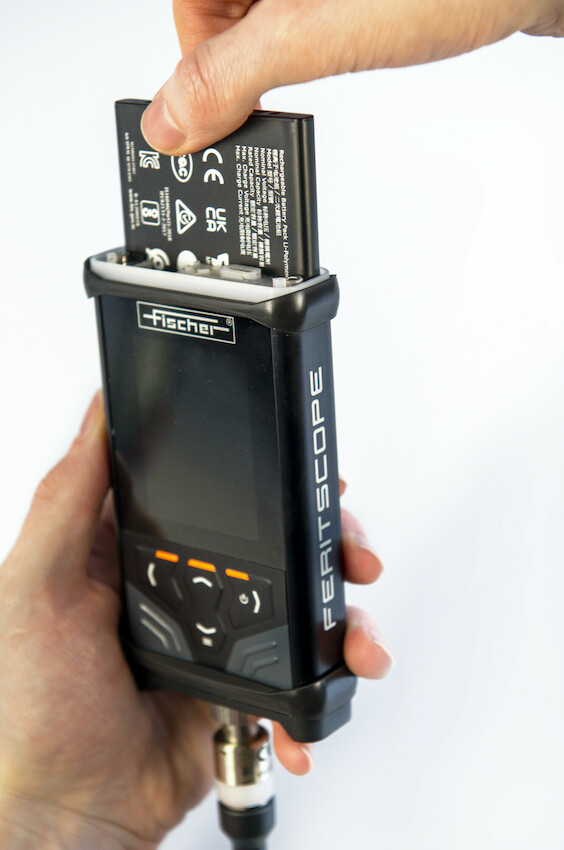

Measure 24/7 due to quick and easy battery change

Built to last.

Next level quality and durability thanks to all-aluminum housing

Backward compatible.

Use your existing Fischer probes thanks to exchangeable adapter

Replaceable Li-ion battery for > 24 h operating time

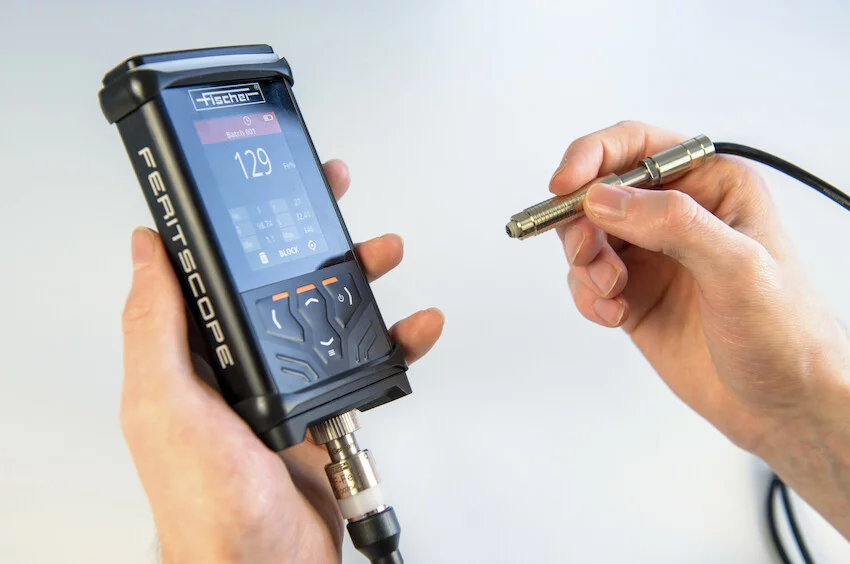

Digital probes available for a wide range of applications, analog probes backwards compatible thanks to F-adapter
Measuring range: 0.1 – 80% Fe or 0.1 – 110 FN
Measured value memory: 250,000 in 2,500 applications
Automatic device detection and easy data transfer via USB-C and Bluetooth
Robust aluminum housing with protection class IP64
Most powerful software in tactile coating thickness measurement: FISIQ® T
Measuring method: Magnetic inductive

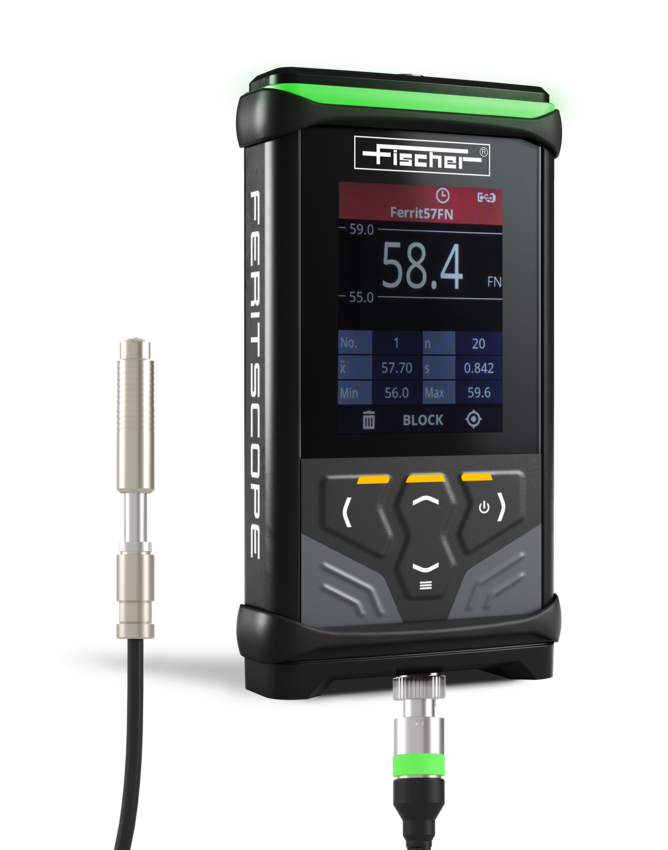

Limit value monitoring via light, sound and vibration

Determining the delta ferrite content in austenitic and duplex steels
Determining the proportion of deformation martensite in austenitic materials

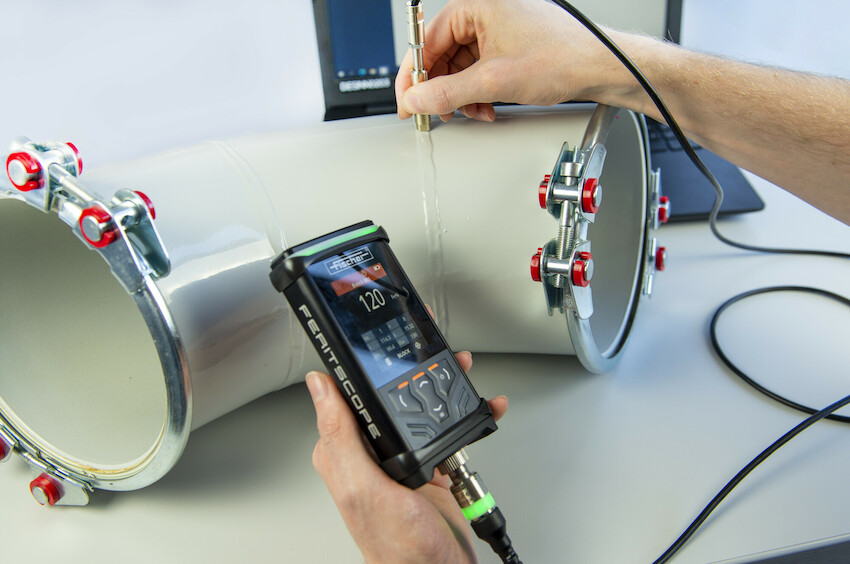

Detecting weld seams in polished surfaces
Determining the ferrite content distribution along a weld seam
