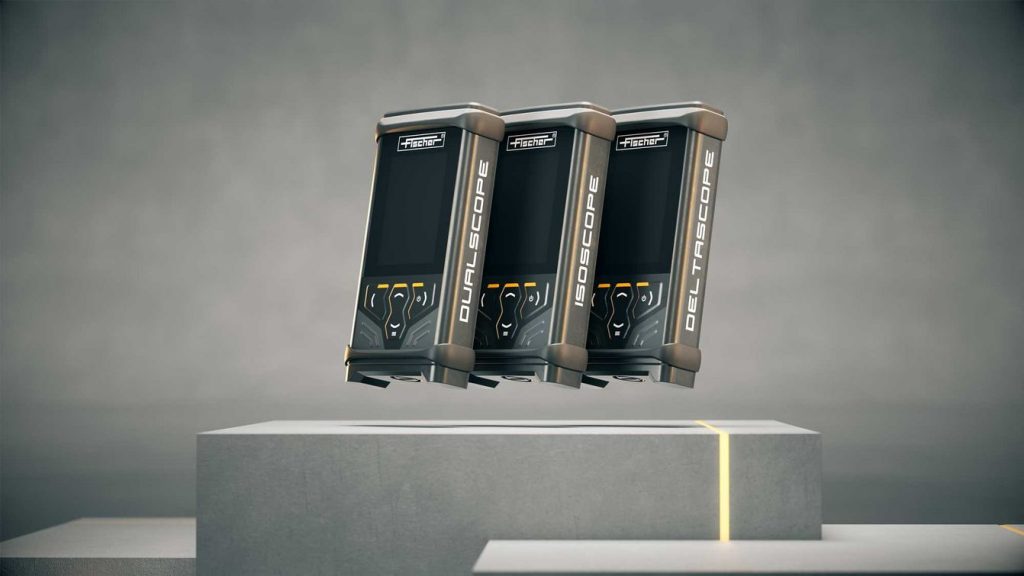

Helmut-Fisher DMP®10-40 series

The next level of tactile coating thickness measurement.

The compact handheld gauges of the DMP® 10-40 series are versatile and can be used for a wide range of applications, especially in the area of quality assurance. With a robust and ergonomic design, extensive functions and a wide range of probes, these flexible devices are the perfect solution for tactile and non-destructive coating thickness or dry film thickness measurement on ferrous and non-ferrous base materials.

• Built to last.

Next level quality and durability thanks to all-aluminum housing

• Digital probes.

Fully digitized probes for the most demanding measurement tasks

• Backward compatible.

Use all of your existing Fischer probes thanks to exchangeable adapter

• Perfect fit.

Measure 24/7 due to quick and easy battery change

• Full measuring control.

Feedback via light, sound and vibration whether measured values are within tolerance

• Powerful software.

Automatic device recognition, easy data export and comprehensive reporting

• Test method: Magnetic induction and amplitude-sensitive eddy current method
• Digital probes available for a wide range of applications, analog probes backwards compatible thanks to F-adapter
• Measuring range: Depending on the combination of coating and base material and the used probe
• Automatic device detection and easy data transfer via USB-C and Bluetooth, depending on the device
• Measured value memory: 10,000 in one batch or 250,000 in 2,500 batches, depending on the device
• Robust aluminum housing with protection class IP64
• Most powerful software in tactile coating thickness measurement: FISIQ® T
• Replaceable Li-Ion battery for > 24 h operating time

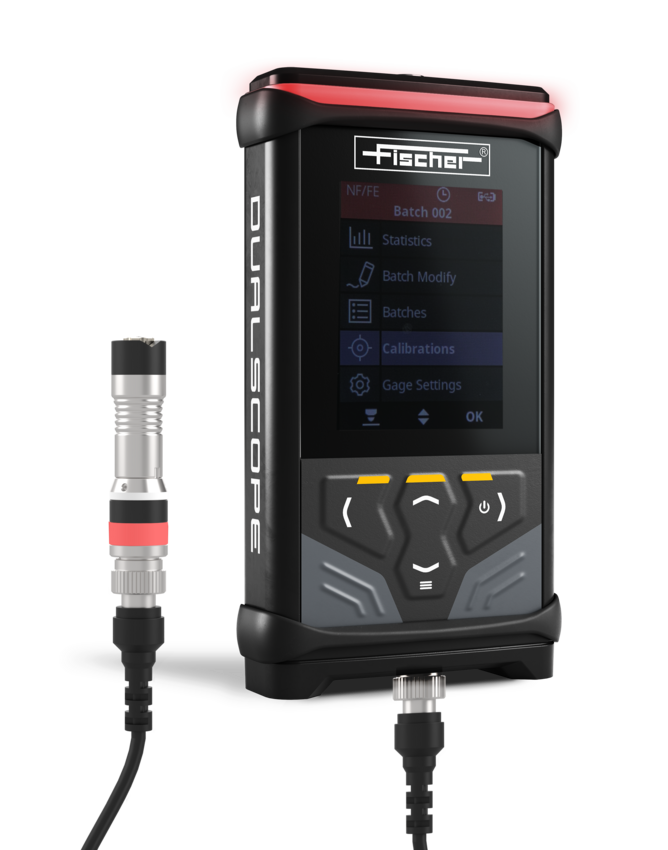

• Limit monitoring via light, sound and vibration, depending on the device

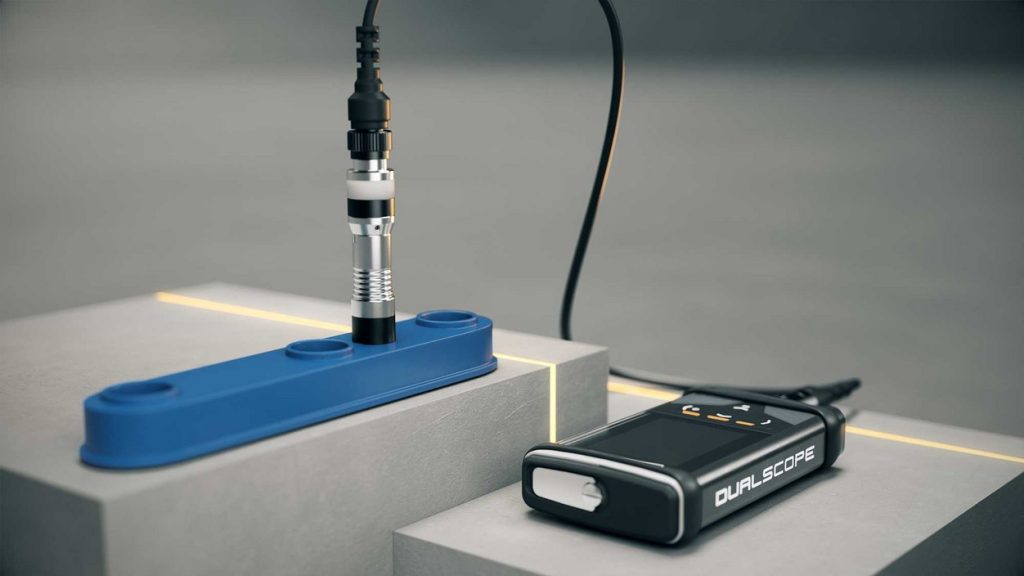

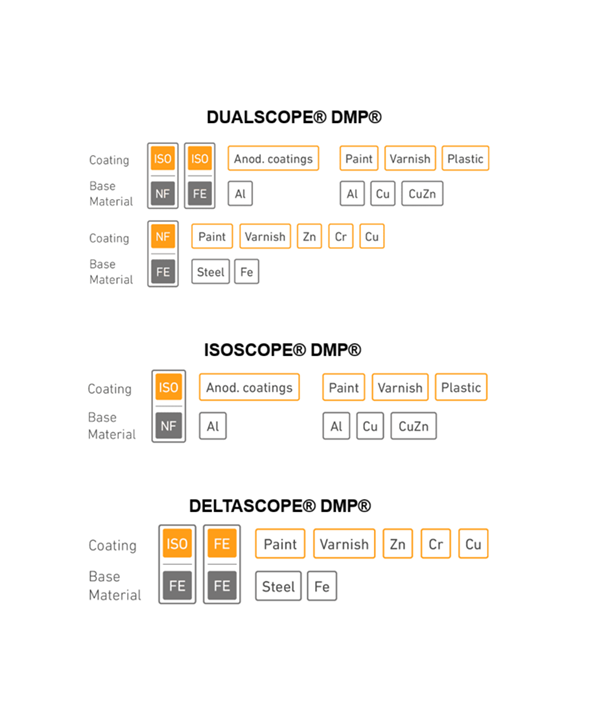

DUALSCOPE® DMP®

Measuring method: Amplitude-sensitive eddy current method and magnetic inductive measuring method

Applications: Measurement of non-magnetic or electrically non-conductive coatings on magnetic or non-magnetic, electrically conductive base materials

Application examples:

• ISO on NF: Paint, lacquer or plastic coatings on Al, Cu, CuZn
• ISO on NF: Anodized layers on Al
• ISO on FE: Paint, lacquer, plastic coatings on Fe, steel
• NFE on FE: Zn, Cr, Cu on Fe, steel

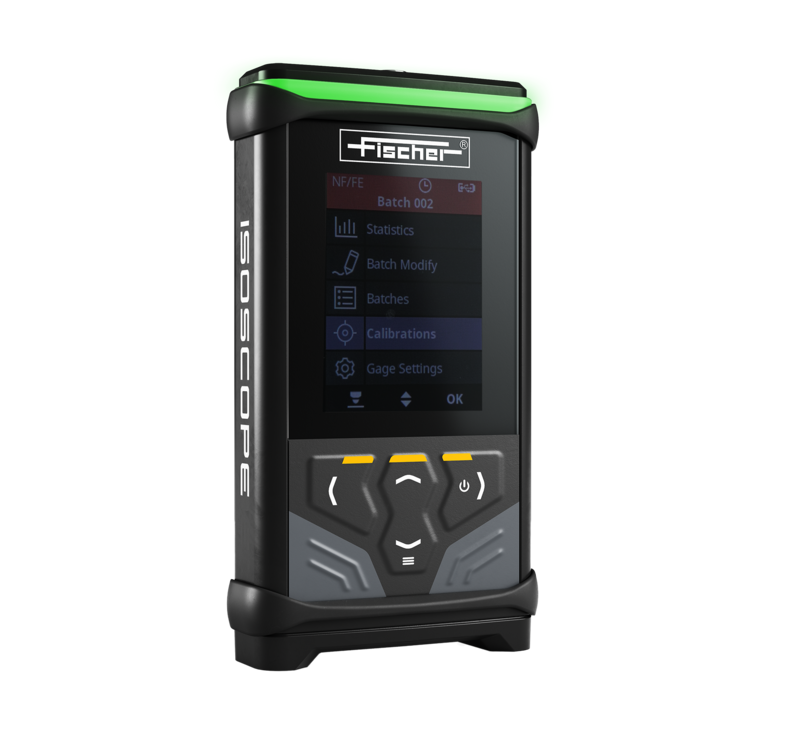

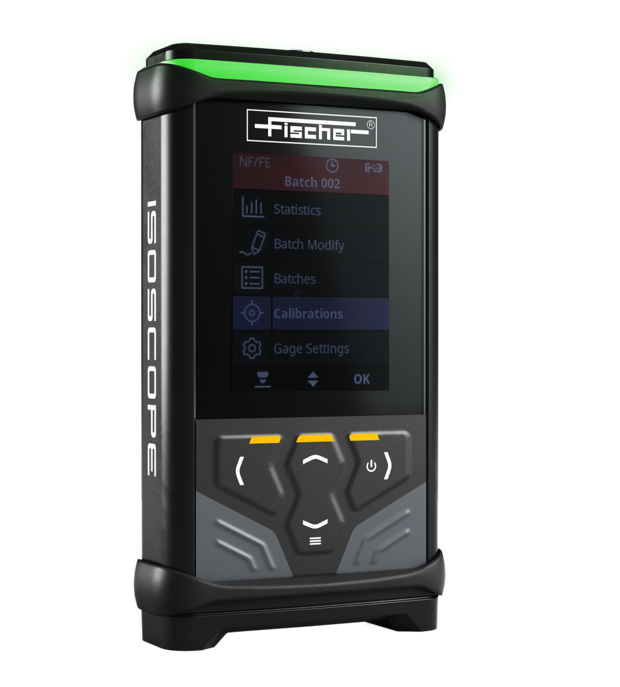

ISOSCOPE® DMP®

Measuring method: Amplitude-sensitive eddy current method

Applications: Measurement of electrically insulating coatings on non-magnetic, electrically conductive metals

Application examples:

• ISO on NF: Paint, lacquer or plastic coatings on Al, Cu, CuZn
• ISO on NF: Anodized layers on Al

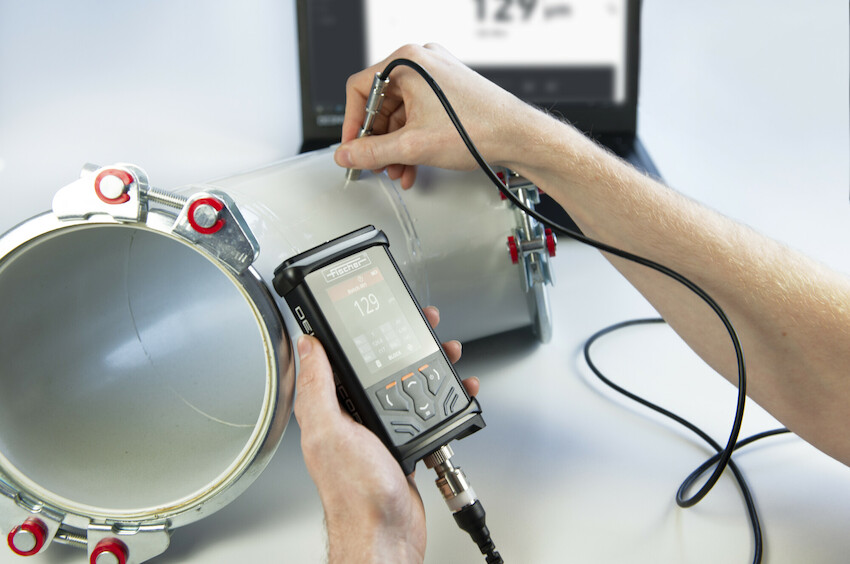

DELTASCOPE® DMP®

Measuring method: Magnetic inductive measuring method

Applications: Measurement of non-magnetic coatings on magnetic base materials

Application examples:

• ISO on FE: Paint, lacquer, plastic coatings on Fe, steel
• NF on FE: Zn, Cr, Cu on Fe, steel
