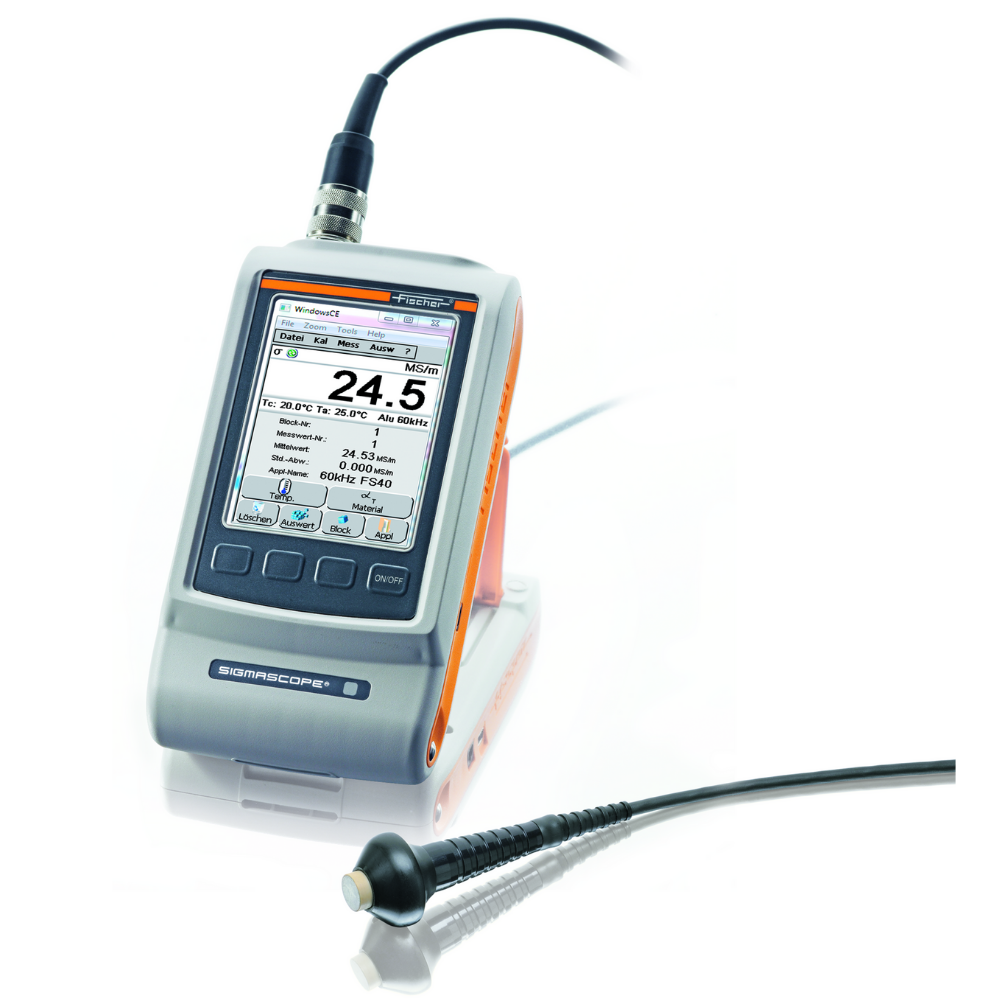

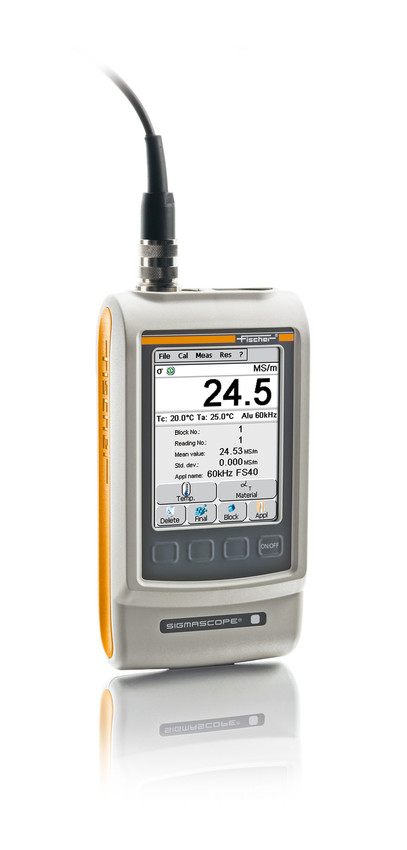

Helmut-Fischer SIGMASCOPE® SMP350

Mobile device for fast, non-destructive testing of the ferrite content of steels, for example in pressure vessels and pipework, according to the magnetic induction method.

Ask a question

Description Features Applications

The ideal solution for electrical conductivity testing.

With the SIGMASCOPE® SMP350, you can measure the electrical conductivity of aluminum or the electrical conductivity of copper quickly, easily and accurately. You can also draw conclusions about the hardness and strength of heat-treated materials. This allows you to check the material stability of components that are exposed to strong temperature fluctuations. The SIGMASCOPE® SMP350 also excels at determining heat damage and material fatigue.

Perfect fit.

Different measuring frequencies for different penetration depths and measuring tasks

Always in view.

Clear management of measurement tasks through user-definable file and folder structure

Easy to use.

Operation via high-contrast touchscreen with intuitive user interface

Predestined for the aerospace industry.

Meets Boeing specification BAC 5651 with matching probe

Measuring method: Phase-sensitive eddy current method
Conductivity measurement according to DIN 50994
Individual consideration of the temperature coefficient valid for each material (temperature sensor optionally available)
Measured value memory: For a large number of measurements
Extensive evaluation and statistics functions
Measuring range: 0.3 – 63 MS/m or 0.5 – 108 % IACS
Simple data transfer via USB interface
Limit value monitoring via sound
Probes available for a wide range of applications, with and without integrated temperature sensor

Conductivity testing of raw materials for sorting and quality assurance
Testing of coin alloys, such as the conductivity of euro coins
Evaluation of hardness and strength of heat-treated materials
Checking for heat damage, material fatigue and cracks
Estimation of the phosphorus content in copper alloys or copper-containing materials
Tracking precipitation processes, such as in Cu-Cr alloys
Checking the homogeneity of alloys
Scrap sorting
