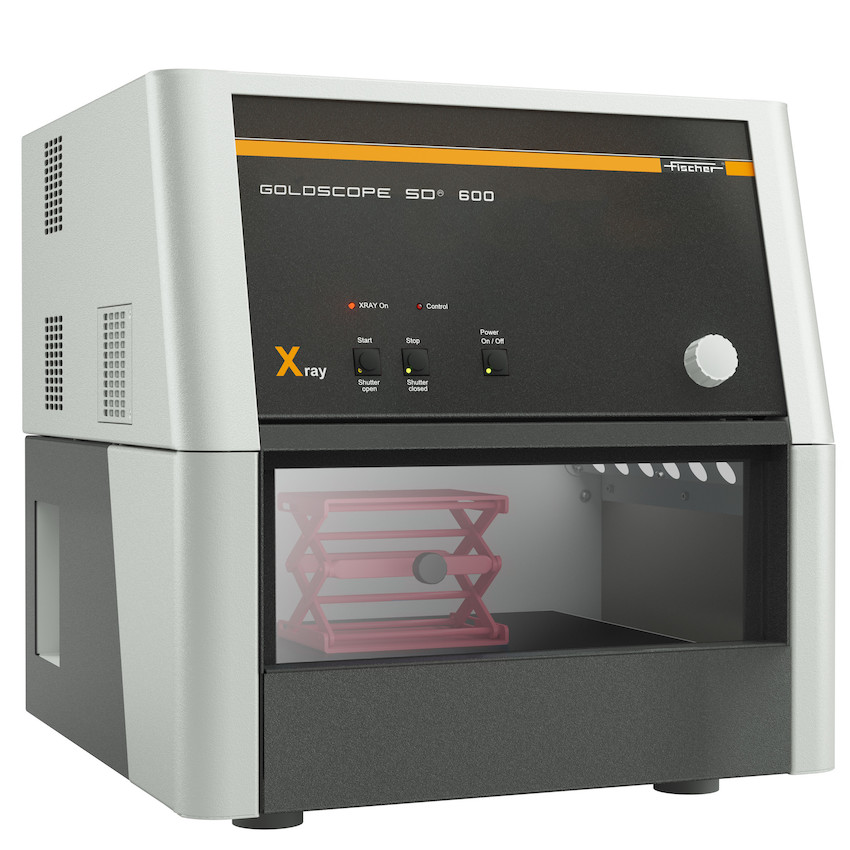

Robust XRF benchtop device optimized for fast and non-destructive analysis of jewelry, coins and precious metals. Also suitable for larger parts.

Ask a question
Description Features Applications

X-ray fluorescence analysis around gold and precious metals.

The GOLDSCOPE SD® 600 is Fischer’s most powerful XRF analyzer for gold authenticity testing and jewelry and precious metals analysis. With top-down measurements, the sample is simply placed on the manually operated scissor table. A laser pointer serves as a positioning aid. Thus, even samples with complex geometries are no challenge for the analysis.

  • Your safety.

Best measuring performance for your precious metal alloys

  • Quick-measure design.

The sample is placed and ready for measurement in just a few steps

  • Versatile.

Ideal for pawnshops, gold trading, test laboratories and jewelry manufacturers

  • Commissioning.

Extremely fast and easy, measuring tasks are already pre-programmed

  • Balanced.

Optimal cost-benefit ratio

  • DPP+ digital pulse processor.

Shorter measuring times or improvement of standard deviation (compared to the DPP)

  • Microfocus tube with tungsten anode
  • Silicon drift detector with extra-large effective area of 20 mm²
  • Peltier cooling
  • Measuring spot approx.: Ø 0.25 mm
  • 4-fold changeable apertures and 3-fold changeable filters
  • Up to 140 mm possible height of samples
  • Higher count rates and significantly reduced measuring times thanks to DPP+
  • Composition of precious metal alloys
  • Authenticity check of gold jewelry, watches and coins
  • Analysis of dental alloys
  • Rhodium layer on gold alloy and gold layer on silver alloy
