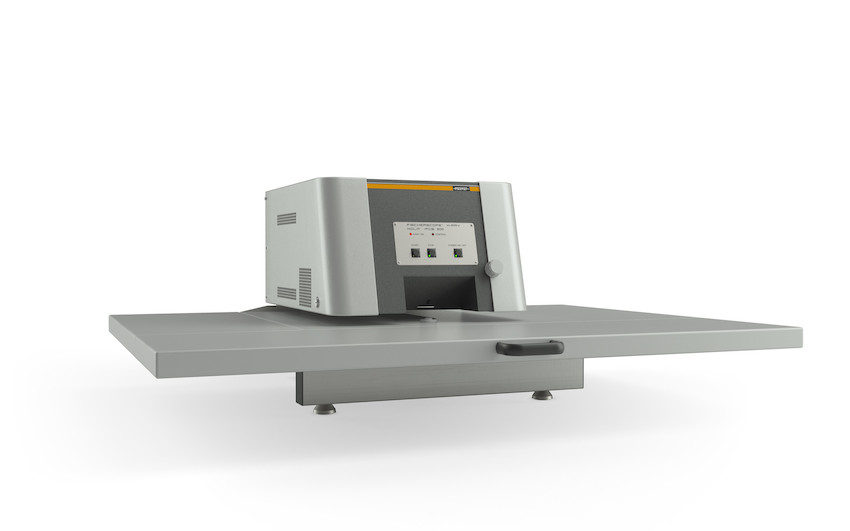

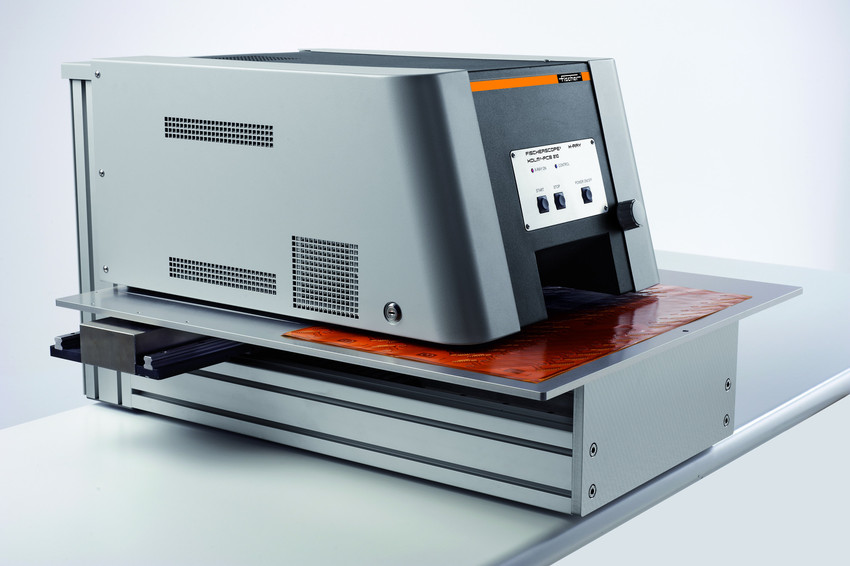

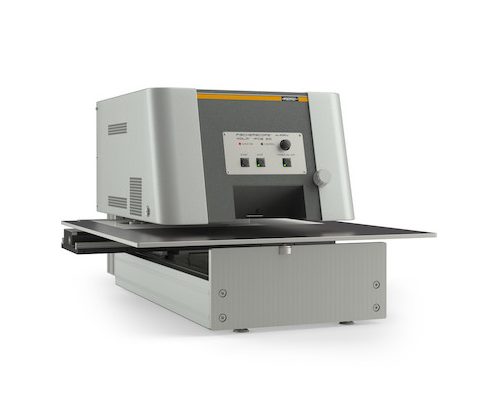

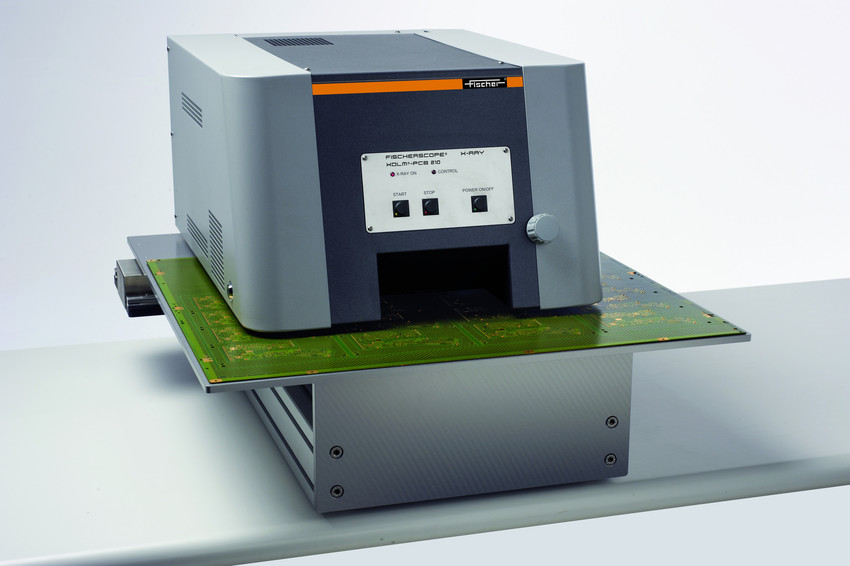

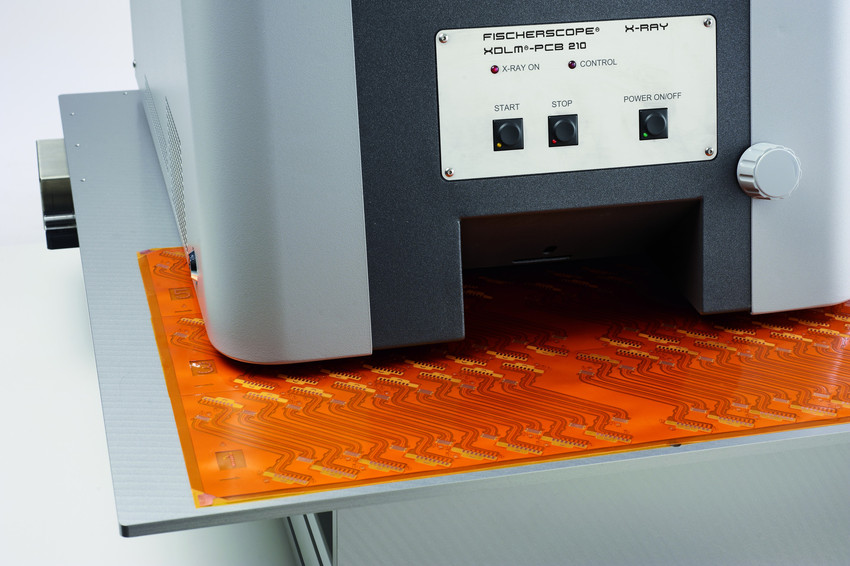

Helmut-Fischer FISCHERSCOPE® X-RAY XDLM®-PCB

Accurate and reliable XRF PCB inspection.

This universal entry-level instrument with a proportional counter tube detector for short measuring times is ideal for simple measurements and spot checks with a small measuring spot. Equipped with different apertures and filters, the FISCHERSCOPE® X-RAY XDLM®-PCB creates the optimal conditions for your measuring task.

• Commissioning.

Extremely fast and simple

• PCB experts.

Specialized measuring solutions for printed circuit boards

• Programmable.

Automated measurements on predefined structures thanks to advanced pattern recognition technology

• Balanced.

Optimal cost-benefit ratio

• Tailor-made.

Different models offer the optimal solution for your application

• Quick-measure-design.

The sample is placed and ready for measurement in just a few steps

• Measuring on smallest components and structures on PCBs up to 610 x 610 mm (24 x 24 in)
• Measuring functional layers in the electronics and semiconductor industry
• XDLM®-PCB 210 and 220: Automated measuring e.g. in quality control
