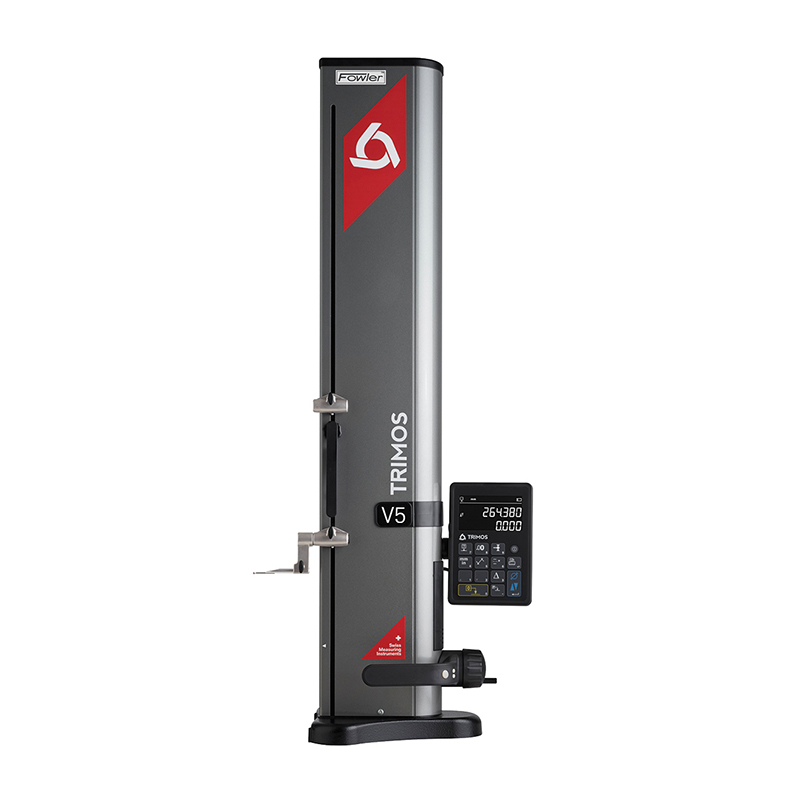

Trimos height gauge V5

Height Gauge with excellent repeatability and with a revolutionary displacement handwheel offering its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven.

Ask a question

Description

The height gauge V5 is the descendant of the legendary V+ line, from which thousands of copies have already been sold in workshops all over the world and are universally recognized for their easy use and their high quality.

Trimos was the first to offer vertical measuring instruments on the market more than 40 years ago. The V5 represent a consolidation of know-how accumulated over the years. The very legible display and the user-friendly functions offer exceptional comfort use. But that’s not it: The V5 is equipped with a revolutionary displacement handwheel which offers its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven. Each one of these modes, suffers from no compromise, which means that the user who prefers a manual instrument will not notice a difference with a classic manual instrument and the same applies to the motor-driven displacement. This innovation avoids having to make a difficult choice during the purchase and can accommodate multiple potential users with the same instrument.

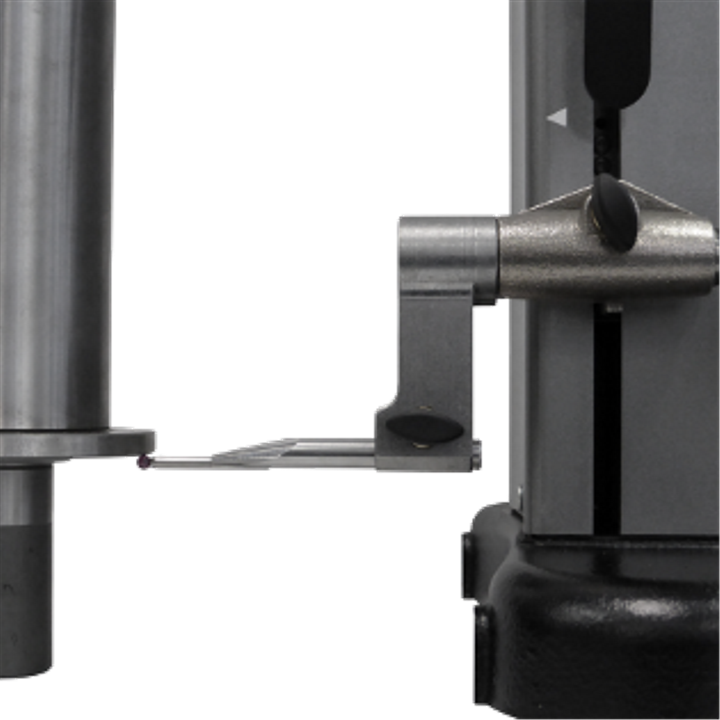

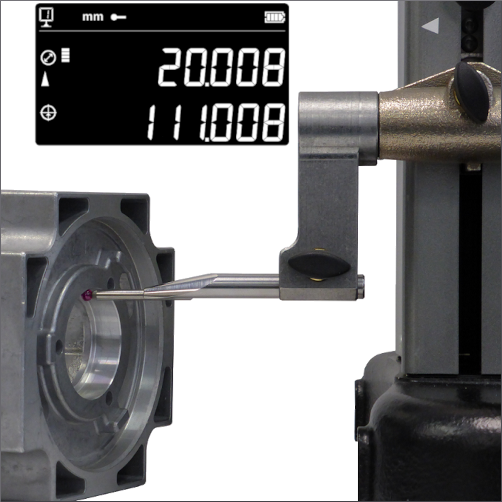

The design of the V5 with its side probe holders revives an old Trimos tradition: They enable measuring with long, robust probes guaranteeing an excellent repeatability.

V5		400	700	1100
Measuring range	mm (in)	407 (16)	711 (28)	1110 (44)
Measuring range with extension	mm (in)	719 (28)	1023 (40)	1422 (56)
Max permissible errors, BMPE	µm	2.5 + L(mm)/300
Repeatability, RMPE (2s)	µm	2
Frontal squareness deviation SMPE	µm	5	8	11
Max. Resolutions	mm	0.001 (0.00005)
Measuring force	N	0.75 ÷ 1.5
Autonomy	h	12
Interfaces		USB / RS232
Air cushion		Yes
Weight	kg	21	24	33
