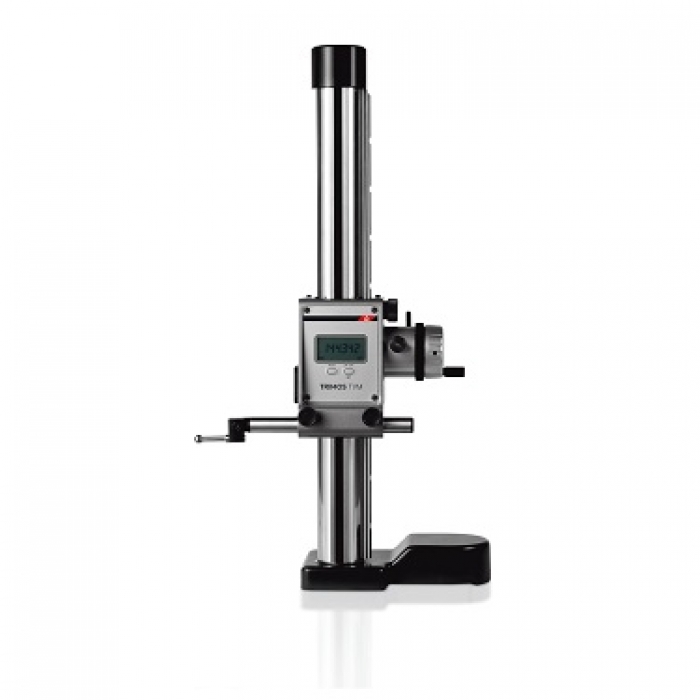

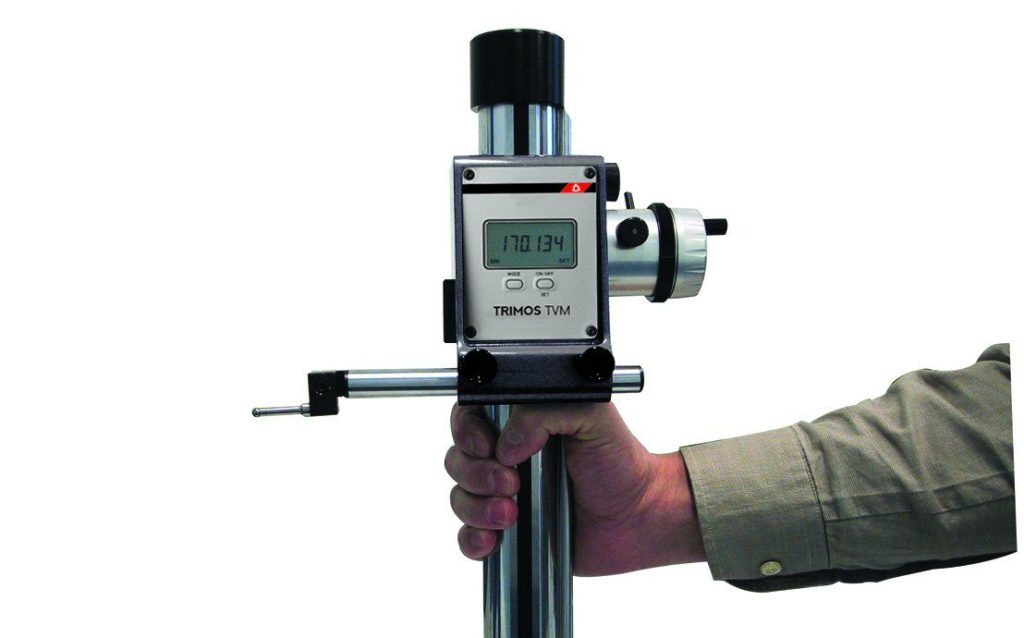

TRIMOS HEIGHT GAUGE TVM

Very robust and mobile instrument for height measuring and tracing in production environment.

Ask a question

Description

The TVM instruments are perfect for height measurements and scribing work and reliable in all kinds of workshop conditions. The result of an unique, compact design of the instrument is great mobility and extreme stability.

Because of its advanced measuring system, the self-contained working time of the TVM is one year. Therefore it can be used for multiple applications in the workshop area. The simplicity of manipulation allows constant change of the user without any time-consuming training.

The success of the TVM among competitive gauges is outstanding. More than 14’000 instruments are in use worldwide. A large range of accessories for all kinds of measuring applications is available.

TVM		304	604
Measuring range	mm (in)	320 (12)	620 (24)
Max permissible errors, BMPE	mm	0.02	0.03
Repeatability, RMPE (2s)	mm	0.005
Frontal squareness deviation SMPE	mm	0.02	0.03
Max. Resolutions	mm	0.01/0.001
Measuring force	N	3
Max. manual carriage displacement speed	mm/s	1500
Autonomy	h	2000
Data output		Opto RS232
Operational temperature	°C	+10 - +40
Temperature of storage	°C	-10 - +40
Weight (cast iron base)	kg	6	10
Weight (granite base)	kg	14	18
