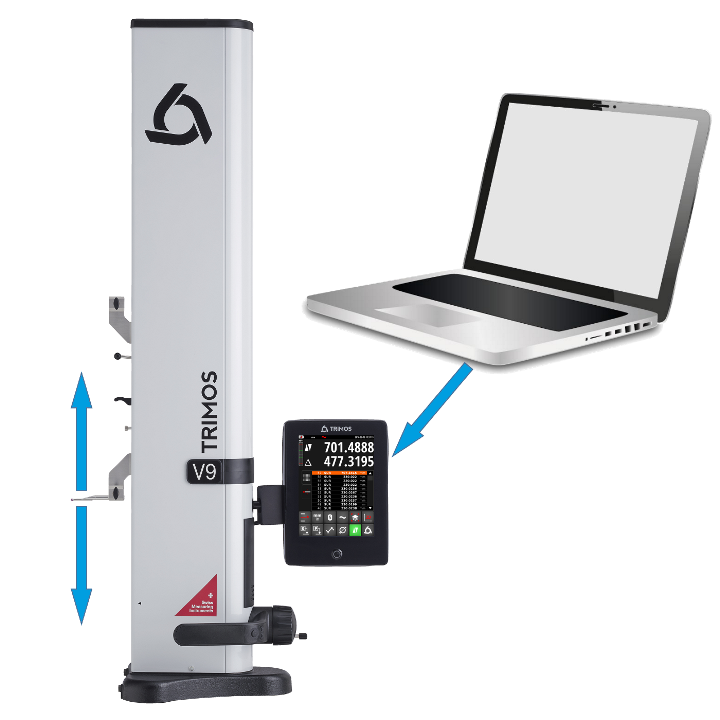

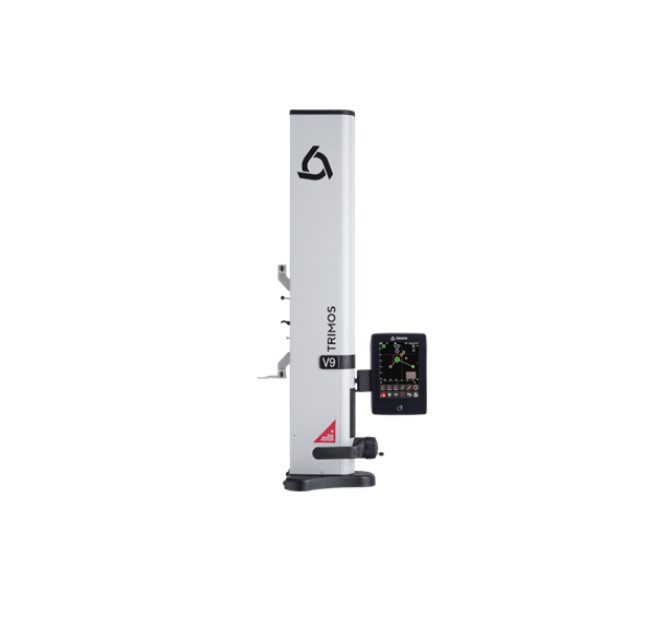

V9 2D

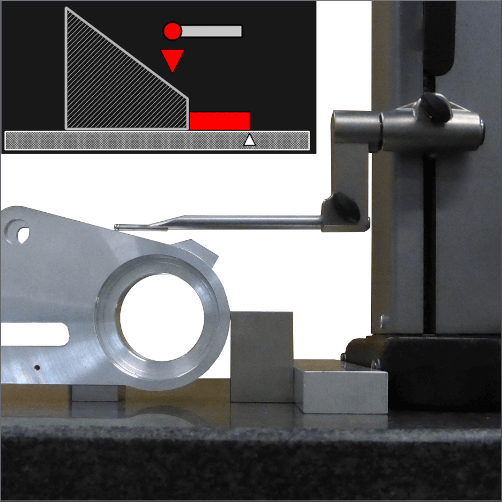

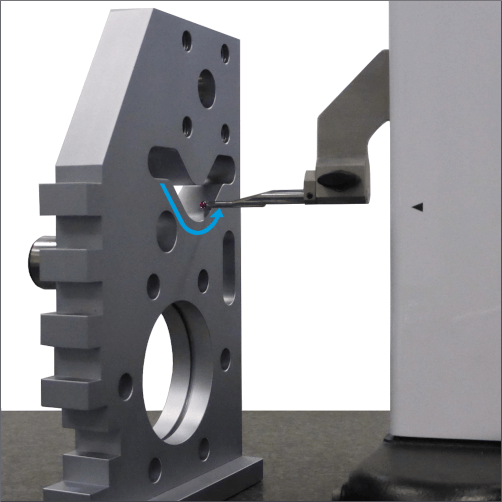

The height gauge V9 has been developed for the most demanding users. Laboratories and workshops for whom measuring reliability is determining will fully appreciate its exceptional precision level and its "Swiss Made" finish.Metrological performances have been the core of the development of this height gauge. No compromise on precision and repeatability have been tolerated. This is why some construction details, particularly probe holders differ from other models.The display, based on an entirely tactile interface, offers an ease of use never reached yet on a vertical measuring instrument. The menus and functions displayed obey to a very strict philosophy and design. This allows a great efficiency, even in complex tasks such as programming, 2D mode, angles measurements or statistical analysis of results.The V9 are equipped with a revolutionary displacement handwheel allowing the user to choose either the manual or motorized displacement mode.| Measuring range | mm (in) | 406 (16) | 710 (28) | 1109 (43) |
| Measuring range with extension | mm (in) | 724 (28) | 1028 (40) | 1427 (56) |
| Max permissible errors, BMPE | µm | 1.2 + L(mm)/1000 | ||
| Repeatability, RMPE (2s) | µm | 0.4 (Ø:1) | ||
| Frontal squareness deviation SMPE | µm | 5 | 8 | 11 |
| Max. Resolutions | mm | 0.0001 (0.00001) | ||
| Measuring force | N | 0.75 ÷ 1.5 | ||
| Autonomy | h | 12 | ||
| Interfaces | USB / RS232 | |||
| Air cushion | Yes | |||
| Weight | kg | 21 | 24 | 33 |
