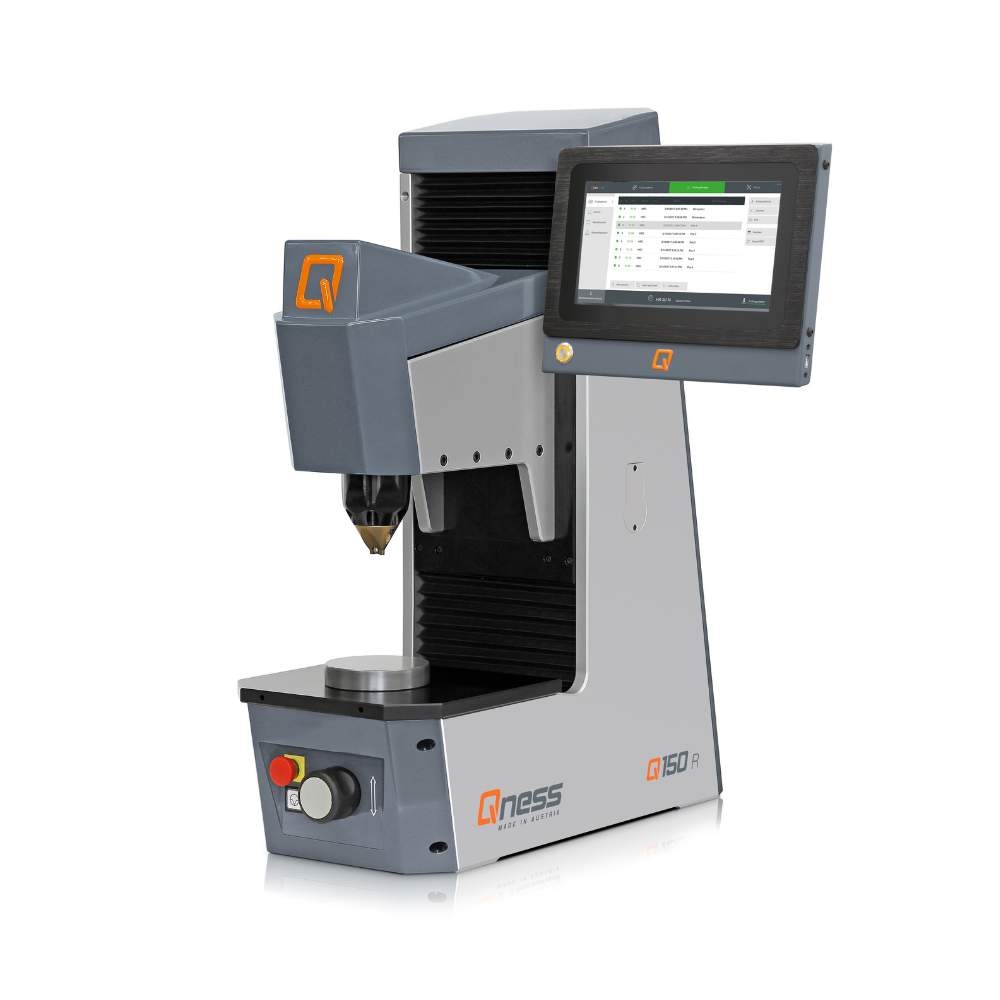

Qness (QATM) Model 150 R

Rockwell Hardness Tester



  • Versatile Rockwell hardness tester

  • 10,1” color touch display

  • Integrated work space illumination



Ask a question
Description Specification

 Qness 150 R

Rockwell Hardness Tester



on 10,1" Touch-Screen Most simple operation



  • High-quality and sturdy aluminium case

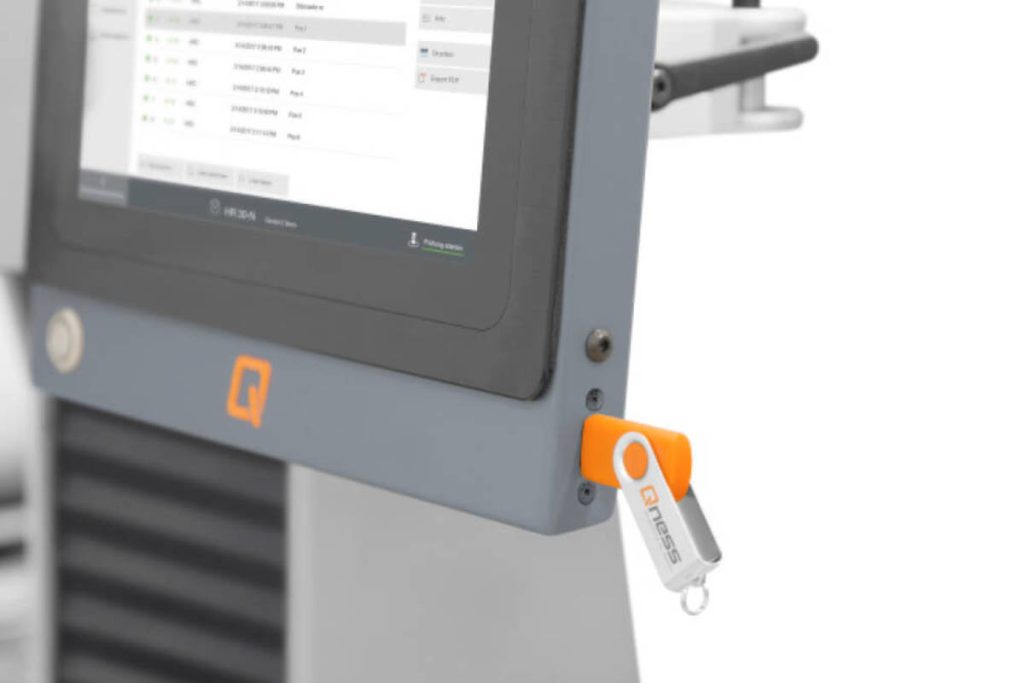

  • USB port for data export & input

  • Configurable protocol and data management



Indication that the measurement exceeds the allowed limit









Result list test point identification









Integrated statistic view

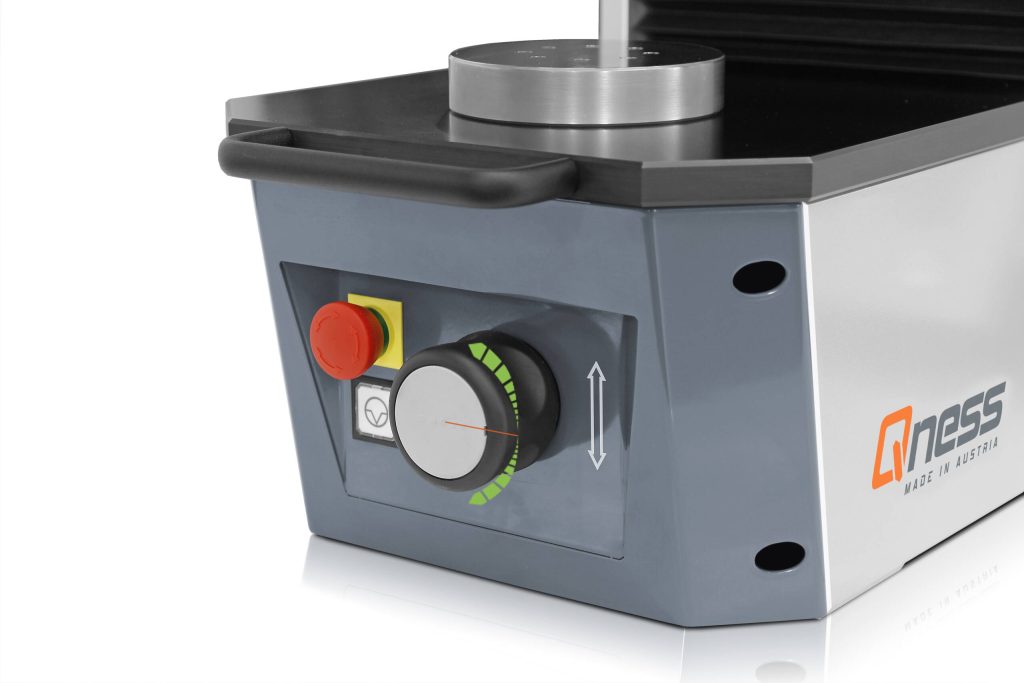

Dynamic Height Adjustment

The compact Rockwell hardness tester in combination with the electronic movement control allows quick, accurate and sensitive positioning of the test head. Forceless, precise and collision-proof positioning of the head by turning the control knob (6mm/s) - even automatically with Q150A or A+, if required.





Working Room Lighting

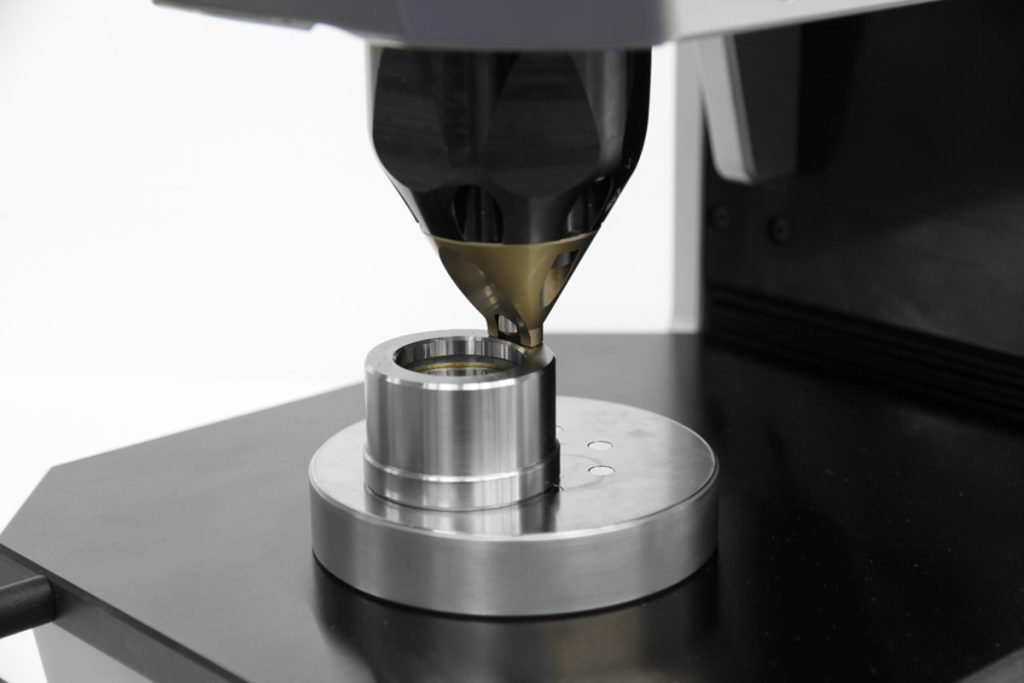

The integrated working room lighting allows an accurate positioning of the penetrator. (Standard on Rockwell Hardness tester Q150R)

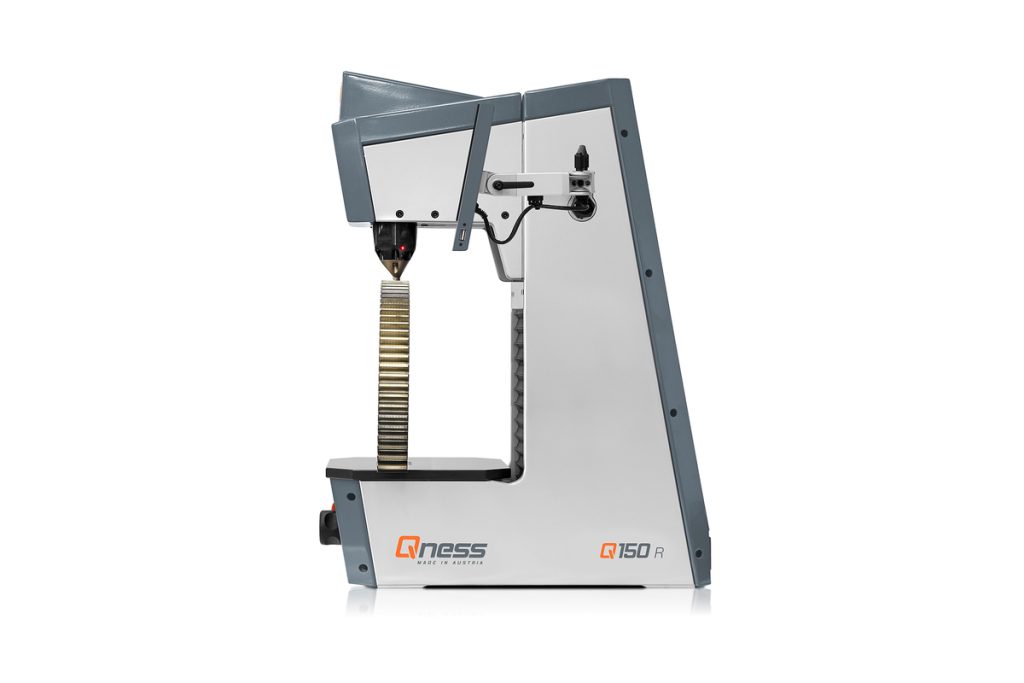

Extended Test Area

The entire Rockwell hardness tester range can be customized. Send us your specifications and you will immediately receive a customized solution that works







High Performance and Highly Professional

Completely connected in high performance with the integrated Windows PC with SSD hard disk even in the base model Q150R in standard equipment. Customized data connection and integration of the Rockwell hardness tester into production lines possible up to request.





Configurable Protocol and Data Management

  • Across-the-line software design

  • Numerous statistic functions: bar graph, progression, histogram

  • Measurement value list to export as „Excel“ (CSV via export configurator)

  • Standardized detail information to each indentatio

  • A4 protocol as PDF / direct print

  • User management with different security access levels to the hardness tester



Rockwell Hardness Tester Qness 150 R

Technical Data

Test methodRockwell
Test force range1 - 250 kg (9.81 - 2450 N)
Test height / Throat depth260 mm / 180 mm
Test height extension (option)450 mm
Height adjustmentv max 6 mm/s
SoftwareQpix T2R
Test anvil / Cross slide250 x 260 mm
Data interface3x USB, 1x Ethernet, 1x RS232
Weight of basic machine95 kg
with Test height extension112 kg
Max. work piece weight100 kg
Power supply230~1/N/PE, 110~1/N/PE
Max. power consumption~ 240 W

Accessories and Options

GeneralTest anvils, Indenters
