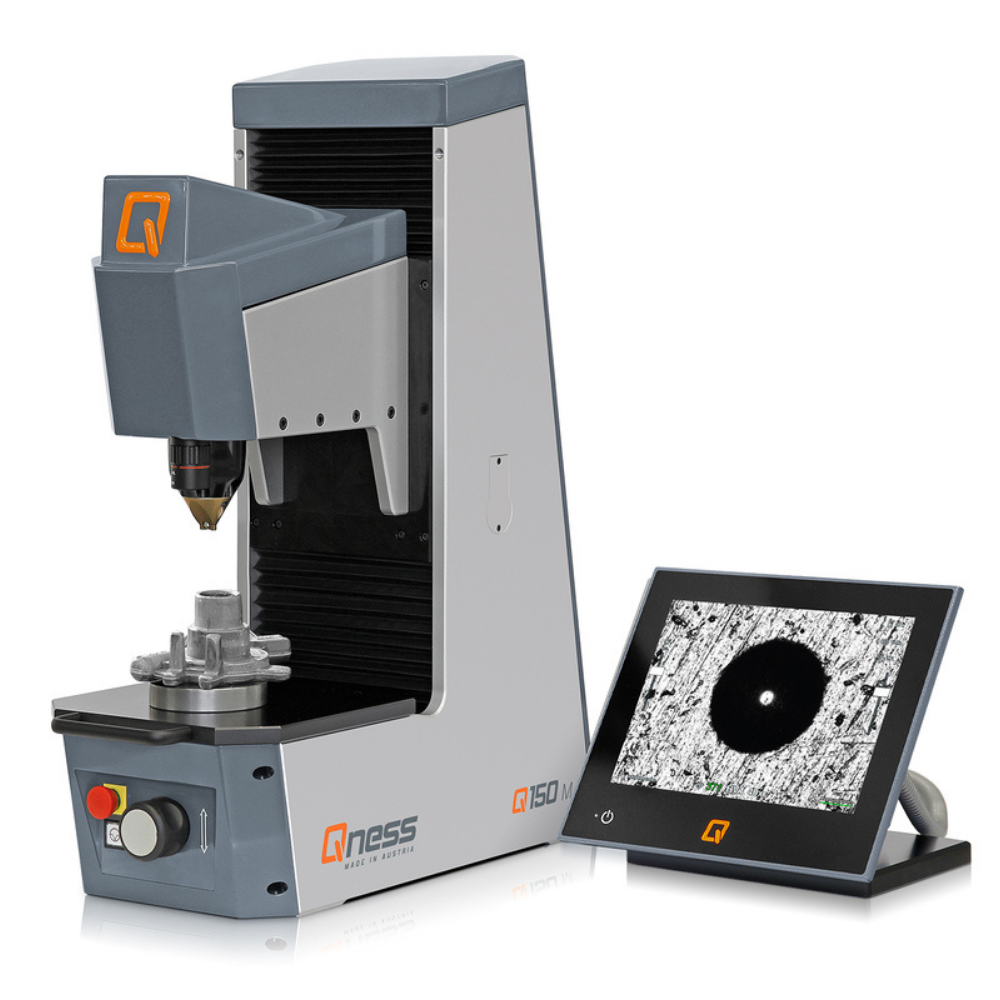

Qness (QATM) Model 150 M

Rockwell Hardness Tester

Integrated optic system with excellent image quality

Rockwell/Vickers/Brinell & Knoop applications possible

Perfect for difficult accessible test point positions

Ask a question

Description Specification

Qness 150 M

Rockwell Hardness Tester

on 12" Touch-Display Evaluation and data management

High-quality and sturdy aluminium case

USB for data export and input

Quick change between lenses and penetrators

Data management and creation of test reports

Row measurement

Numerous statistics

Input by virtual keyboard

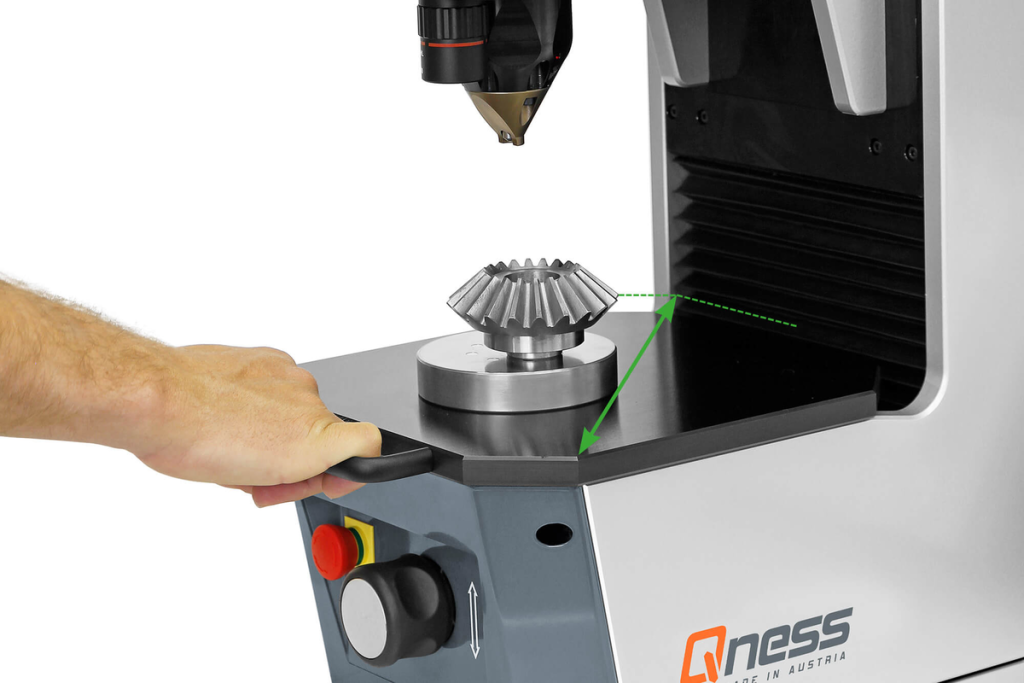

Access to universal hardness testing

Optic evaluation by means of manual movement of the test anvil under the lens

The work piece is secured against shifting by means of magnets

Integrated lens system with high resolution camera

Long working distance lenses and automatic brightness adjustments

Hardness tester operated via external 12“ touch-screen with Qpix T12 software

Working Room Lighting

The integrated working room lighting allows an accurate positioning of the penetrator. (Standard on Rockwell Hardness tester Q150R)

Extended Test Area

The entire Rockwell hardness tester range can be customized. Send us your specifications and you will immediately receive a customized solution that works

High Performance and Highly Professional

Completely connected in high performance with the integrated Windows PC with SSD hard disk even in the base model of the Rockwell hardness tester Q150R. Customized data connection and integration into production lines possible.

Configurable Protocol and Data Management

Across-the-line software design

Numerous statistic functions: bar graph, progression, histogram

Measurement value list to export as „Excel“ (CSV via export conﬁgurator)

Standardized detail information to each indentatio

A4 protocol as PDF / direct print

User management with different security access levels to the hardness tester

Rockwell Hardness Tester Qness 150 M

Technical Data

Test method	Rockwell
Test force range	1 - 250 kg (9.81 - 2450 N)
Test height / Throat depth	260 mm / 180 mm
Test height extension	450 mm
Height adjustment	v max 6 mm/s
Software	Qpix T2
Integrated optic system	Yes
Camera system	High resolution camera system
Test anvil / Cross slide	Manual cross slide 250 x 260mm
Data interface	1x USB (Display), 2x USB, 1x RJ45 (Ethernet), 1x RS232
Weight of basic machine	105 kg
with Test height extension	122 kg
Max. work piece weight	100 kg
Power supply	230~1/N/PE, 110~1/N/PE
Max. power consumption	~ 240 W
Accessories and Options
General	Test anvils, Indenters
