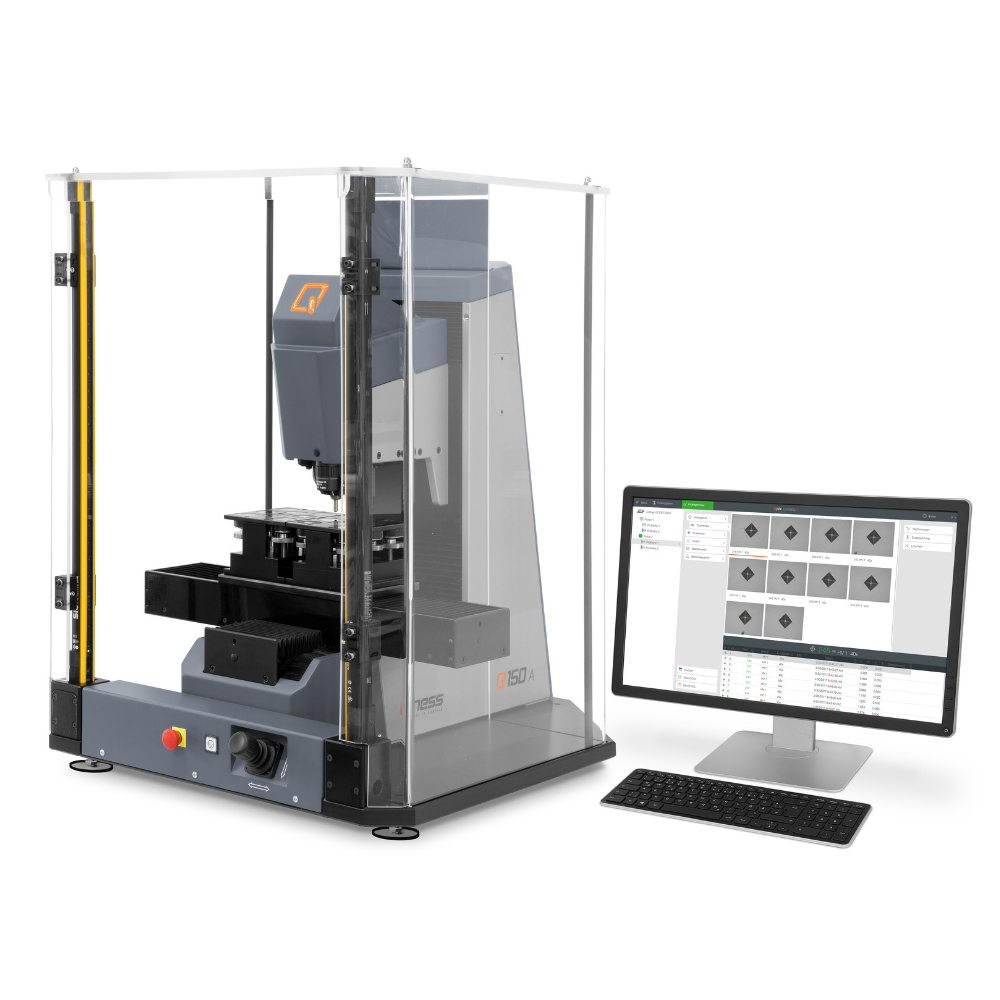

Qness (QATM) Model 150 A/A+

Rockwell Hardness Tester

Fully automatic XY slide

Rockwell/Vickers/Brinell & Knoop

Up to two optic systems possible

PRODUCT OVERVIEW VIDEO

https://www.youtube.com/watch?v=GQsM6jib6n0

Ask a question

Description Specification

Qness 150 A/A+

Rockwell Hardness Tester

Pipe testing

Check pipes economically with the Rockwell hardness tester Q150A/A+ according to the applicable API standards.

Dynamic height adjustment

The compact Rockwell hardness tester in combination with the electronic movement control allows quick, accurate and sensitive movement of the test head. Positioning of the test head is collision secured, forceless and accurate via turning angle (6 mm/s) - even automatically with Q150A or A+, if required.

Exact positioning & large test room

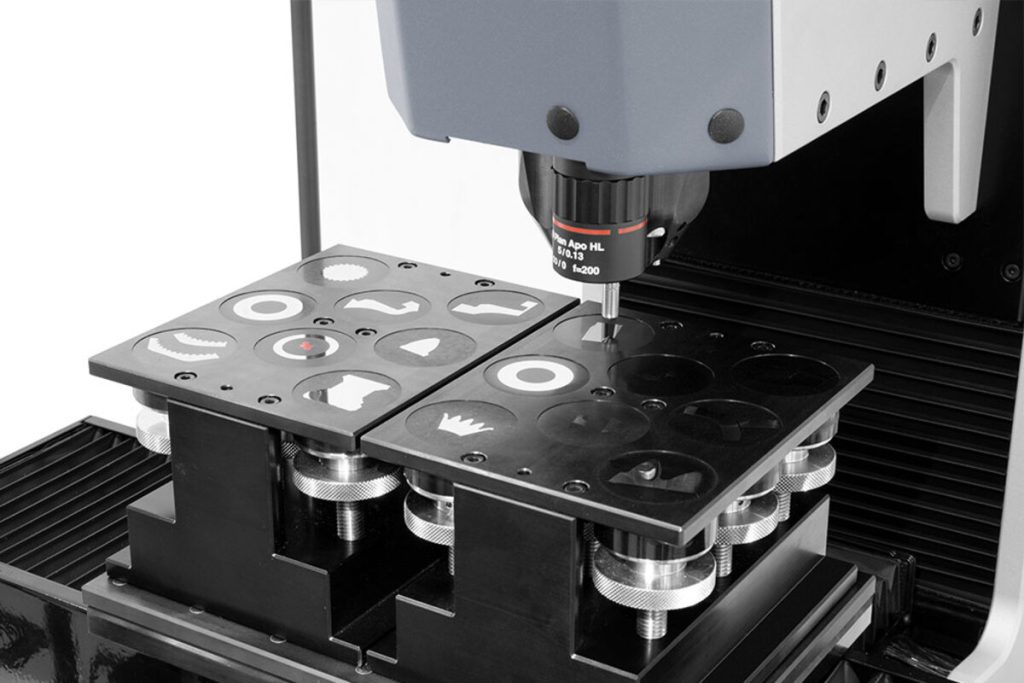

The sophisticated construction offers a large and well arranged test area. The fully automatic XY-slide with high precision optic path measurement system can be equipped i.e. with two 8-fold sample holders. Additionally, customer speciﬁc magazines can be managed and created in the software.

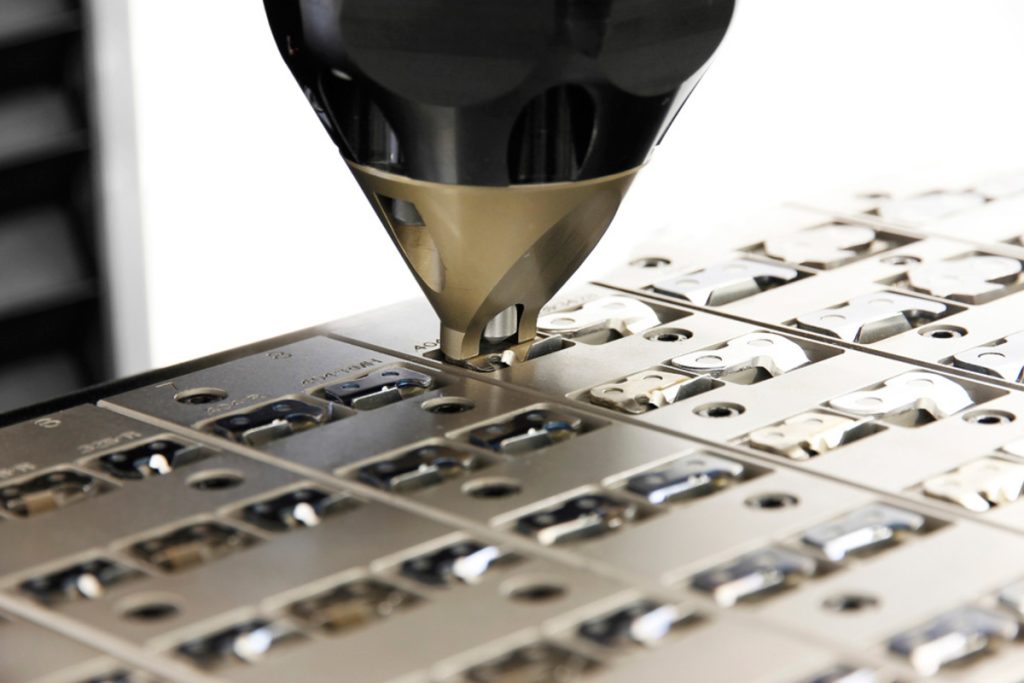

Accessibility to narrow test places

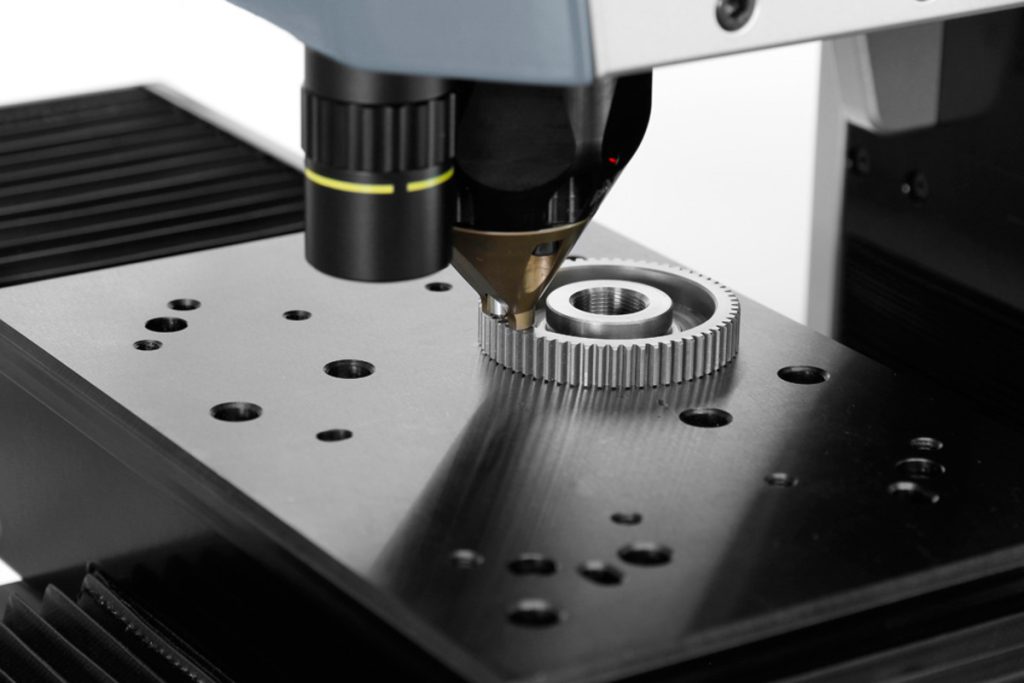

LD lenses provide an increased working distance

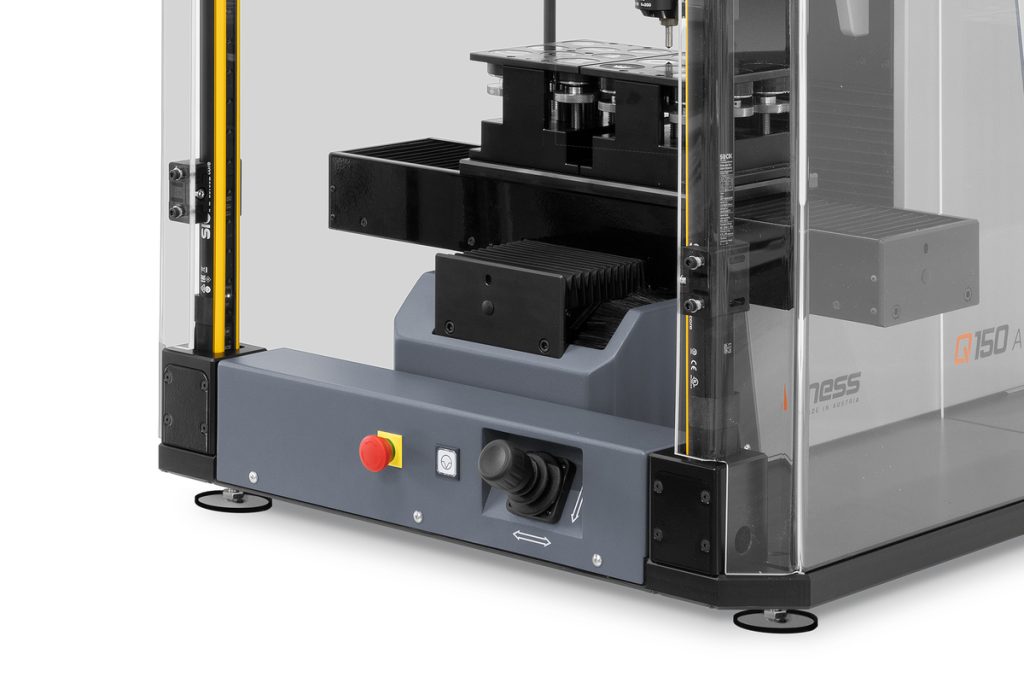

Collision proof

Overview and analysis via optical system

Field of view 0.2 - 40 mm

Working Room Lighting

The integrated work space lighting permits accurate positioning of the indenter. (Standard on Q150R)

Extended test area

The entire Q150 Rockwell hardness tester series may be customized. Send us your speciﬁcations and we will develop a solution for you.

Qpix Control sets new standards

Maximum repeatability. All specific test data is stored corresponding to any single test point. Test points can easily be checked or tested a second time.

Qpix Control sets new standards

Maximum repeatability. All specific test data is stored corresponding to any single test point. Test points can easily be checked or tested a second time.

Qness 150 A/150 A+

Qness 150 A+

Technical Data

Test method

Rockwell

Test force range

1 - 250 kg (9.81 - 2450 N)

Test height / Throat depth

187 mm / 180 mm

Test height extension (option)

377 mm

Height adjustment

v max 6 mm/s

Software

Qpix Control2

Integrated optic system

- (Option)

Camera system

up to 2x high resolution camera systems

Sample image camera

Yes

Test anvil / Cross slide

motorized 170 x 250 mm

Data interface

Interface PC-Hardness tester: 3x USB

Weight of basic machine

120 kg

with Test height extension

137 kg

Max. workpiece weight

50 kg

Power supply

230~1/N/PE, 110~1/N/PE

Max. power consumption

~ 240 W

Accessories and Options

General

Single and multi sample holders, Jominy sample holder, Indenters, Lenses, Software modules
