Qness (QATM) Micro Hardness Testers 60 M EVO

Test methods: Vickers, Knoop, Brinell

Control: Semiautomatic

Sample image camera: No

PRODUCT OVERVIEW VIDEO

[embed]https://www.youtube.com/watch?v=GpGLh5xTTuA&feature=emb_logo[/embed]

Ask a question

Description Specification

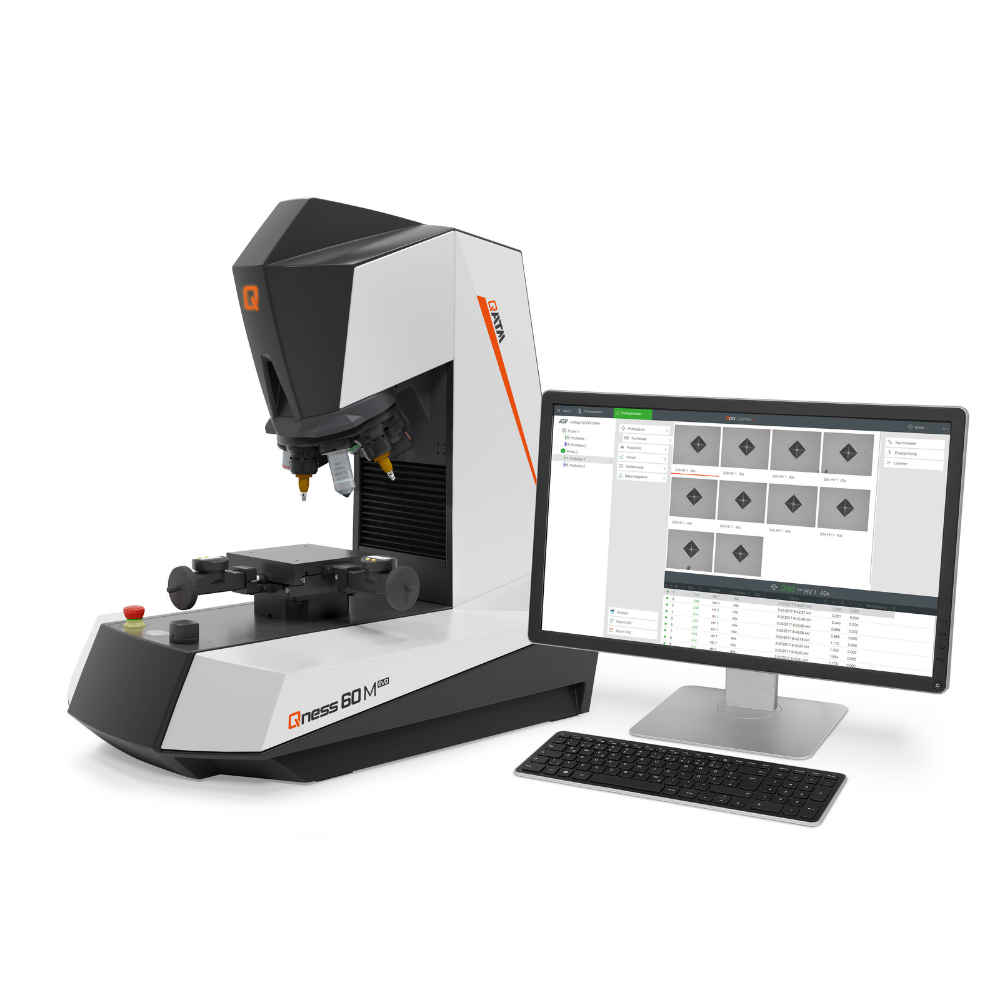

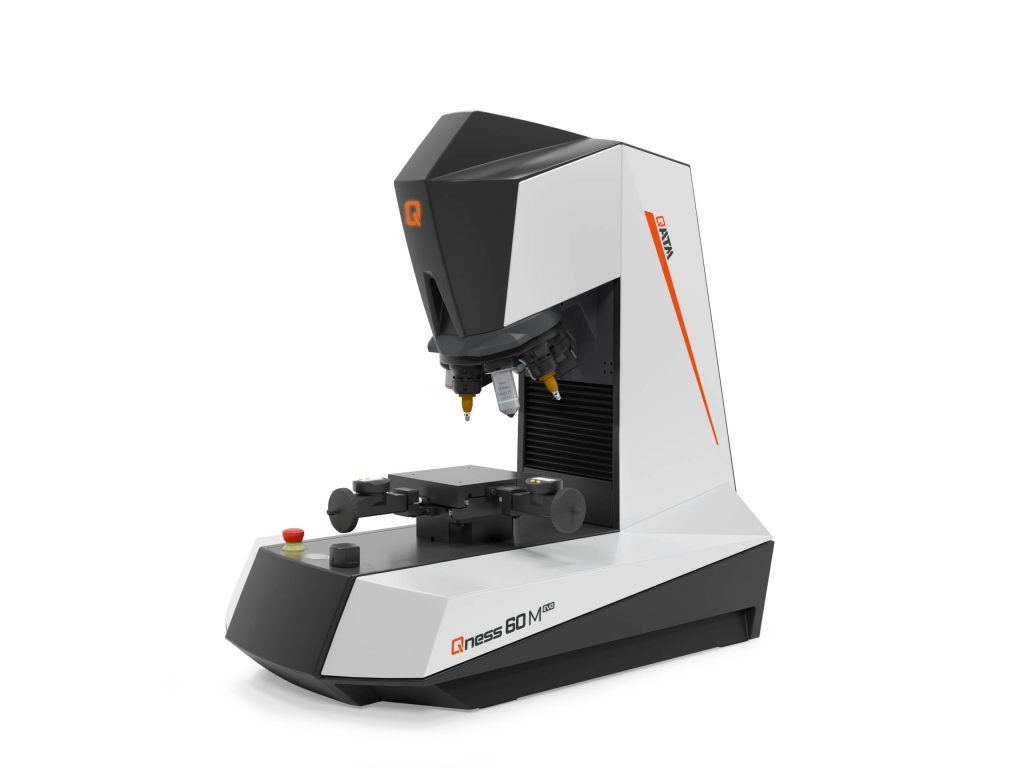

QNESS 60 M EVO

The Vickers / Knoop / Brinell hardness tester series Qness 60 EVO takes micro hardness testing to a whole new level: the high-end laboratory devices of the latest generation combine the best of both worlds – hardness testing and microscopy without compromise and with maximum operating convenience. The revolutionary optical system with color camera provides reproducible and reliable results every time.

The „M“ model is operated manually and offers excellent flexibility for single-piece testing and materialographic analysis of components of any size. This version is ideally suited when a high-quality testing device for is required for low sample throughput.

Product Advantages

Wide test force range (0.25 g – 62.5 kg)

ASTM+DAkkS certified Vickers diamond included

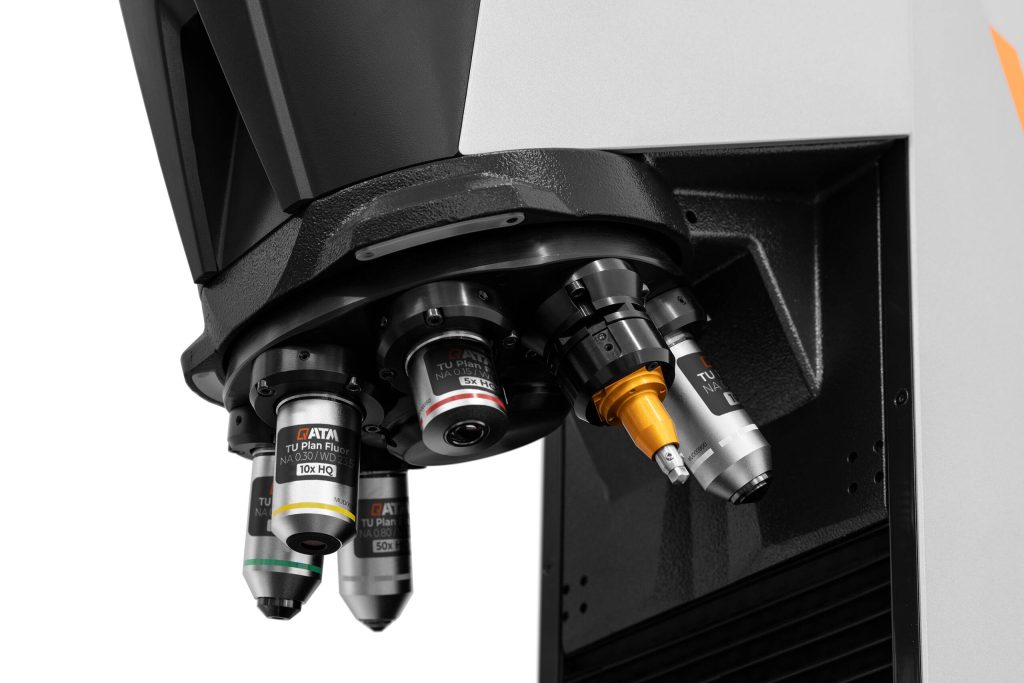

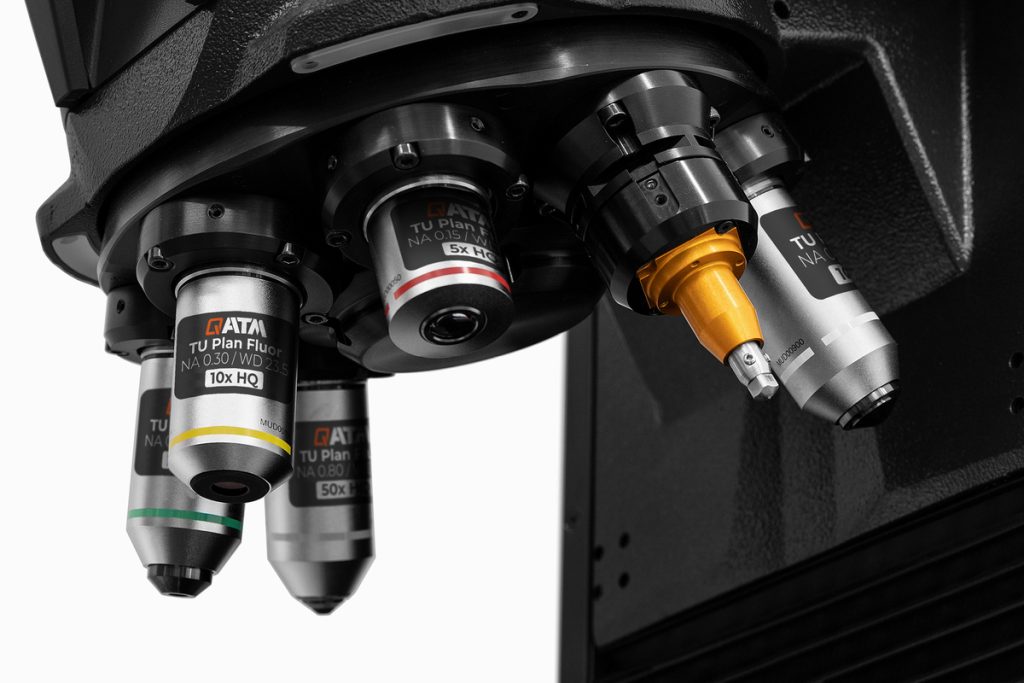

Dynamic test turret with 8-position tool changer

White LED light with motorized aperture shuttering

Qpix Control2 M Software including INSPECT microscopy features

Extendable with manual XY cross slide

Digital XY cross slide with data feedback

Hardness Testing

Unlimited options

Hardness testing module with a force range of 0.25 g to 62.5 kg as standard – including ASTM & DAkkS-certified Vickers test diamond

3 versions - from semi-automatic application (M) to full automation (A/A+)

Solidly-built machine – ‘Made in Austria’

Variably-structured, vibration-reducing cast body with frame in anodized aluminum.

Fully automated test cycle: Electronic force appplication and closed-loop control

Vertical concept with 2 Z-axes

There are decisive benefits in distributing vertical movement across 2 axes. Via the first Z-axis there is dynamic motion control, allowing the indenter to be positioned towards the test surface quickly and conveniently at up to 30mm/s. The additional second Z-axis in the QATM system offers a high-resolution positioning system for greater precision in force application and focusing.

Comprehensive range of basic functions

Several labour-saving features are already included in the QATM base model:

Optimized autofocus system

Automatic brightness regulation

Automatic image evaluation for hardness testing with multiple evaluation modes

Built-in protocol generator

Technical Data

Supported test methods	Vickers, Knoop, Brinell
Test force range	0.25 g – 62.5 kg (0.00245- 613.1 N)
Test head control	Dynamic, Hand wheel
Tool positions	8 (motorized Tool Changer) max. 3 hardness testing modules, max. 6 lenses
Measurement types	Single-, Row measurement
Measurement types (optional)	CHD, NHD, SHD (cross slide) / Phase analysis, Layer thickness measurement, Grain size evaluation
Sample image camera	-
Test height / Throat depth	145 / 170 mm
Test anvil / XY cross slide	- (Option: manual cross slide)
Table size	Ø 100 mm (Cross slide: 135 x 135 mm)
Traveling distance	X 150 mm / Y 150 mm / Z 145 mm
XY positioning repeatability	-
Max. workpiece weight	50 kg
Weight of basic device	55 kg
Software	QPIX CONTROL
Power supply	100 – 240 V, ~1/N/P, 45-65 Hz
