Qness (QATM) Grinding & Polishing Machine QPOL 250 A1-ECO (Saphir 250 A1-Eco)

Working wheels: Ø 200/250 mm

Programmable memory for reproducible results

Single wheel unit

No. of samples (single pressure): 1-5 samples Ø 40 mm

PRODUCT OVERVIEW VIDEO

https://www.youtube.com/watch?v=SLYwvVq7XYg

Ask a question

Description

QPOL 250 A1-ECO (Saphir 250 A1-Eco)

Grinding & Polishing Machine

The QPOL 250 A1-ECO is a single-wheel grinding and polishing machine for working wheels Ø 200/250 mm which is conveniently operated by a 4.3 "touch screen.

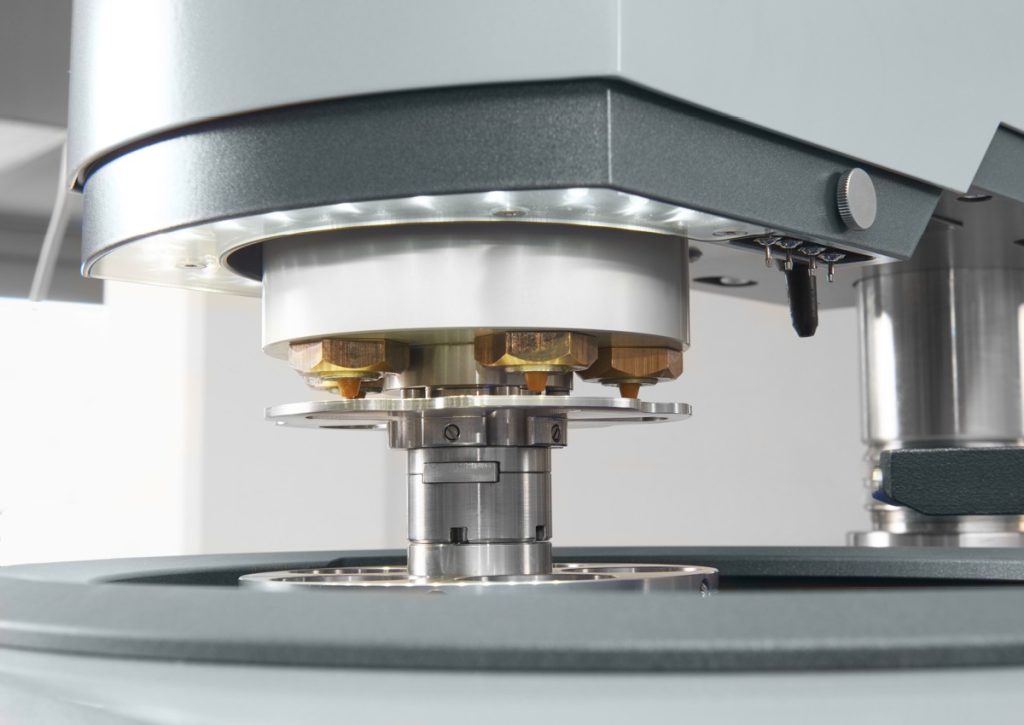

The new holder for the working wheel (single-disc design) enables operation without carrier disc without compromising performance. The control software allows to edit and save up to 200 preparation methods, protected by a user account management.

Pressure, speed and direction of rotation (head and working disc) are adjustable. A spin cycle function (Cleaning Boost) helps to spin dry the grinding and polishing medium at 750 rpm at the end of the preparation process within 3 seconds.

The robust machine can be combined with the dosing system TOPAS ECO and offers maximum flexibility for sample preparation and operating convenience.

Product Advantages

Single wheel grinder/polisher

Spin cycle function (Cleaning Boost)

4.3" Touch-Screen with intuitive QATM user software

200 customized programs storable

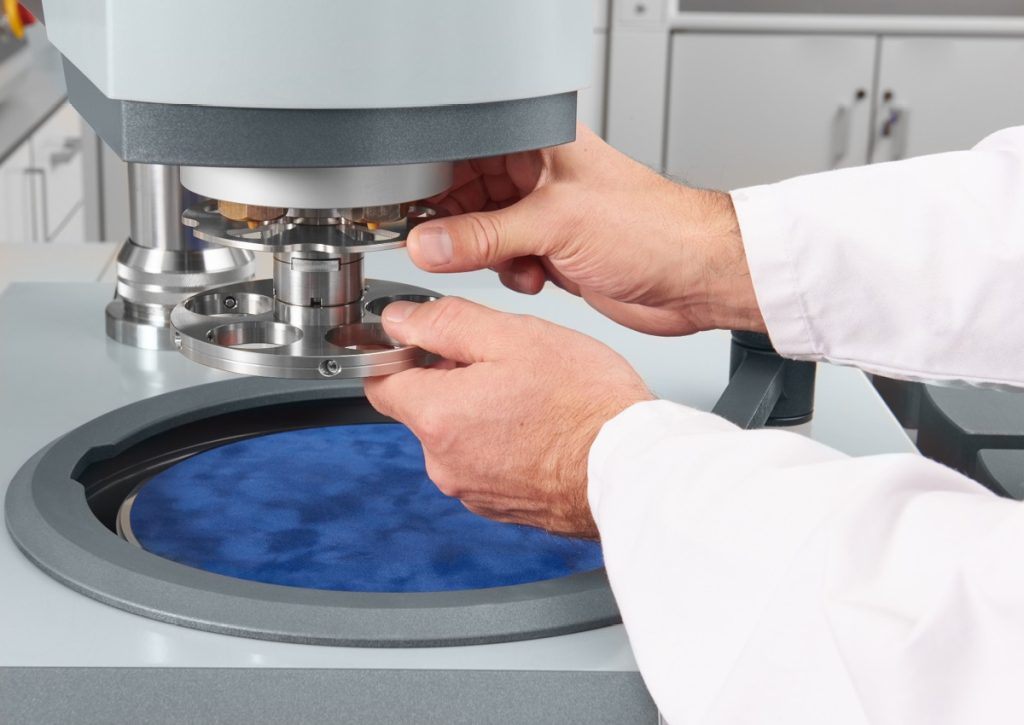

Easy cleaning/rinsing of bowl by lifting the working wheel (single-disc design)

Variable speed of working wheel and polishing head

Working wheel and polishing head: clockwise / counter-clockwise rotation

Impact-proof plastic bowl

Aluminium case, powder-coated

Economic LED illumination

Features

Working wheels	Ø 200/250 mm
No. of samples (single pressure)	1-5 samples Ø 40 mm
Single pressing force	variable, 5-80 N
Central pressing force	variable, 20-285 N (expert mode: 20-350 N)
Connection power	2.3 kVA
Drive power (grinder)	0.55 kW (S1)
Drive power (head)	0.18 kW (S1)
Speed (grinder)	30 - 600 min^-1
Speed (head)	30 - 160 min^-1
W x H x D	511 x 530-610 x 710 mm
Weight	~ 64 - 72 kg
Water connection	1x fresh water connection R½" max. 6 bars
Dosing system (option)	Topas ECO

TOPAS ECO

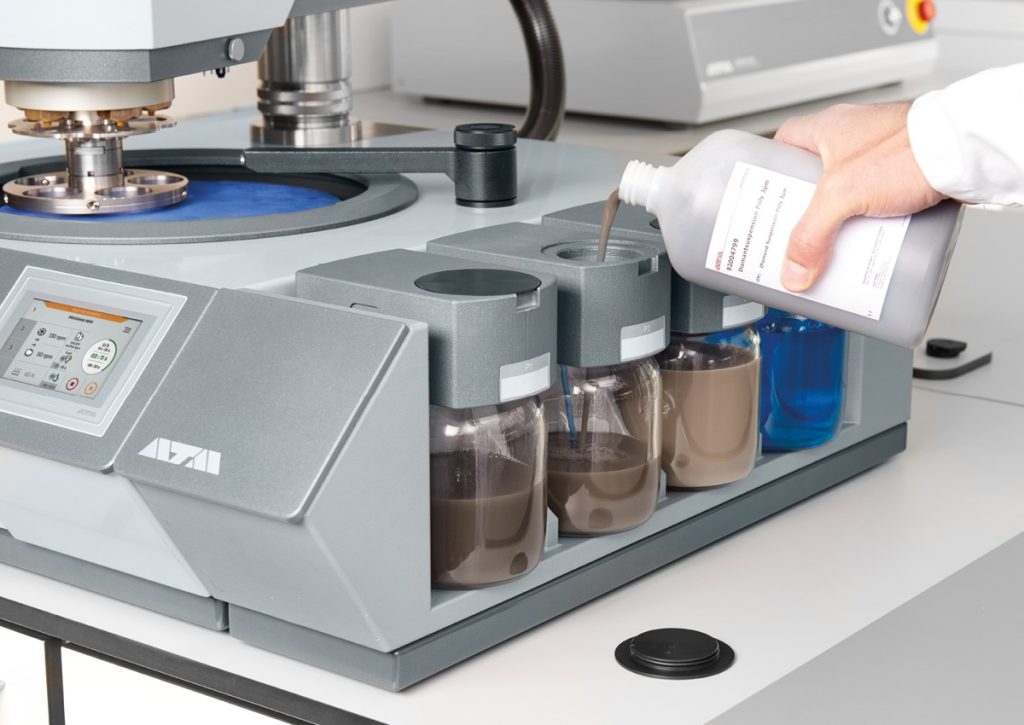

The fully automatic dosing system TOPAS ECO is suitable for use with the automatic grinders of the QPOL 250 A series. Four 500 ml glass bottles with screw caps hold 3 x suspension and 1 x lubricant or 4 x Dia-Complete and can be filled via a separate lid. They are easily removed for cleaning.

The dosing nozzles are inserted into a holder attached to the head. The dosing interval is controlled via the touch screen and the software of the QPOL 250 A devices. The backflushing function keeps the hoses clean.

Automatic dosing unit for
3x diamond suspension and 1x lubricant or
4x Dia-Complete

Dosing interval adjustable

Reverse rinsing function

Controlled by the control software of the QPOL 250 A grinders/polishers

For all QPOL 250 A grinders/polishers

Suspension containers refi llable and removable

incl. dosing nozzles (inserted into a holder attached to the head)
