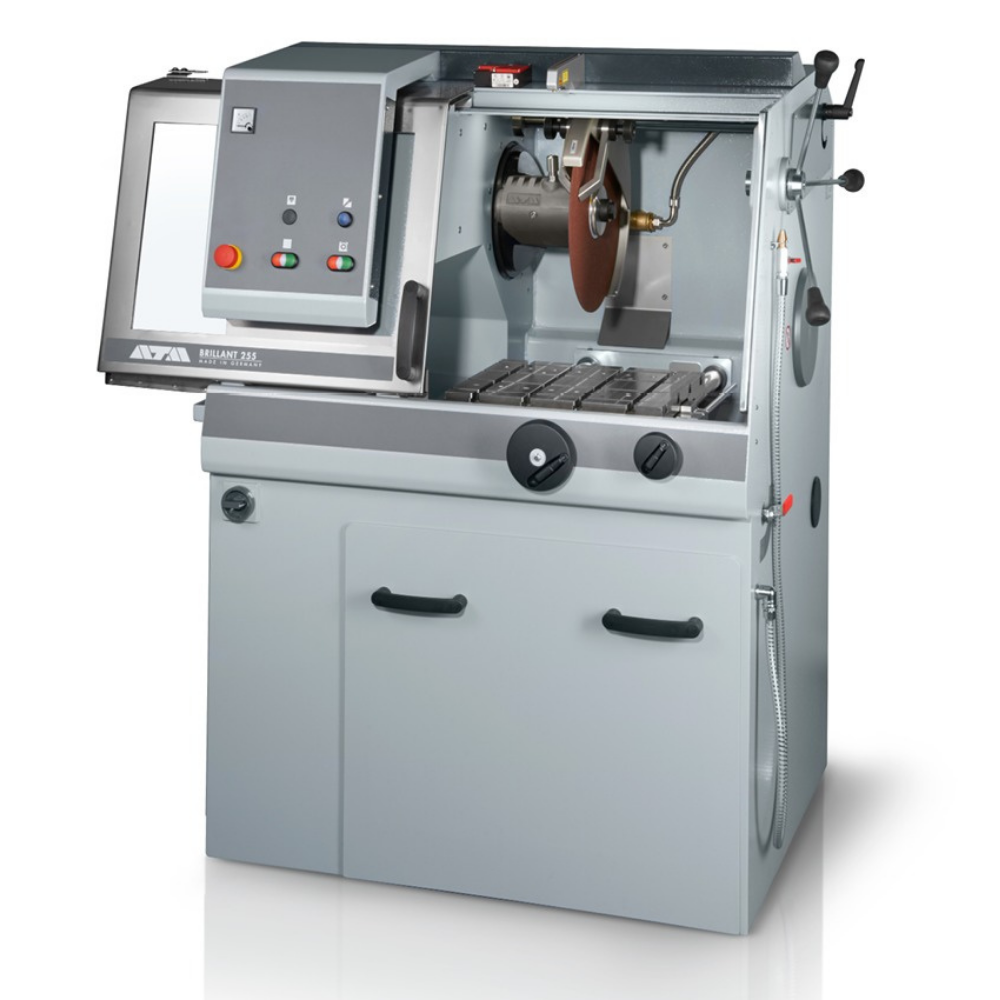

Qness (QATM) Floor-standing Cut-off machine Brillant 255

Brillant 255

Floor-standing Cut-off machine

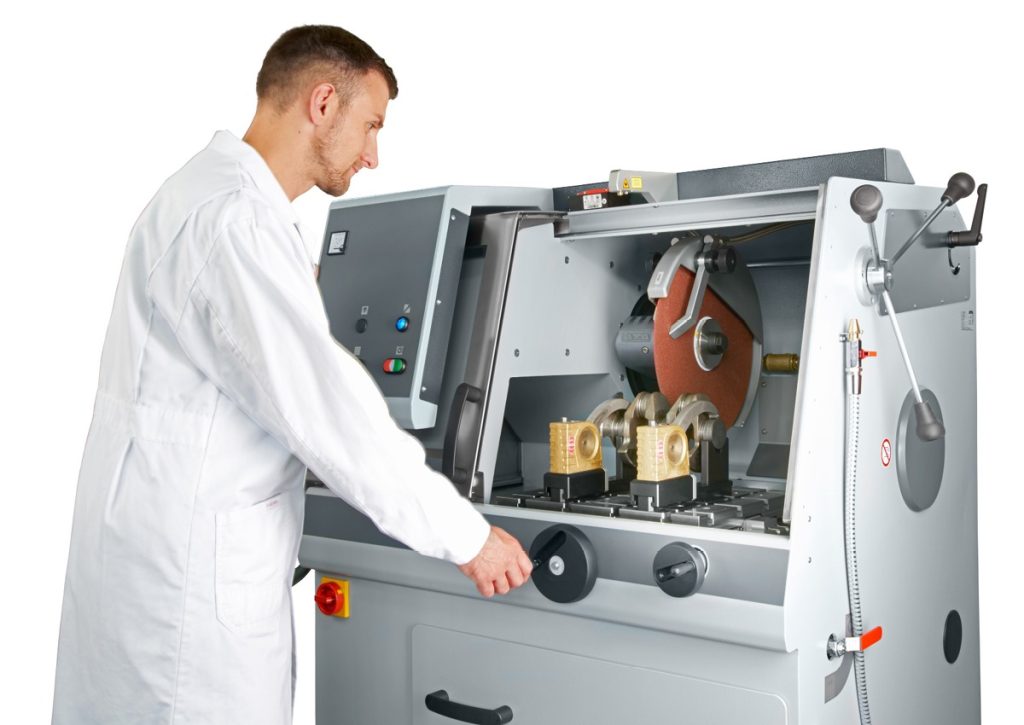

The universal wet abrasive cut-off machine Brillant 255 with manual travel and fine dynamic cutting allows precise, soft touch cutting with 2 axes in arbitrary directions (Y/X axis) and can be equipped with a manual Z-axis for parallel serial cuts (option).

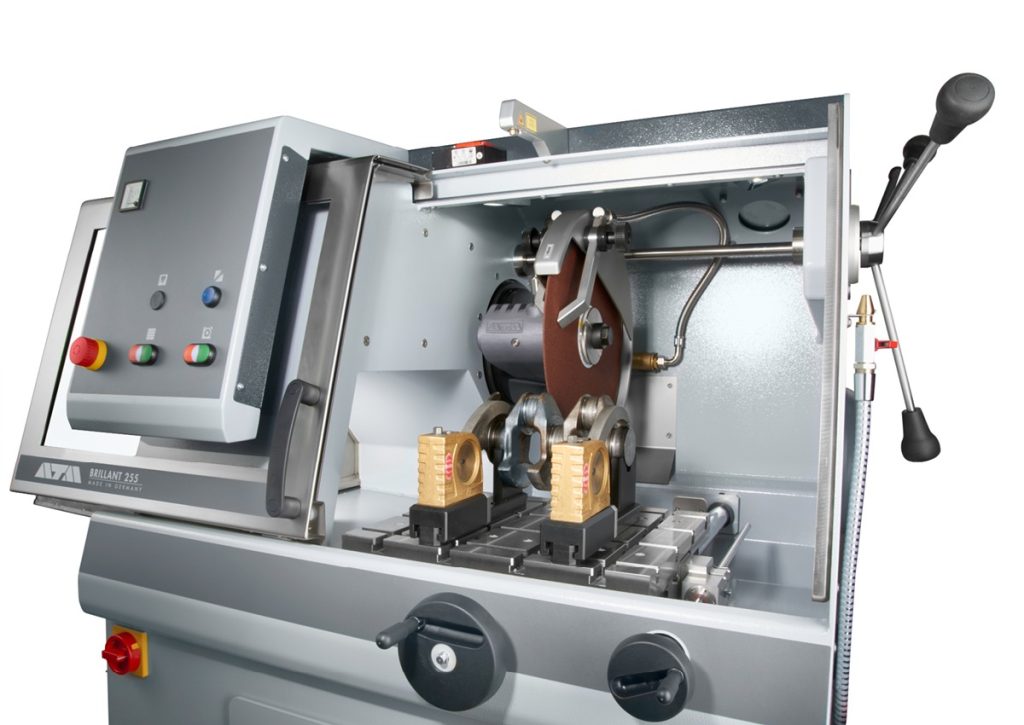

Side openings allow cutting continuous long parts in the spacious cutting chamber of this solid and powder-coatedaluminium construction. Complex geometric shaped samples can be fixed securely on the T-slot table using our reliable clamping systems. The vibration reducing design of the cutting arm allows a low noise cutting process.

Our approved LED cutting chamber illumination is energy saving, damage resistant and guarantees optimum illumination of the cutting chamber.



Product Advantages

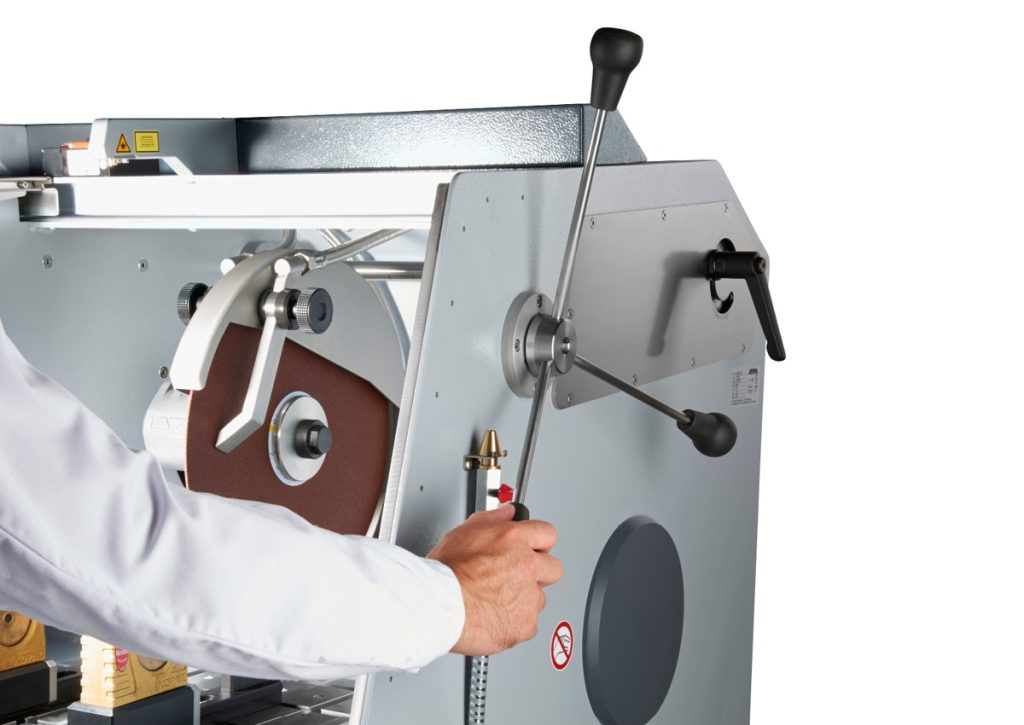

• Manual vertical movement
• Manual horizontal movement, with lateral wheel wrench (optional with locking)
• Large cutting chamber
• Opening on left- and righthand side for continuous long materials
• Large table
• Sliding door
• Safety standard with door interlocking system
• Flange with ceramic protector
• Easy-Nut
• Cutting chamber illumination with LED flex light
• Large range of different clamping tools and systems available
• Solid aluminium case construction, powder coated



Features



Cutting wheel	up to Ø 400 mm/16"
Max. cutting capacity	Ø 150 mm
Wheel flange size	Ø 32 mm
Y-axis manual	170 mm
X-axis manual	345 mm
Table WxD (Z-axis fixed, not adjustable)	550 x 375 mm, stainless
Table WxD (manual/automatic)	420 x 375 mm, stainless
T-slot	12 mm
Connection power (fixed speed/variable speed)	12 kVA
Drive power (main drive)	7-8 kW S1
W x H x D	1100 x 1600 x 930 mm
Weight	~ 450 kg
