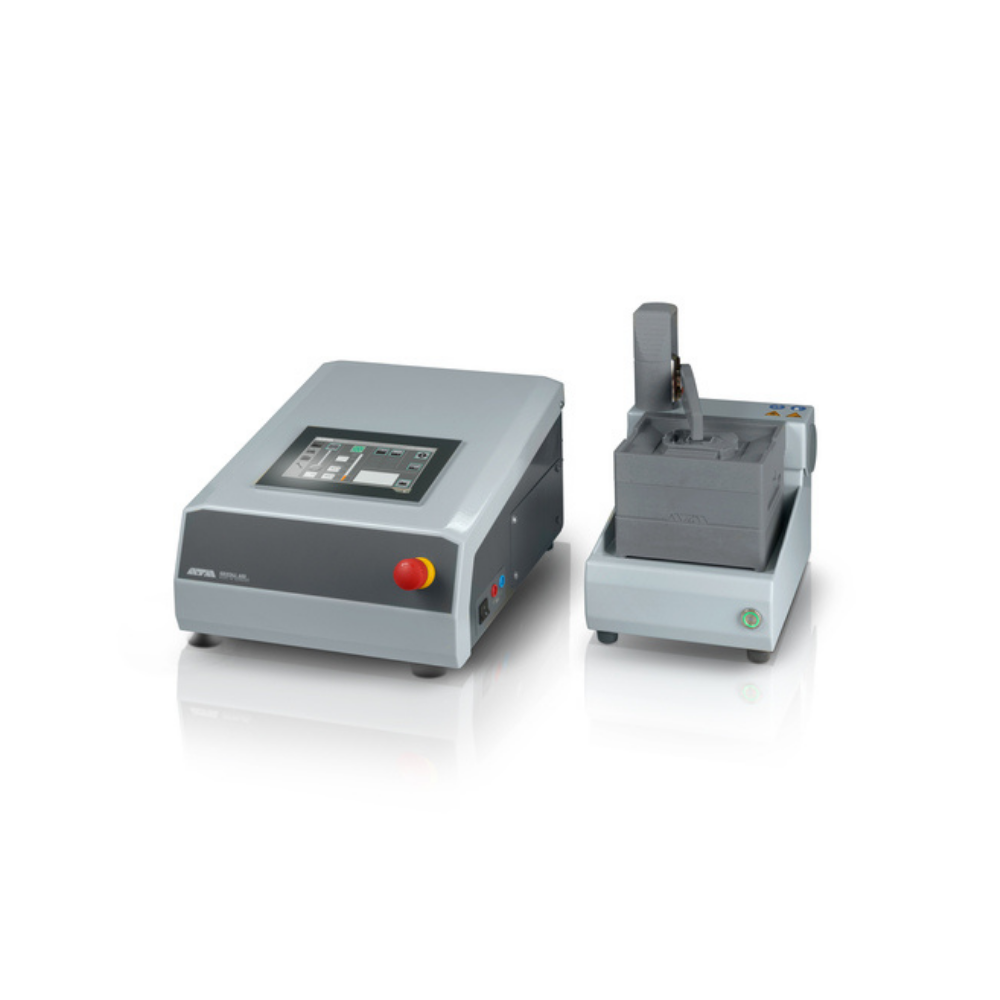

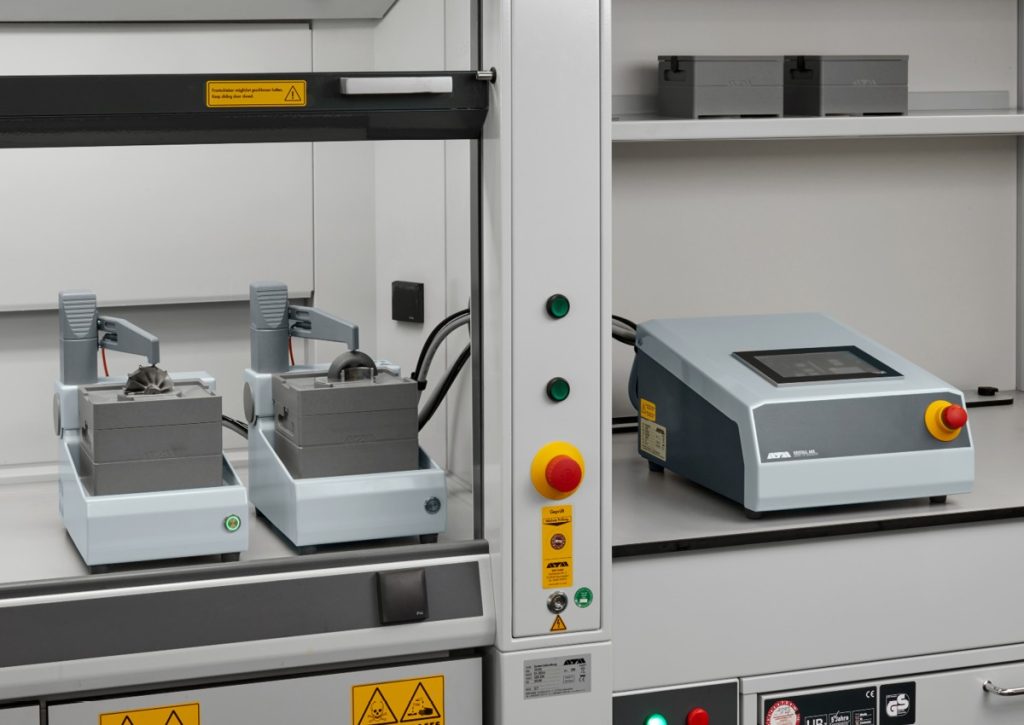

The QETCH 1000 (Kristall 680) is a fully automatic electrolytic polisher and etcher with intuitive touch-screen operation. The polishing and etching unit is separated from the control unit so that the QETCH 1000 (Kristall 680) may also be used in a lab fume cabinet.

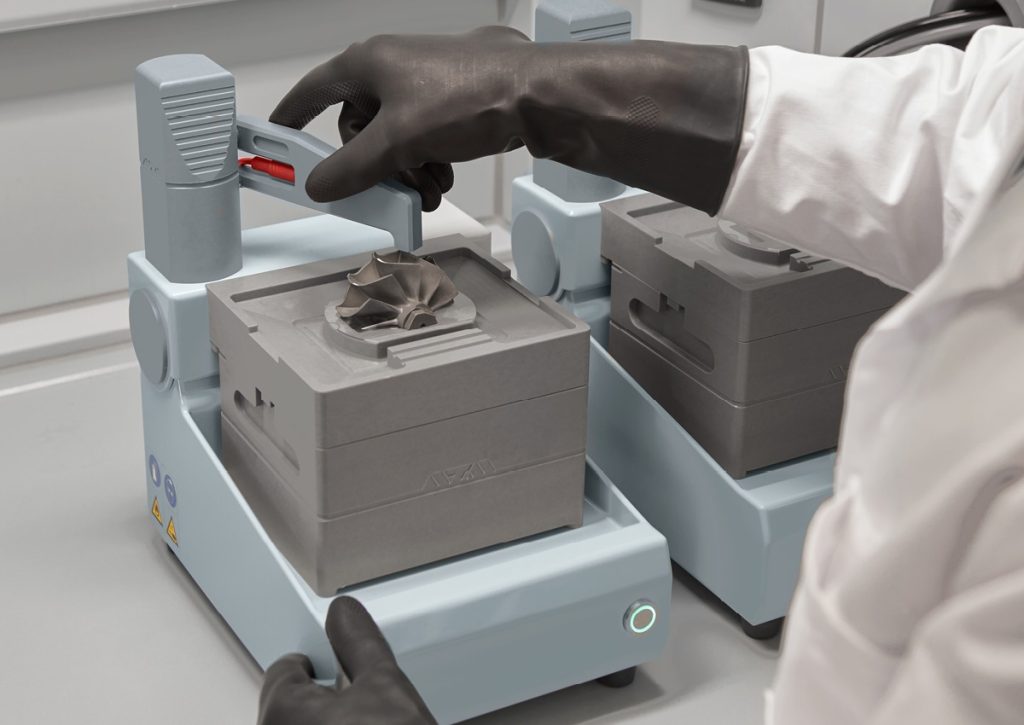

A scan function displays the current voltage curve of a material and provides polishing results quickly without structural changes. Handling of the polishing and etching unit was facilitated significantly by the interchangeable 1 Ltr. electrolytic tanks. Different electrolytes can be changed and easily stored with lid. The unit is cleaned with water by a washing program.
| Connection power | 2 kVA |
| Max. voltage | 90 V DC |
| Max. current | 14 A |
| Polishing duration | 1 sec - 25 min |
| Etching duration | 1 sec - 5 min |

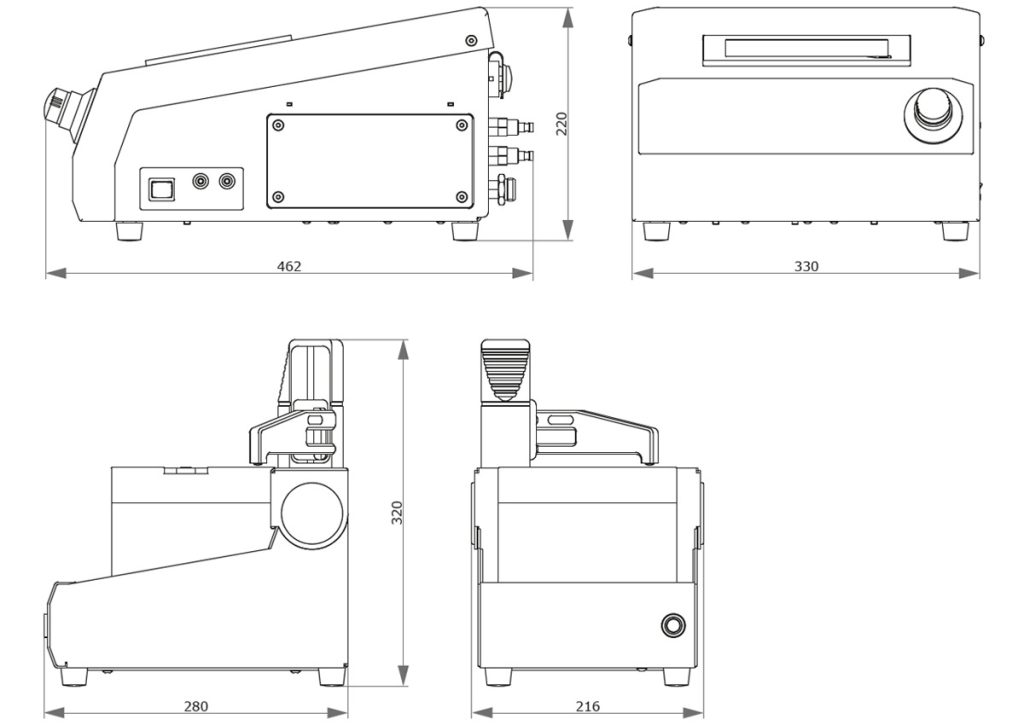

| W x H x D | 330 x 220 x 400mm |
| Weight | ~ 7 kg |
