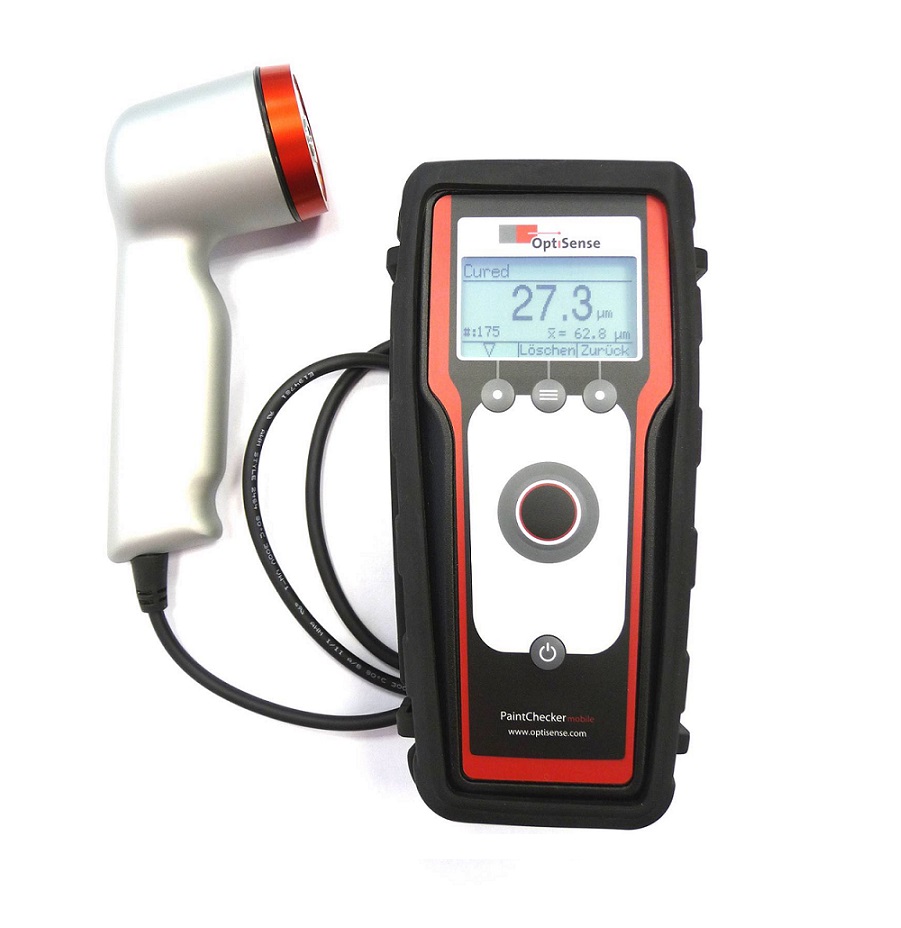

The PaintChecker MOBILE LED-R is a photothermal measuring device used for the non-contact and non destructive determination of coating thicknesses in accordance with DIN EN 15042-2. It is suitable for use with wet or dry organic coatings such as paints and glazes, both solvent and water-based, on various substrates, including metal, extruded rubber and ceramics.

[embed]https://optisense.com/files/parabol/media/loesungen/handgeraete/mobileLaserOperation.mp4[/embed]


Ask a question
Description

PaintChecker MOBILE LED-R

non-contact



Made of extruded, high-strength plastic, it is designed to be used manually and includes an infrared light source that is safe for the eyes as well as measurement data recording.

The fabricated cable that connects the sensor and the controller unit is 0.8 m in length.



Item

Value/Value range

Coating thickness range

typ. 1 - 300 μm (metallic substrate)*

typ. 0 -  60 μm (non-metallic substrate)*
Field sizeØ = 1 mm
Repetition ratemax. 1 Hz*
Measuring period64 .. 2.048 ms*
Risk group1
Laser powermax. 1,5 W
Laser operating modePulsed operation
Resolutionapprox. 1% of current measuring value**
Messgenauigkeiapprox. 3% of current measuring value**
Measuring distance35 mm
Distance tolerance± 3 mm
Angle tolerance± 15°
DimensionsL = 160 mm, W = 50 mm
Weightapprox. 225 g

* Depends on coating thickness/set of parameters

** Depends on paint/substrate combination
