Micrometer Steinmeyer 0800

Micrometer Steinmeyer 0800
Micrometer Steinmeyer 0800

Micrometer Steinmeyer 0800

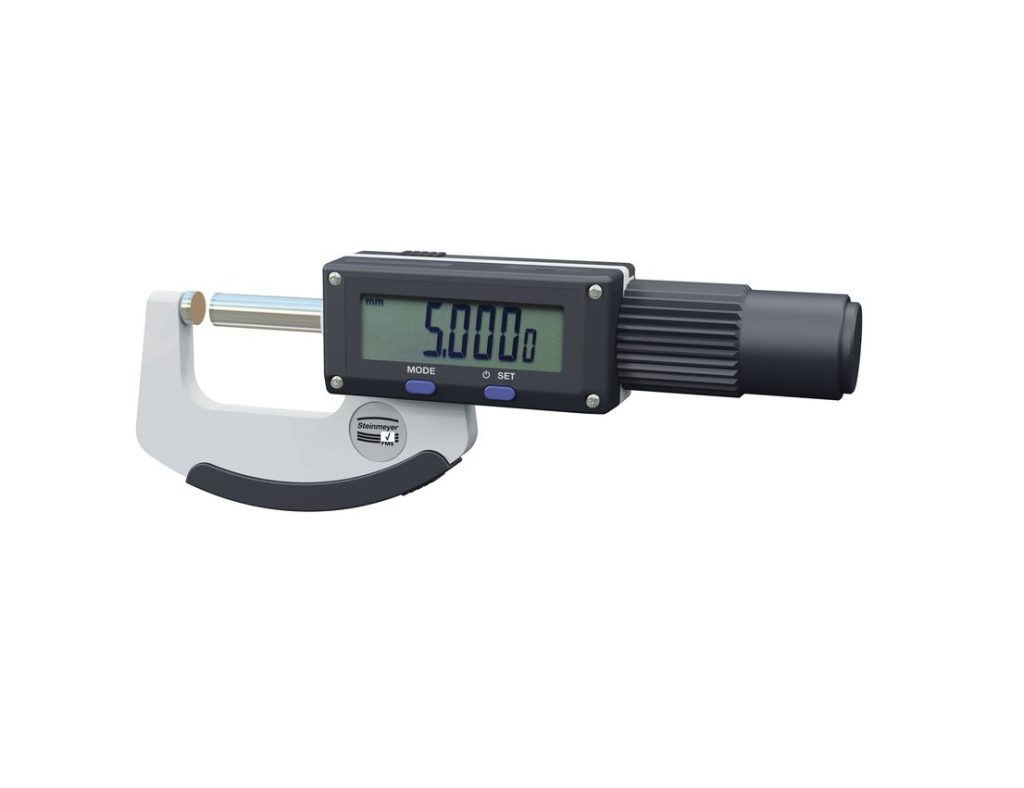

Digital micrometer 0800 with non-rotating spindle, 30 mm direct measuring range and protection class IP 65
Ask a question
Description

Steinmeyer 0800

  • Switchable resolution  10 µm, 1 µm, 0,5 µm / 0,0005“, 0,00005“, 0,00002“

  • Spindle pitch 2 mm

  • Spindle type Non rotating

  • Measuring force by ratcher approx. 7 N

  • Measuring surface diameter 8 mm

  • Repeatability 0,5 µm

  • Hight 7 segment display 12 mm

  • Interface Proximity (Sylvac)

  • Surface flatness < 0,3 µm

  • Parallelism of surface < 0,5 µm

  • Protection class IP65

  • Software functions MIN MAX, MIN-MAX Mem., HOLD, Present with knob

Application

  • to measure high accurate round and elongated components

  • versatile anvil geometrics possible

  • on site and measuring room
