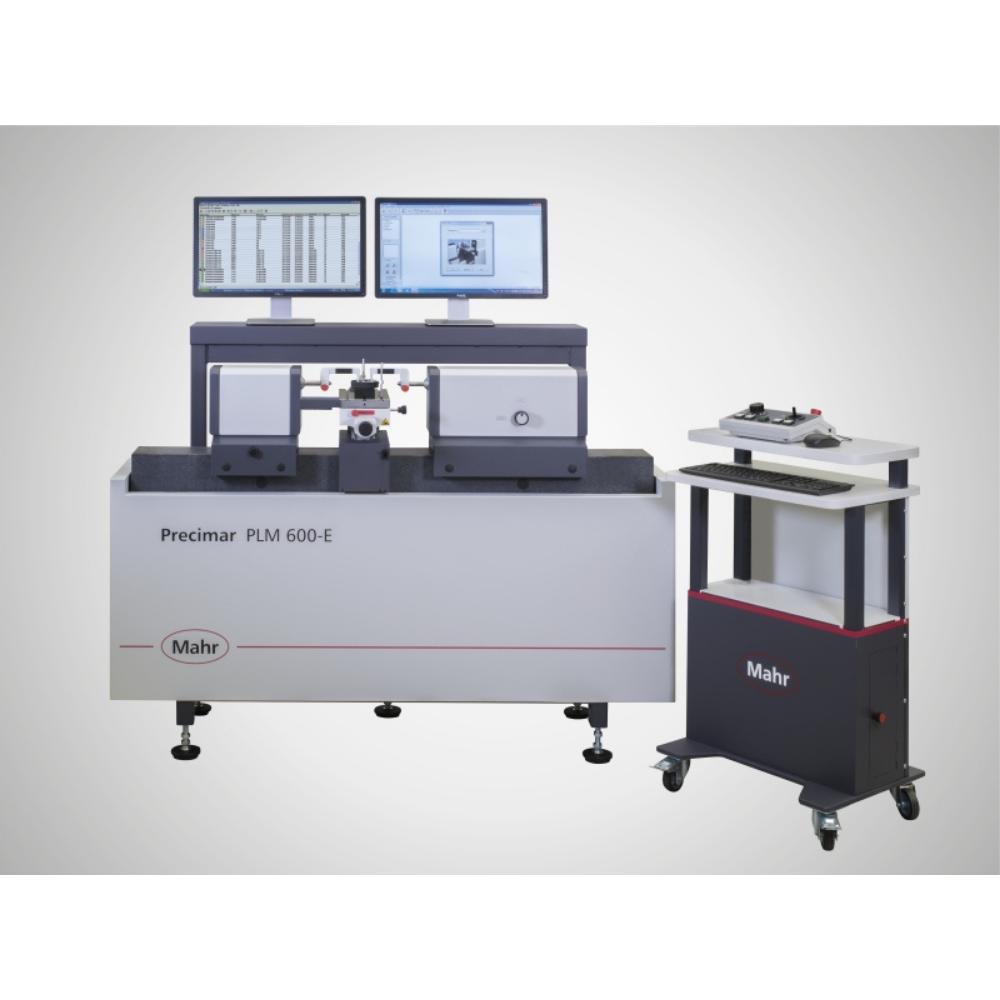

The PLM-E precision length measuring machine is an Abbe compliant comparator mounted on highly homogeneous rigid granite in a horizontal configuration
Ask a question
Description Specification

Precimar PLM 600-E Precision length measuring machine



  • Sensitive adjustment in 5 axes, and object table with a loading capacity of 35 kg

  • PC-based, multi-axis machine control, including PC workstation and 828 WIN "Free measurement" basic software

  • Simple operating procedure by means of measuring force-adjusted and joystick-controlled measuring slides with progressive deflection characteristic and automatic contact detection

  • Automatic detection of outside and inside measurements and computer-aided search for reversal points

  • The motorized measuring slide allows for high travel speeds

  • The CNC-controlled vertical and cross adjustment of the universal measuring table facilitates highly efficient measuring

  • State-of-the-art machine control (MarEcon)

  • Recording, processing, logging and transfer of measurement data via powerful software and menu-driven controls

  • Software compensation of thermal dimensional deviations

  • Very easy to set the measuring force using the software

  • Aerostatic guides for all slides mounted on the machine bed ensure low measurement uncertainties

  • Electronic generation of measuring force and automatic contacting

  • Subjective influences largely eliminated and unintended collisions with the test piece avoided.

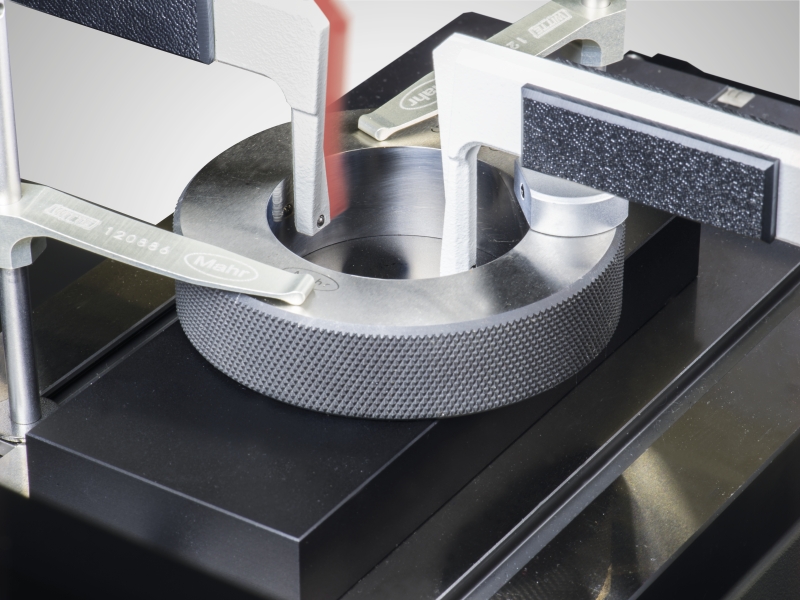

  • Automatic bore and inner thread measurement

  • Automatic TY adjustment: What’s unique is that a manual TY-adjustment is still possible

  • Motorized tilting axis (TB) for alignment. Alignment is carried out via the manual control panel or using the 828 WIN software.

  • A factory calibration or DAkkS/DKD calibration is available for the Precimar PLM-E

Measuring range for outer measurement [mm]

0 bis 600

Measuring range for inner measurement [mm]

0,5 to 445

Direct measuring range [mm]

200

Position deviation / error limit (L in mm) [µm] *

≤ (0.07 + L/2000)

Measuring uncertainty MPEE1 (L in mm) [µm]

≤ (0,085 + L/1500)

Measuring forces [N]

0 to 13.9

Repeatability [µm]

≤ 0.05

Contacting speed with joystick (max)

8 mm/s

Device length [mm]

1660

Mass [kg]

480

Table surface (A x B) mm

150 X 300
