MAHR Multimar Measuring elements

Multimar 844 Ta Shoulder anvils

Multimar 844 Ti Shoulder anvils

Multimar 844 Tp Anvils for measuring arms

Multimar 844 Ts Measuring anvils

Multimar 844 Tb Measuring anvils with measuring blades

Multimar 844 Tc Measuring anvils with measuring blades

Multimar 844 Td Anvils with round measuring faces

Ask a question

Description

Multimar 844 Ta Shoulder anvils

With cylindrical mounting shaft to attach into mounting attachments 844 Tma, 844 Tmi, 844 Tms

Flat, for external diameter

Made of hardened steel

Applications

For narrow collars such as centering shoulders and other similar measuring tasks

Technical data

Order no.	Mounting shaft diameter in mm
4500050	5 mm

Order no.

Mounting shaft diameter in mm

4500050

5 mm

Multimar 844 Ti Shoulder anvils

With cylindrical mounting shaft to attach into mounting attachments 844 Tma, 844 Tmi, 844 Tms

Semi-cylindrical, for internal diameters

Made of hardened steel

Applications

For narrow collars such as centering shoulders and other similar measuring tasks

Technical data

Order no.	Mounting shaft diameter in mm
4500055	5 mm

Order no.

Mounting shaft diameter in mm

4500055

5 mm

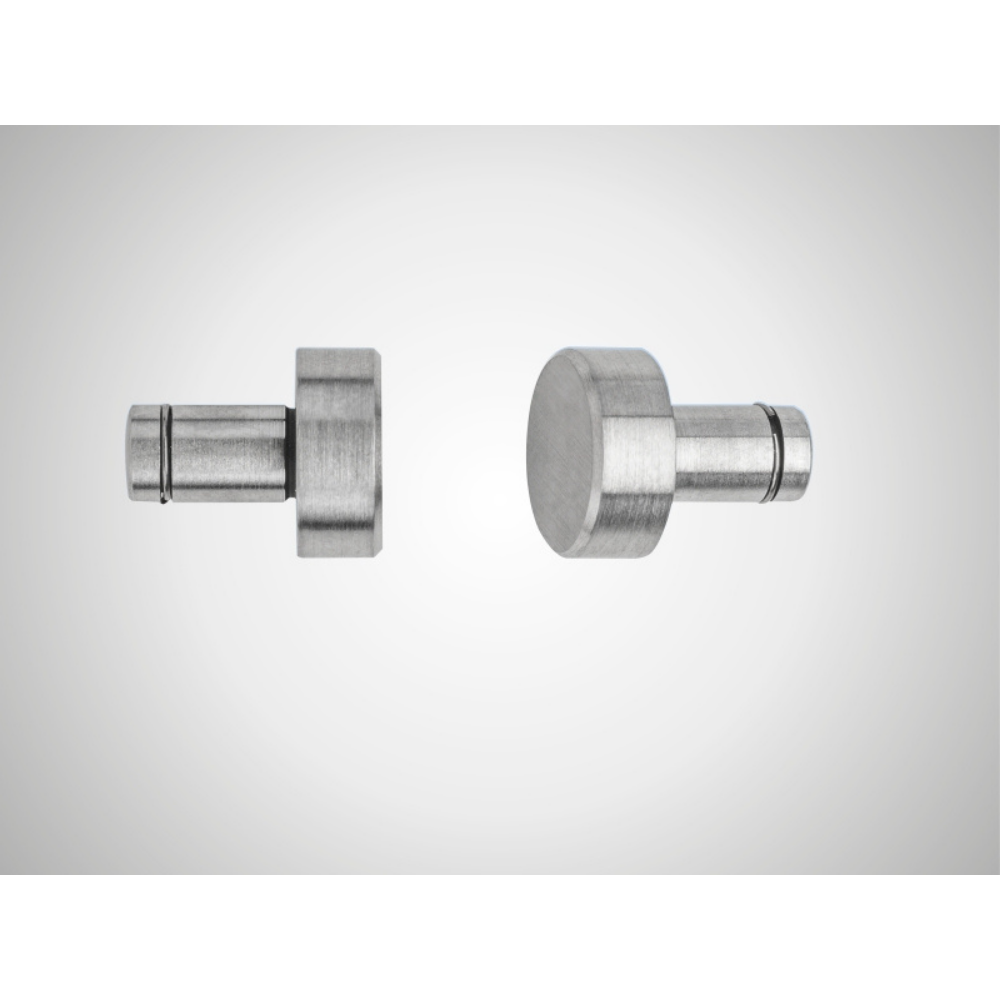

Multimar 844 Tp Anvils for measuring arms

Made of hardened steel

With cylindrical mounting shank and retainer ring which allows free rotation inside the bore of measuring arms 844 Te

Applications

Flat; for external diameters, distances and widths

Technical data

Order no.	Mounting shaft diameter in mm
4500040	3,5 mm

Order no.

Mounting shaft diameter in mm

4500040

3,5 mm

Multimar 844 Tb Measuring anvils with measuring blades

With cylindrical mounting shaft to attach into mounting attachments 844 Tma, 844 Tmi, 844 Tms

Can be moved in the mounting attachment for setting the measuring depth

With round measuring blade for inner and outer measurements

Suitable for workpieces with narrow recesses up to 3 mm deep

Made of hardened steel

Applications

For measuring centering shoulders and recesses on internal and external diameters; consists of a pin type holder, which is be moved to set the measuring depth in Mounting Attachment 844 Tm and a mounted measuring blade

Technical data

Order no.	Platelet diameter	Mounting shaft diameter in mm	Adjustment range start in mm	Adjustment range	Adjustment range end in mm
4503015	11 mm	5 mm	0 mm	0 - 20	20 mm
4503016	11 mm	5 mm	20 mm	20 - 40	40 mm

Order no.

Platelet diameter

Mounting shaft diameter in mm

Adjustment range start in mm

Adjustment range

Adjustment range end in mm

4503015

11 mm

5 mm

0 mm

0 - 20

20 mm

4503016

11 mm

5 mm

20 mm

20 - 40

40 mm

Multimar 844 Tc Measuring anvils with measuring blades

With cylindrical mounting shaft to attach into mounting attachments 844 844 Tma, 844 Tmi, 844 Tms

Can be moved in the mounting attachment for setting the measuring depth

With long measuring blade

Suitable for workpieces with narrow recesses up to 7.5 mm deep

Made of hardened steel

Applications

For measuring centering shoulders and recesses on internal and external diameters; consists of a pin type holder, which is be moved to set the measuring depth in Mounting Attachment 844 Tm and a mounted measuring blade

Technical data
