  • Multimar 844 Tmi Mounting attachement

  • Multimar 844 Te Measuring arms

  • Multimar 844 Tw Depth stops for 844 Tma, 844 Tmi, 844 Te

  • Multimar 844 Ty Holder for measuring rollers

  • Multimar 844 Tf Stand

Ask a question
Description

Multimar 844 Tmi Mounting attachement

Multimar 844 Tmi Mounting attachement

  • For outside (844 Tma) and inside diameters (844 Tmi)

  • Stainless steel

  • Lateral mm scale for easy positioning and adjustment of measuring limit stops

  • Reversible measuring arms on measuring arm holders to increase the measuring range

  • With ø 5 mm mounting bore for inserting interchangeable 844 Ta, 844 Ti, 844 Tb, 844 Tc, 844 Td, 844 Tz and 844 Tv measuring anvils

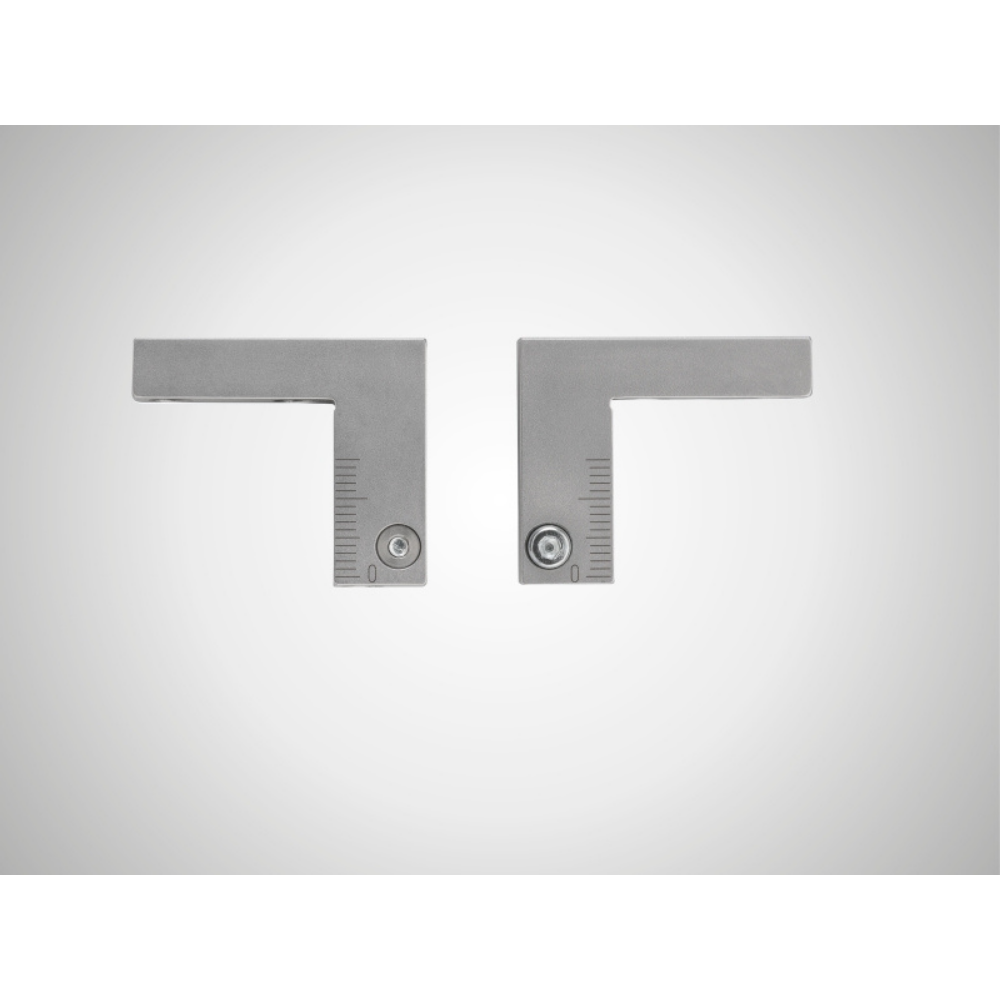

Multimar 844 Te Measuring arms

Multimar 844 Te Measuring arms

  • For outer and inner diameters

  • Stainless steel

  • Lateral mm scale for easy positioning and adjustment of measuring limit stops

  • Reversible measuring arms on measuring arm holder to increase the measuring range

  • 3.5 mm diameter holder for inserting interchangeable measuring anvils 844 Tp, 844 Ts, 844 Tk, 844 Tr and 844 Tg

Technical data

Order no.Throat depth in mm
4503024

25 mm
4503025

35 mm
4503026

70 mm
4503027

100 mm



Multimar 844 Tw Depth stops for 844 Tma, 844 Tmi, 844 Te

Multimar 844 Tw Depth stops for 844 Tma, 844 Tmi, 844 Te

  • Stops with stall protected 3-point support

  • Hardened stop pins

  • Interchangeable and adjustable

Applications

  • For adjustment of the measuring depth in horizontal measuring position

  • Precise stops in one plane for repeatable measurements

  • To be mounted on 844 Tma, 844 Tmi, 844 Te

  • For easy setting of the measuring depth, a mm scale is engraved on the measuring arms 844 Tma, 844 Tmi and 844 Te

  • For percise stetting of the measuring depth (i.e. for taper measurements) gage blocks can be used



Multimar 844 Ty Holder for measuring rollers

Multimar 844 Ty Holder for measuring rollers

With location bolts for the measuring rollers 706 Vr Vr and provision for a stop and stop pin

Applications

  • Determining the pitch diameter of outer threads







Multimar 844 Tf Stand

Multimar 844 Tf Stand

  • Inspector has both hands free to insert the workpiece

  • Display unit is always in operator's line of view

  • Strong, stable cast pedestal with clamping device for universal probe

Applications

  • For stationary use of the Universal Measuring Instrument 844 T Measuring range 25 - 110 mm
