MAHR Multimar 844 T Universal measuring instrumen

MAHR Multimar 844 T Universal measuring instrumen

  • External and internal measurement of lengths, widths, diameters, distances
  • External and internal threads
  • Centering shoulders, narrow collars, recesses and grooves
  • External and internal tapers
  • External and internal gears
  • etc.

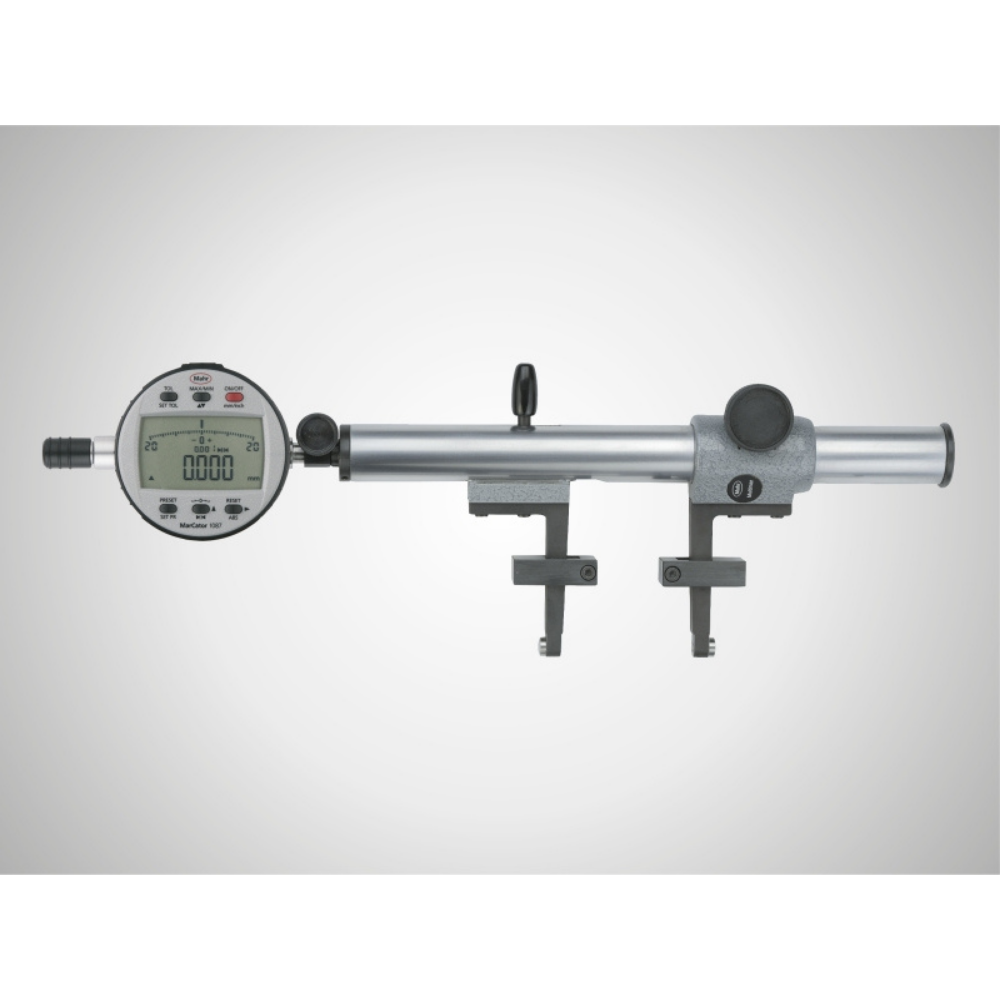

Multimar 844 T Universal measuring instrument

  • For easy adaptation to individual measuring tasks, optional accessories include:

    - Interchangeable measuring arms

    - Contact blocks

    - Stop elements
  • The movable measuring arm carrier is mounted on a high precision ball bearing guide for reduced play and friction

    - Results in high measuring sensitivity, accuracy and free movement
  • Stable support elements for repeatable measurements
  • Constant measuring force with integrated measuring force spring
  • Reversible measuring force direction for outside and inside measurement
  • Highly stable, precision ground, hard chrome plated guide tube
  • Lightweight construction with core made from carbon fiber reinforced plastic (CRP) tube, for measuring range 1000-1500 mm
  • The stationary measuring arm holder can be moved along the guide tube and clamped for coarse adjustment



Technical data

Order no.Application range outsideApplication range insideMeasuring forceProduct weight
4503001

0 - 85

30 - 115

5 N

0.78 kg
4503002

80 - 235

110 - 265

5 N

1.01 kg
4503003

230 - 585

260 - 615

5 N

1.59 kg
4503004

580 - 985

610 - 1015

5 N

2.22 kg
4503005

970 - 1470

1000 - 1500

10 N

2.52 kg
4503006

1470 - 1970

1500 - 2000

10 N

2.68 kg
4503007

1970 - 2470

2000 - 2500

10 N

2.86 kg
4503008

2470 - 2970

2500 - 3000

10 N

3.26 kg
4503009

2970 - 3470

3000 - 3500

10 N

3.43 kg
4503010

3470 - 3970

3500 - 4000

10 N

3.62 kg
4503011

3970 - 4470

4000 - 4500

10 N

3.81 kg
