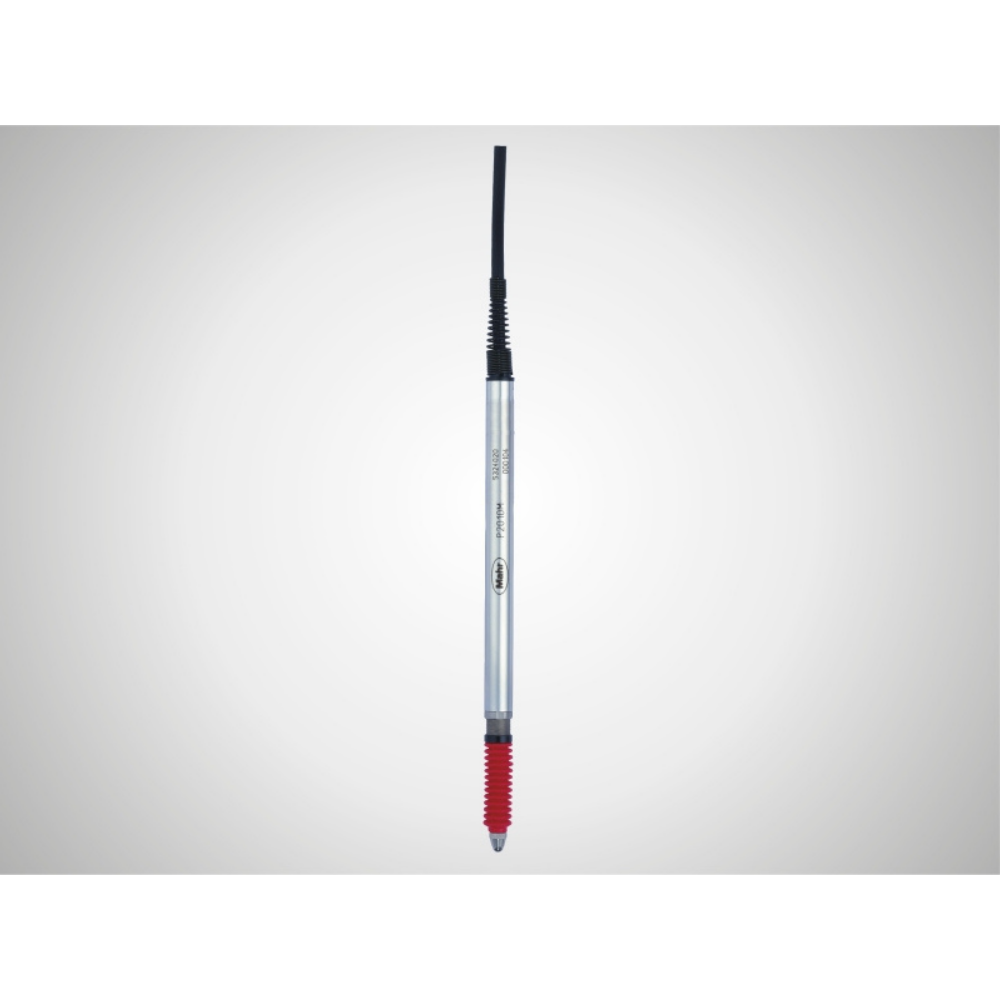

MAHR Millimar Inductive probe

MAHR Millimar Inductive probe
MAHR Millimar Inductive probe

MAHR Millimar Inductive probe

  • Millimar 1303 Inductive probe

  • Millimar 1304 K Inductive probe

  • Millimar 1318 Inductive probe

  • Millimar 1340 Inductive probe

  • Millimar P1300 Inductive probe

  • Millimar P2000 Inductive probe

Ask a question
Description

Millimar 1303 Inductive probe

Millimar 1303 Inductive probe

  • Highly robust as the measuring system is recessed from the guide and mounting shaft

  • Outstanding clamping properties

  • Measuring pin mounted in rotary stroke bearing

  • Measuring pin can be lifted using wire lifter

  • Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone







Millimar 1304 K Inductive probe

Millimar 1304 K Inductive probe

  • Highly robust as the measuring system is recessed from the guide and mounting shaft

  • Outstanding clamping properties

  • Measuring pin mounted in rotary stroke bearing

  • Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone









Millimar 1318 Inductive probe

Millimar 1318 Inductive probe

  • Dial test indicator inductive probe

  • Flexible probe adjustment to contact surface

  • Highly robust as the measuring system is recessed from the guide and mounting shaft

  • Outstanding clamping properties

  • Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone







Millimar 1340 Inductive probe

Millimar 1340 Inductive probe

  • Only for use in conjunction with the Millimar C 1240 M compact length measuring instrument

  • Maximum measuring accuracy and minimum linearity deviation <0.01 %, i.e. 0.4 ?m over the entire measuring range

  • Probe protected against dirt and moisture, can therefore be used close to production

  • Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone









Millimar P1300 TB/TA ohne Kabel Inductive probe

Millimar P1300 TB ohne Kabel Inductive probe

  • Tesa compatibility

  • Tesa half-bridge technology

  • with compressed-air retraction

  • Very easy to service: cables and probes can be separated via the plug-in connector

  • Measuring pin mounted in rotary stroke bearing

  • Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone





Millimar P1300 MA/MB  ohne Kabel Inductive probe

Millimar P1300 MA ohne Kabel Inductive probe

  • Mahr compatibility

  • Proven Mahr half-bridge technology

  • Very easy to service: cables and probes can be separated via the plug-in connector

  • Easy to convert to pneumatic lifting

  • Measuring pin mounted in rotary stroke bearing

  • Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone



Millimar Inductive probe

Millimar P2000 - Inductive probe

  • Models with or  without pneumatic lifter or load

  • Measuring pin mounted in rotary stroke bearing

  • High linearity over the entire measuring range

  • Excellent electromagnetic shielding (EMC)

  • All probes can be easily converted from axial to radial by mounting a slip on cap, included in the scope of supply

  • Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone
