MAHR Millimar Column length measuring instruments

MAHR Millimar Column length measuring instruments
MAHR Millimar Column length measuring instruments

MAHR Millimar Column length measuring instruments

  • Millimar S 1840 F Compact column amplifier

Ask a question
Description

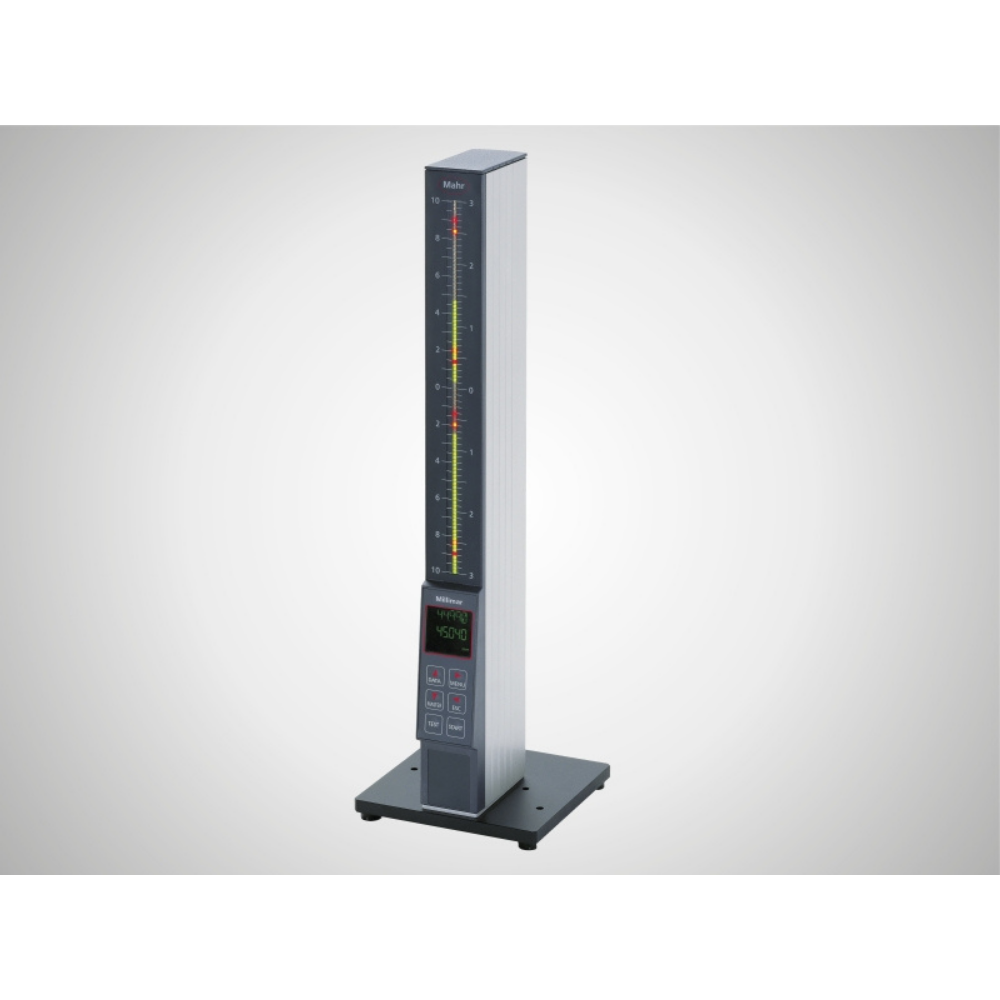

Millimar S 1840 F Compact column amplifier

  • Easy-to-read 3-color analog display

  • Measurement in conjunction with inductive probes (e. g. Mahr P2004) or electronic plug gages, etc.

  • 2 inputs for inductive probes (compatible with probes from Mahr, Federal)

  • Extensive calculation of input signals - ±A, ±B and all combinations

  • Dynamic measurements - Max, Min, Max-Min, Average

  • Programmable either via the integrated keypad or the RS-232 interface by means of MS -Windows® configuration software

  • Programmable warning and tolerance limits (exceeding the limit causes the color to change from yellow to red)

  • Backlit, two-line LCD for displaying measured values, help texts and units of measurement

  • 1 analog output

  • 3 digital inputs (e.g. measurement start, master measurement)

  • 3 digital outputs for good – reject – rework, measuring time
