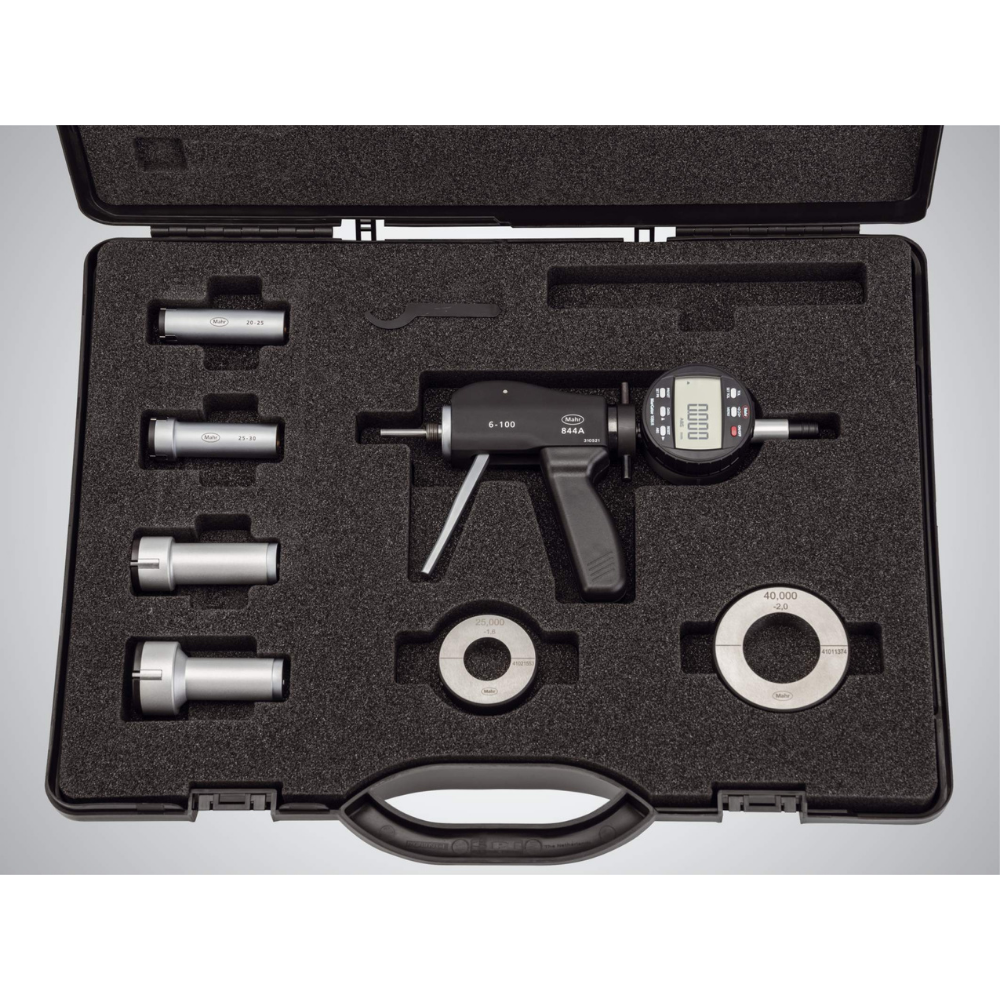

MAHR Micromar 844 AS Self-centering measuring pistol

MAHR Micromar 844 AS Self-centering measuring pistol
MAHR Micromar 844 AS Self-centering measuring pistol

MAHR Micromar 844 AS Self-centering measuring pistol

  • Threaded connection for changing the measuring head

  • Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°

  • Anvils from 12 mm are carbide tipped

  • From 12 mm the anvils can be used to measure the bottom of a bore

  • From 40 mm all measuring heads are made from aluminium to reduce weight

  • Measuring value indication is always easy to read when using an electronic dial indicator with a rotatable display

  • instruction manual

  • setting rings

  • key for replacing measuring heads (from 30 mm)

  • case

Ask a question
Description

Micromar 844 AS Self-centering measuring pistol

Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchNotes error limit
4487750

6 - 12

.25 - .4725"

  • Over the full length of the anvils

  • Indicator is not taken into consideration

4487751

12 - 20

.4725 - .775"

  • Over the full length of the anvils

  • Indicator is not taken into consideration

4487752

20 - 50

.775 - 2"

  • Over the full length of the anvils

  • Indicator is not taken into consideration

4487753

50 - 100

2 - 4"

  • Over the full length of the anvils

  • Indicator is not taken into consideration

4487760

6 - 12

.25 - .4725"

0.0005 / .00002"

  • Over the full length of the anvils

  • Indicator is not taken into consideration

4487761

12 - 20

.4725 - .775"

0.0005 / .00002"

  • Over the full length of the anvils

  • Indicator is not taken into consideration

4487762

20 - 50

.775 - 2"

0.0005 / .00002"

  • Over the full length of the anvils

  • Indicator is not taken into consideration

4487763

50 - 100

2 - 4"

0.0005 / .00002"

  • Over the full length of the anvils

  • Indicator is not taken into consideration

Applications

For measuring:

  • Through holes

  • Blind holes

  • Centering shoulders
