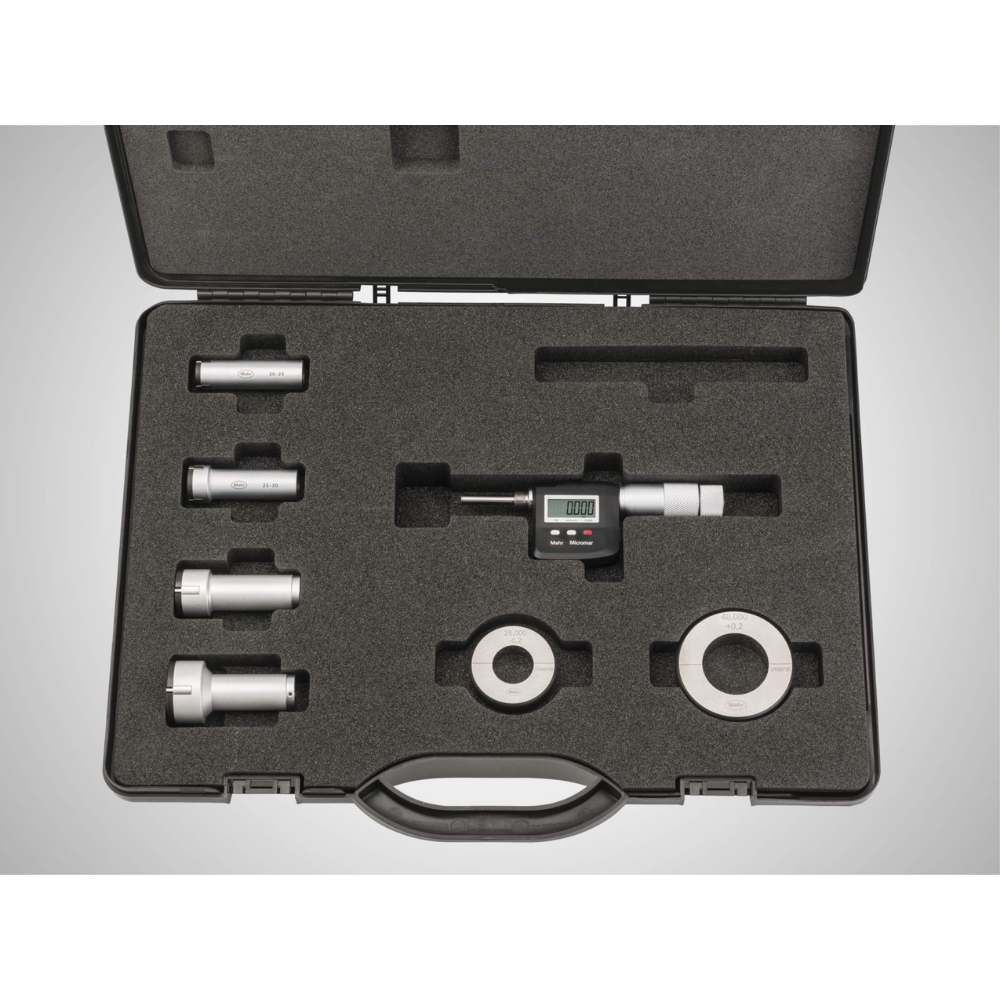

MAHR Micromar 44 EWR Digital self-centering inside micrometer sets (Копировать)

MAHR Micromar 44 EWR Digital self-centering inside micrometer sets (Копировать)
MAHR Micromar 44 EWR Digital self-centering inside micrometer sets (Копировать)

MAHR Micromar 44 EWR Digital self-centering inside micrometer sets (Копировать)

  • Threaded connection for changing the measuring head

  • Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°

  • Anvils from 12 mm are carbide tipped

  • From 12 mm the anvils can be used to measure the bottom of a bore

  • From 40 mm all measuring heads are made from aluminium to reduce weight

  • Digimatic

  • Opto RS-232C

  • USB

  • Battery life approx. 2 years

  • IP 52

  • basic units 44 EWg

  • measuring heads 44 Ak

  • setting rings

  • battery

  • instruction manual

  • case

8.5 mm

Ask a question
Description

Micromar 44 EWR Digital self-centering inside micrometer sets

Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchError limit µmNotes error limit
4191160

6 - 12

.25 - .4725"

0.001 / .00005"

4 µm

over the full length of the anvils
4191161

12 - 20

.4725 - .775"

0.001 / .00005"

4 µm

over the full length of the anvils
4191162

20 - 50

.775 - 2"

0.001 / .00005"

4 µm

over the full length of the anvils
4191163

50 - 100

2 - 4"

0.001 / .00005"

5 µm

over the full length of the anvils



Applications

  • Through holes

  • Blind holes

  • Centering shoulders

Functions

  • RESET (set display to zero)

  • ABS (display can be set to zero without losing reference to preset)

  • PRESET (for entering a numerical value)

  • mm/inch

  • LOCK function (key lock)

  • DATA (data transmission via connection cable)
