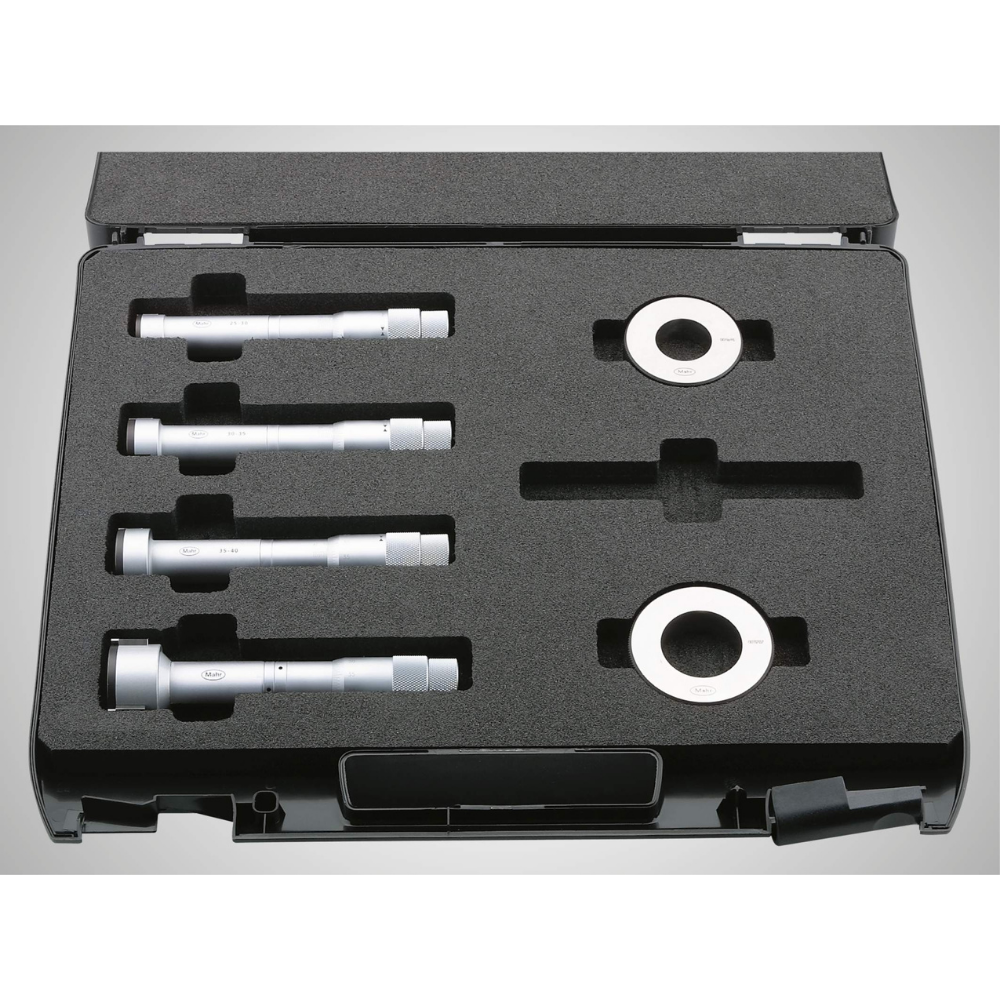

MAHR Micromar 44 AS Self-centering inside micrometer set

MAHR Micromar 44 AS Self-centering inside micrometer set
MAHR Micromar 44 AS Self-centering inside micrometer set

MAHR Micromar 44 AS Self-centering inside micrometer set

  • Operating and display units with satin chrome finish

  • Stainless spindle is hardened throughout and ground

  • Rapid drive with integrated ratchet

  • Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°

  • Anvils from 12 mm are carbide tipped

  • From 12 mm the anvils can be used to measure the bottom of a bore

  • From 40 mm all measuring heads are made from aluminium to reduce weight

  • instruction manual

  • setting rings

  • key for replacing measuring heads (from 30 mm)

  • allen key

  • case

Ask a question
Description

Micromar 44 AS Self-centering inside micrometer set



Technical data

Order no.Measuring range mmGraduation value mmError limit µmNotes error limit
4190350

6 - 12

0,001

4 µm

over the full length of the anvils
4190351

12 - 20

0,001

4 µm

over the full length of the anvils
4190352

20 - 50

0,005

4 µm

over the full length of the anvils
4190353

50 - 100

0,005

5 µm

over the full length of the anvils



Applications

For measuring:

  • Through holes

  • Blind holes

  • Centering shoulders
