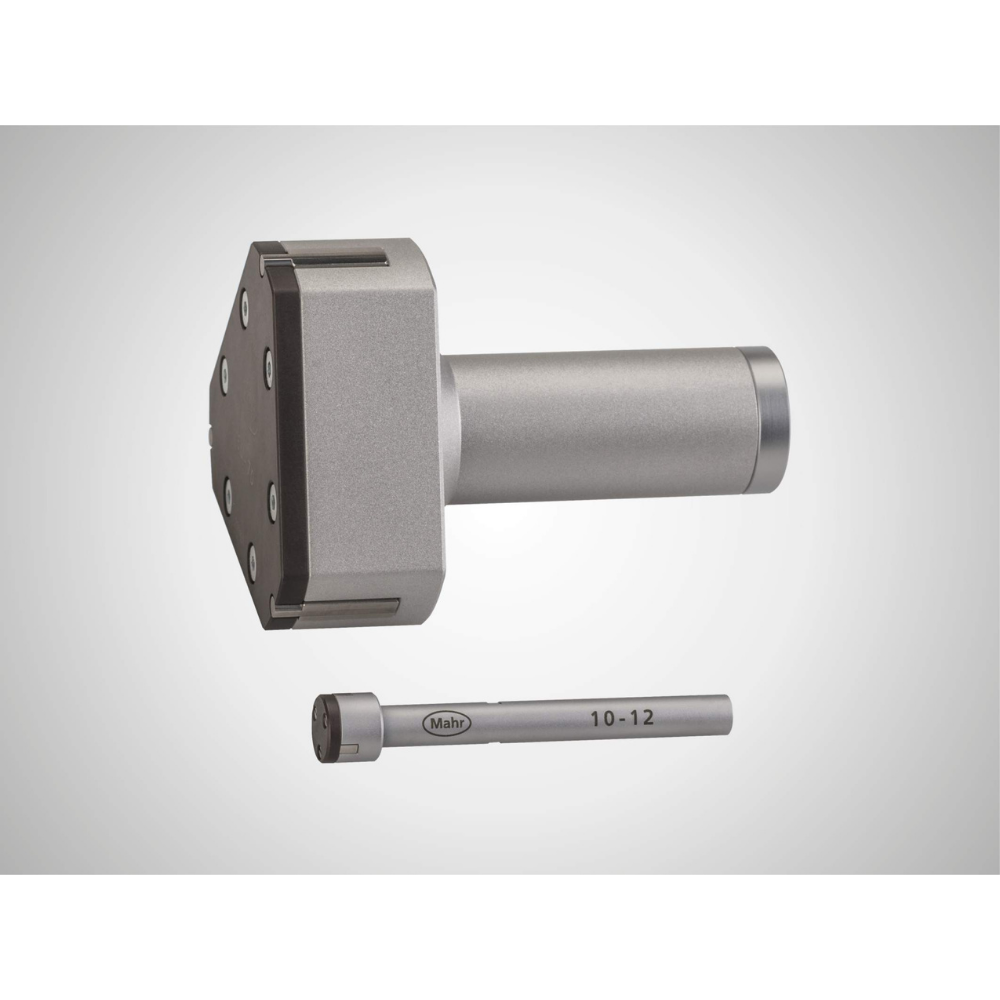

MAHR Micromar 44 Ak Measuring head

MAHR Micromar 44 Ak Measuring head
MAHR Micromar 44 Ak Measuring head

MAHR Micromar 44 Ak Measuring head

  • Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°

  • Anvils from 12 mm are carbide tipped

  • From 12 mm the anvils can be used to measure the bottom of a bore

  • From 40 mm all measuring heads are made from aluminium to reduce weight

Ask a question
Description

Micromar 44 Ak Measuring head

Technical data

Order no.Measuring range mmMeasuring range inch
4190330

6 - 8

.25 - .3125"
4190331

8 - 10

.3125 - .4"
4190332

10 - 12

.4 - .4725"
4190333

12 - 16

.4725 - .625"
4190334

16 - 20

.625 - .775"
4190335

20 - 25

.775 - 1"
4190336

25 - 30

1 - 1.2"
4190337

30 - 40

1.2 - 1.6"
4190339

40 - 50

1.6 - 2"
4190340

50 - 60

2 - 2.35"
4190341

60 - 70

2.35 - 2.75"
4190042

70 - 85

2.75 - 3.35"
4190043

85 - 100

3.35 - 4"
4190044

100 - 125

4 - 4.9"
4190045

125 - 150

4.9 - 5.9"
4190046

150 - 175

5.9 - 6.9"
4190047

175 - 200

6.9 - 7.9"
