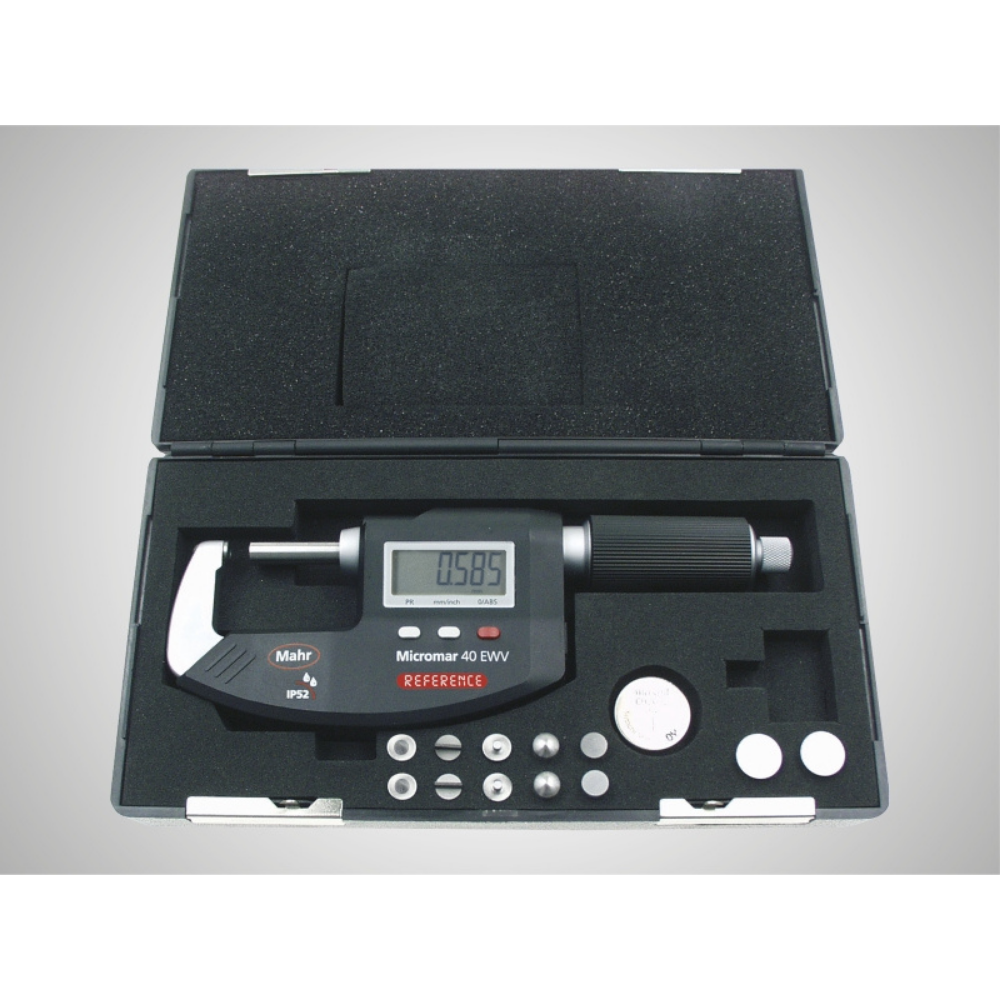

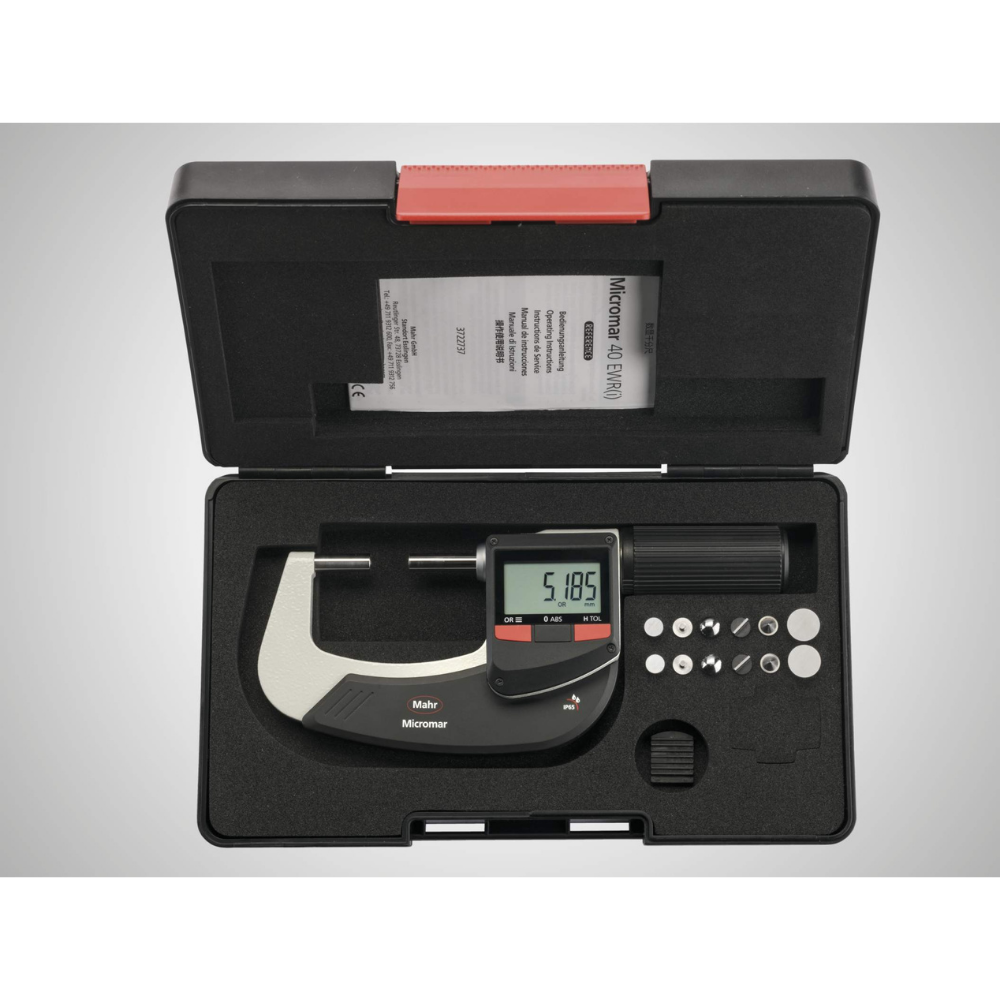

MAHR Micromar 40 EWV Digital micrometer

MAHR Micromar 40 EWV Digital micrometer

  • High contrast analog display
  • Sliding spindle
  • Stainless spindle is hardened throughout and ground
  • Spindle and anvil are carbide tipped
  • Rapid drive
  • Ratchet is integrated in the thimble
  • Chrome plated steel frame, heat insulated
  • With mounting bores for measuring anvils with a shaft Ø 3.5 mm
  • Digimatic
  • Opto RS232C
  • USB
  • Battery life approx. 2 years
  • IP 52
  • instruction manual
  • battery
  • case
  • anvils 40 Efk, 40 Efl
  • anvils 40 Eak, 40 Eal
  • anvils 40 Erk
  • anvils 40 Epk
  • anvils 40 Esk
  • anvils 40 Etk, 40 Etl
  • 4151722 without measuring anvils

8.5 mm

Micromar 40 EWV Digital micrometer

Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchError limit µmSpindle diameterSpindle thread pitch_mmMeasuring force (N)
4151722

0 - 25

0 - 1"

0.001 / .00005"

4 µm

6.5 mm

0.635 mm

5 - 10
4151723

0 - 25

0 - 1"

0.001 / .00005"

4 µm

6.5 mm

0.635 mm

5 - 10



Functions

  • RESET (set display to zero)
  • ABS (display can be set to zero without losing reference to preset)
  • mm/inch
  • PRESET (for entering a numerical value)
  • DATA (data transmission via connection cable)
  • LOCK function (key lock)
