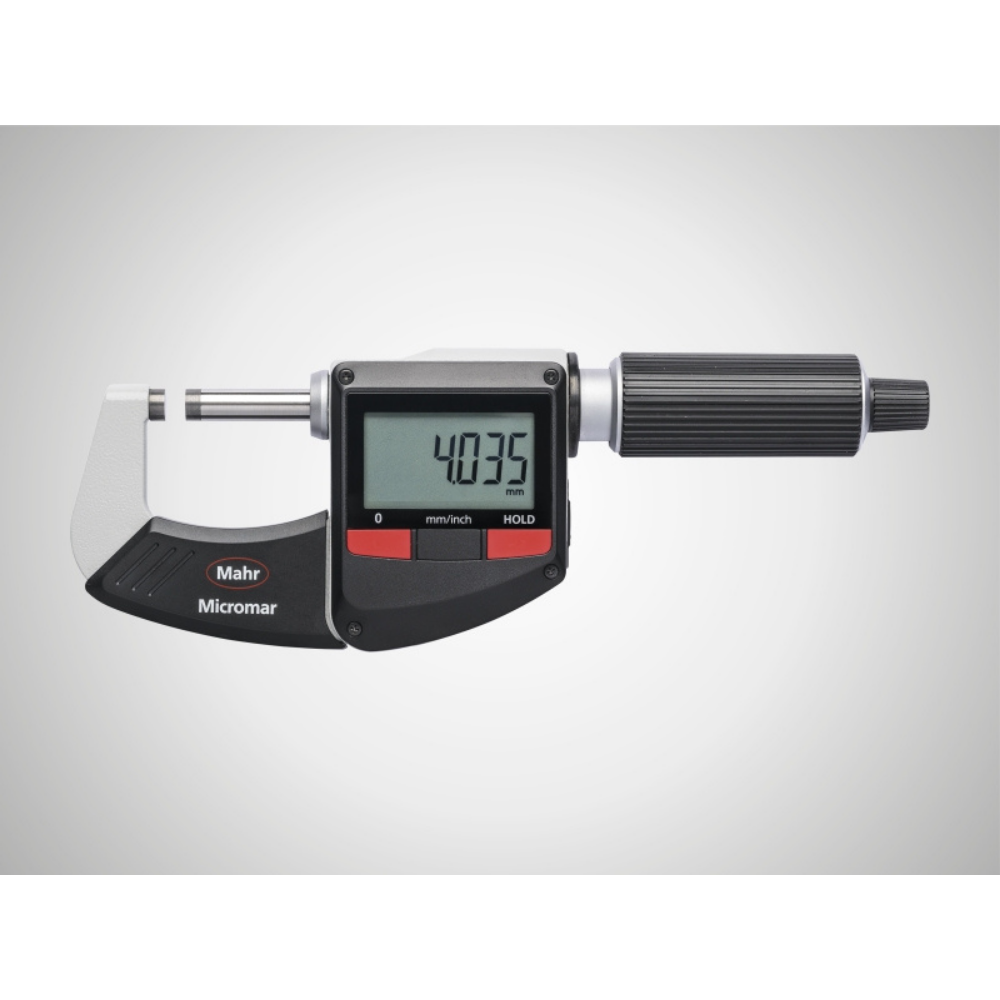

MAHR Micromar 40 ER Digital Micrometer
MAHR Micromar 40 ER Digital Micrometer
MAHR Micromar 40 ER Digital Micrometer
MAHR Micromar 40 ER Digital Micrometer
High contrast analog display
Stainless spindle is hardened throughout and ground
Spindle and anvil are carbide-tipped
Rapid drive
Ratchet is integrated in the thimble
IP 40
instruction manual
battery
case
10 mm
Ask a question
Description
Micromar 40 ER Digital Micrometer
Technical data
Order no.
Measuring range mm
Measuring range inch
Resolution mm/inch
Error limit µm
Spindle diameter
Spindle thread pitch_mm
Measuring force (N)
4157010
0 - 25
0 - 1"
0.001 / .00005"
2 µm
6.5 mm
0.5 mm
5 - 10
Functions
RESET (set display to zero)
mm/inch
HOLD (storage of measured values)
LOCK function (key lock)
