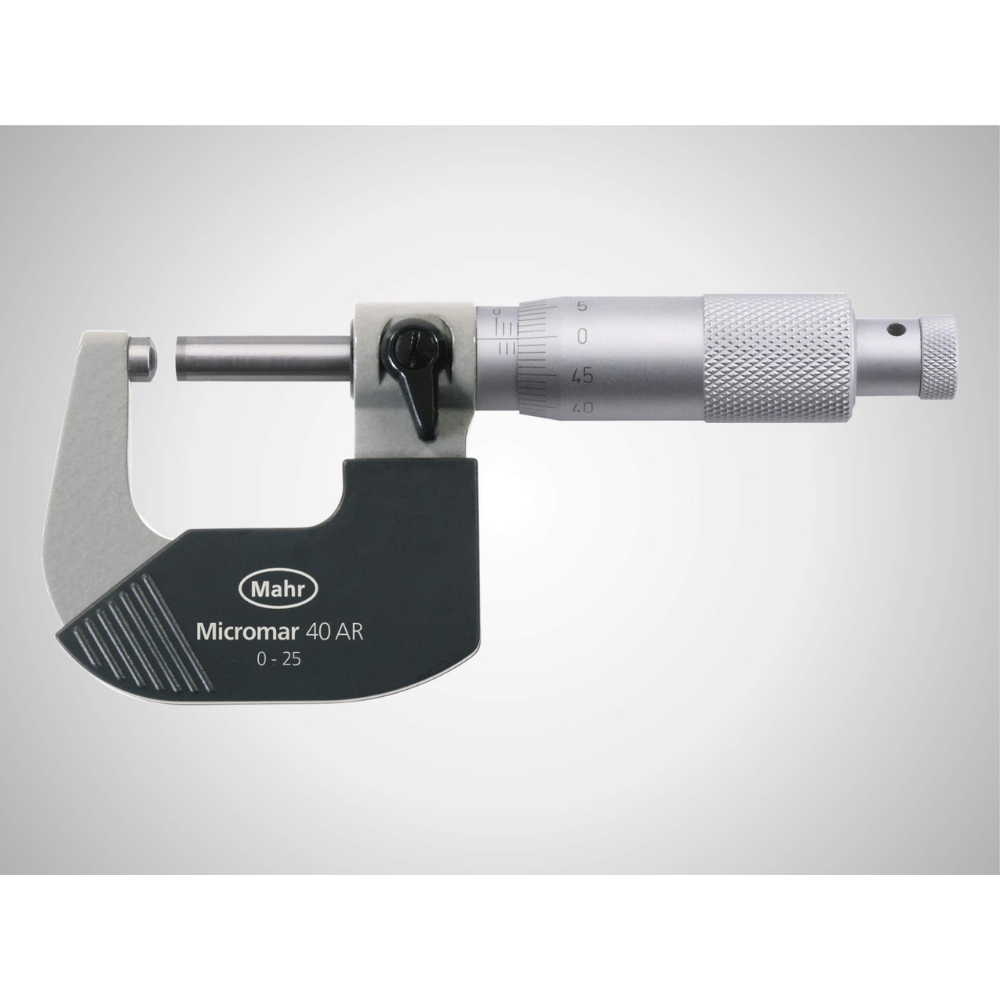

MAHR Micromar 40 AR Micrometer

MAHR Micromar 40 AR Micrometer
MAHR Micromar 40 AR Micrometer

MAHR Micromar 40 AR Micrometer

  • Measuring surfaces: spherical anvil, planar spindle

  • Operating and display units with satin chrome finish

  • Hard lacquered steel frame

  • Spindle and anvil made of hardened steel, carbide tipped

  • Heat insulators

  • Rapid drive with integrated ratchet

  • Locking device

  • instruction manual

  • setting standard (measuring range of 25-50 mm)

  • case

Ask a question
Description

Micromar 40 AR Micrometer



Technical data

Order no.Measuring range mmGraduation value mmError limit µmSpindle diameterSpindle thread pitch_mmMeasuring force (N)
4134250

0 - 25

0,01

4 µm

6.5 mm

0.5 mm

5 - 10
4134251

25 - 50

0,01

4 µm

6.5 mm

0.5 mm

5 - 10



Applications

For measuring the thickness of pipe walls
