MAHR MarSurf UD 130 Aspheric 2D Asphere measuring station

MarSurf UD 130 Aspheric 2D Asphere measuring station

• Early detection of deviations, thus avoiding costly reworking.

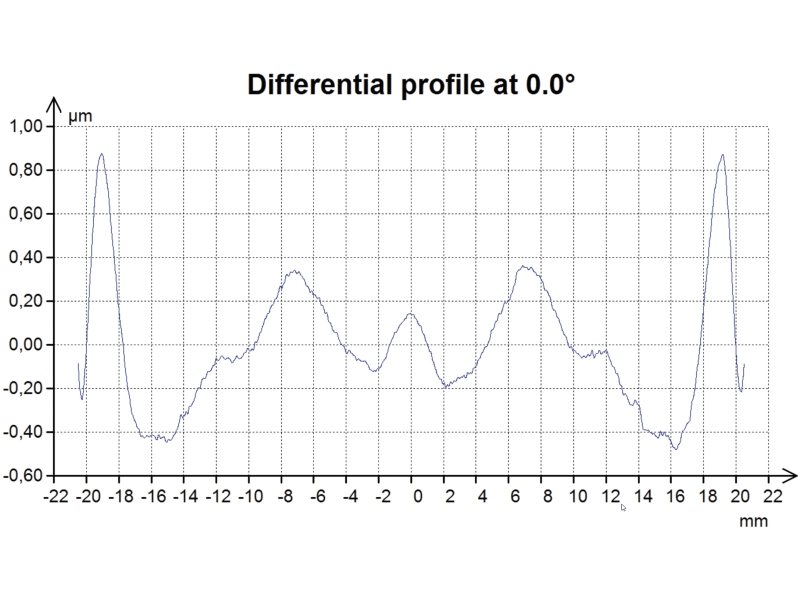

• Differential profile output in machine-readable format for controlling the machine tool.

• Different types of rotationally symmetrical aspheres can be measured with one measuring system. No additional investment required.
• Measuring range up to 130 mm
• High measuring speed and dynamics (up to 5 mm/s for large lenses / up to 0.1 mm/s for microlenses)

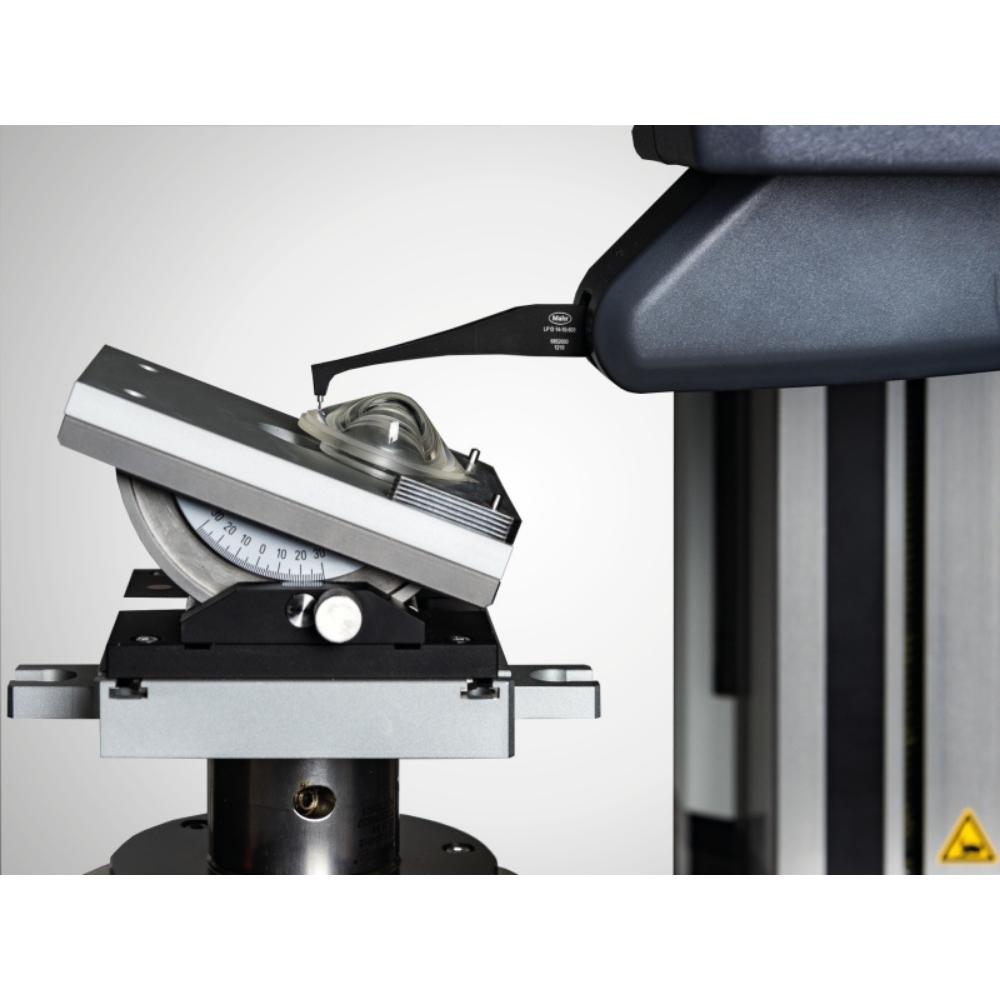

• Fully positionable stylus tip.

• Improved probe system dynamics by increased rigidity and attenuation as well as a lower moment of inertia:
  - optimized overall design of the probe system
  - innovative choice of materials
• Probe arm with integrated chip for:
  - detecting and identifying the probe arm,
  - checking that the probe arm is inserted correctly,
  - providing information from probe arm.

• The high-precision MarSurf UD 130 is the basis for the accurate measurement of your workpieces. The vertical resolution of 2 nm and form deviations of < 300 nm guarantee the exact reproduction of your asphere.
• Probe arm change with no need to recalibrate.
• Lenses with steep sides can be measured.
