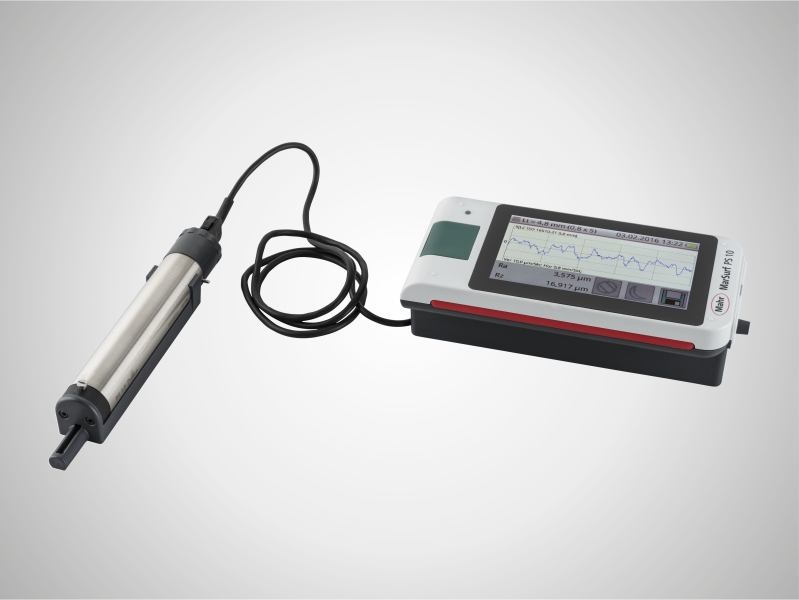

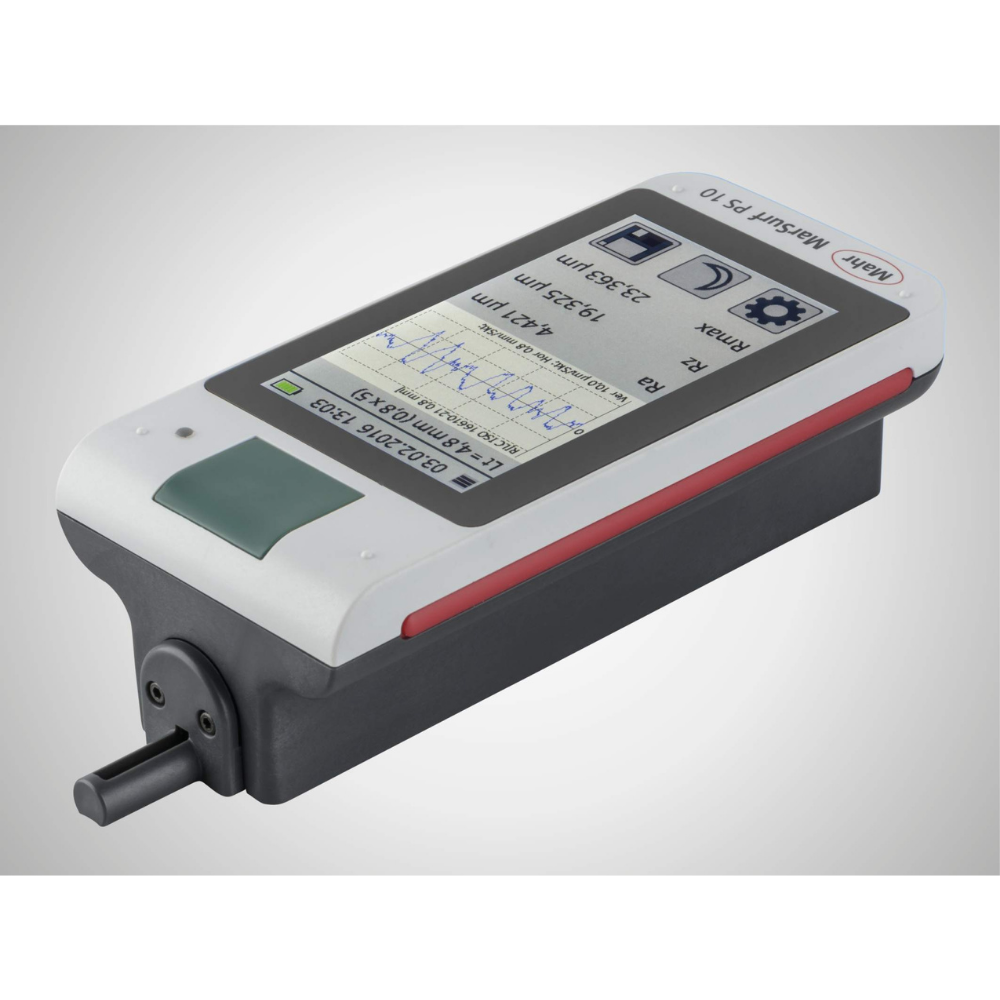

MAHR MarSurf PS 10 Mobile roughness measuring instrument

"SMAHRT Surf" – simple, smart and mobile

Compact roughness measuring instrument for mobile use

Simple and intuitive to use: as easy as using a smart phone

Large, illuminated 4.3" TFT touch display

Adjustable display

Data backup as TXT, X3P, CSV or PDF file

Create complete PDF measuring records directly in the measuring instrument

Customized comments for the PDF measuring record can be entered directly into the MarSurf PS 10

Mains-independent operation: Over 1200 measurements without having to recharge the instrument

An all-in-one solution. Small and lightweight (approx. 500 g)

Instrument flexibility: removable drive unit

31 surface parameters: offer the same range of functions as a laboratory instrument

Roughness standard stored within housing aids in reducing errors

Quick access to your frequently used functions via the Favorites list in the display

Automatic cutoff selection, so even non-specialists can be sure of getting the correct measuring results

NEW: Additional version with transverse drive unit available as MarSurf PS 10 C2

Ask a question

Description

MarSurf PS 10 Mobile roughness measuring instrument

Technical data

	6910230 - PS 10 MarSurf set 2 µm	6910232 - PS 10 MarSurf set 5 µm	6910235 - MarSurf PS10 C2, transverse drive, 2µm probe
Measuring principle	Stylus method	Stylus method	Stylus method
Probe	Inductive skidded probe	Inductive skidded probe	inductive skidded probe
Measuring units	metric/inches	metric/inches	metric/inches
Measuring range mm	0,350	0,350	0.350
Profile resolution	8 nm	8 nm	8 nm
Filter according to ISO/JIS	Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off)	Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off)	Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off)
Short stroke under ISO/JIS	Selectable	Selectable	selectable
Traversing length according ISO 12085 (MOTIF)	1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm	1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm	1 mm, 2 mm, 4 mm
Evaluation lenth In according to ISO/JIS	1.25 mm, 4.0 mm, 12.5 mm	1.25 mm, 4.0 mm, 12.5 mm	1.25 mm, 4.0 mm
Number n of sampling length according to ISO/JIS	Selectable: 1 to 16	Selectable: 1 to 16	selectable: 1 to 16
Stylus	2 µm	5 µm	2 µm
Measuring force (N)	0,00075	0,00075	0.00075
Calibration function	Dynamic; Ra, Rz, Rsm	Dynamic; Ra, Rz, Rsm	dynamic; Ra, Rz, Rsm
Storage capacity	Min. 3900 profiles, min. 500,000 results, min. 1500 PDF records, expandable to 32 GB with Micro SD card	Min. 3900 profiles, min. 500,000 results, min. 1500 PDF records, expandable to 32 GB with Micro SD card	min. 3900 profiles, min. 500,000 results, min. 1500 PDF records, expandable with microSD card up to 32 GB
Other	Lock/password protected, date/time	Lock/password protected, date/time	Lock/password protected, date/time
System of protection	IP 40	IP 40	IP 40
Rechargeable batteries	Lithium-ion battery, min. 1200 measurements	Lithium-ion battery, min. 1200 measurements	Lithium-ion battery, min. 1200 measurements
Wide range power supply	100 to 264 V	100 to 264 V	100 to 264 V
Dimensions in mm	160 mm x 77 mm x 50 mm	160 mm x 77 mm x 50 mm	160 mm x 77 mm x 50 mm

6910230 - PS 10 MarSurf set 2 µm

6910232 - PS 10 MarSurf set 5 µm

6910235 - MarSurf PS10 C2, transverse drive, 2µm probe

Measuring principle

Stylus method

Probe

Inductive skidded probe

inductive skidded probe

Measuring units

metric/inches

Measuring range mm

0,350

0.350

Profile resolution

8 nm

Filter according to ISO/JIS

Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off)

Short stroke under ISO/JIS

Selectable

selectable

Traversing length according ISO 12085 (MOTIF)

1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm

1 mm, 2 mm, 4 mm

Evaluation lenth In according to ISO/JIS

1.25 mm, 4.0 mm, 12.5 mm

1.25 mm, 4.0 mm

Number n of sampling length according to ISO/JIS

Selectable: 1 to 16

selectable: 1 to 16
