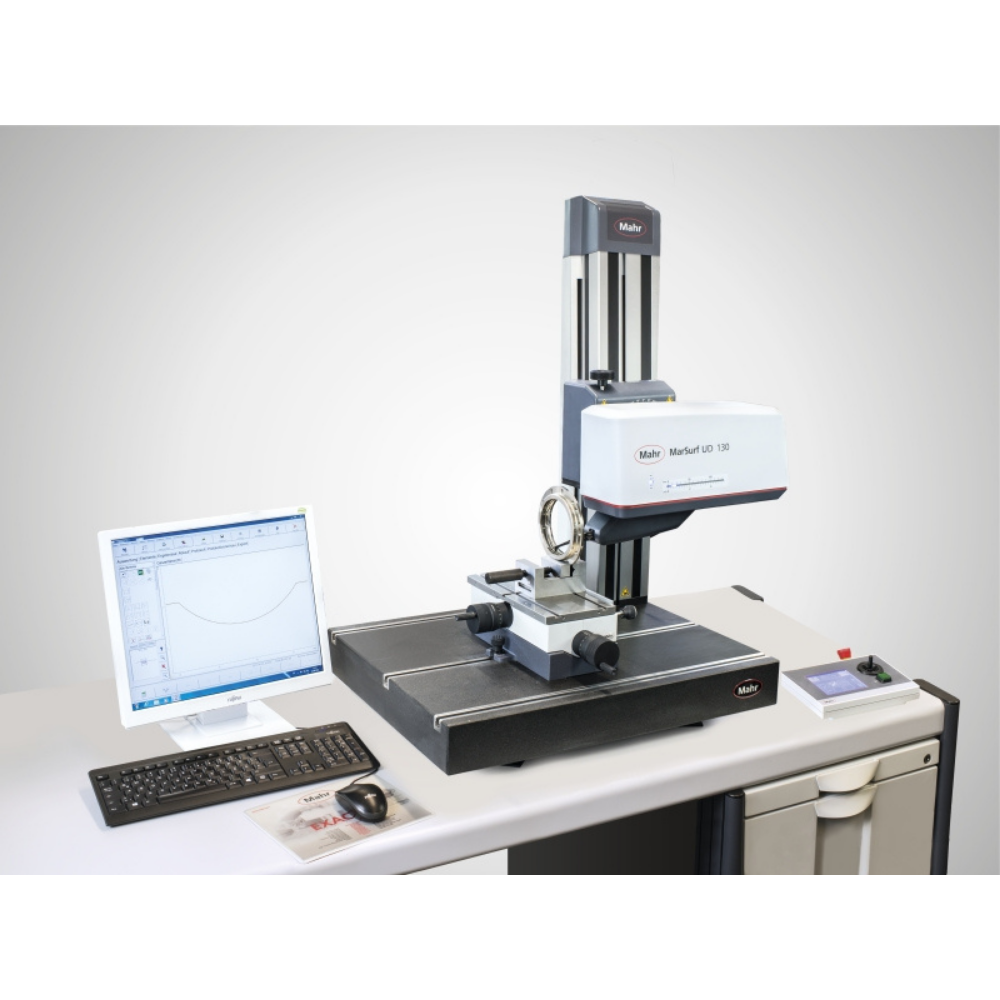

MAHR MarSurf LD 130/ LD 260 Combined contour and surface measuring station

MAHR MarSurf LD 130/ LD 260 Combined contour and surface measuring station
MAHR MarSurf LD 130/ LD 260 Combined contour and surface measuring station

MAHR MarSurf LD 130/ LD 260 Combined contour and surface measuring station

MarSurf LD 130 / LD 260. A step into a new dimension

Combined contour and roughness measurements in just one step comes courtesy of proven cutting-edge technology from Mahr metrology. The MarSurf LD 130 and MarSurf LD 260 measuring stations have been systematically developed to draw on the experience from the first generation of equipment.
Ask a question
Description Specification

MarSurf LD 130 Combined contour and surface measuring station

  • Roughness and contour in just one step

  • High measuring and positioning speed cuts measuring times dramatically

  • Innovative probe system removal

  • Quick and reliable probe arm exchange with simultaneous probe arm detection by magnetic holder

  • Long measuring length up to 260 mm (MarSurf LD 260) with a measuring stroke of 13 mm (100 mm probe arm length) or 26 mm (200 mm probe arm length)

  • Modular construction for ease of maintenance

  • No need to fully dismantle the measuring stand for maintenance

LD130-ST500CNC

6720821 - DRIVE UNIT LD130 SET

Resolution

0.8 nm

0.8 nm

Start of traversing length (in X)

0.1 mm

0.1 mm

End of traversing length (in X)

130 mm

130 mm

Positioning speed

0.02 mm/s to 200 mm/s

0.02 mm/s to 200 mm/s

Measuring speed

0.02 mm/s to 10 mm/s;

for roughness measurements

0.1 mm/s to 0.5 mm/s is recommended

0.02 mm/s to 10 mm/s;

for roughness measurements

0.1 mm/s to 0.5 mm/s is recommended

Measuring range mm

13 mm (100 mm probe arm)

26 mm (200 mm probe arm)

13 mm (100 mm probe arm)

26 mm (200 mm probe arm)

Traversing lengths

0.1 mm - 130 mm

0.1 mm - 130 mm

Measuring force (N)

0.5 mN to 30 mN, software adjustable

0.5 mN to 30 mN, software adjustable
