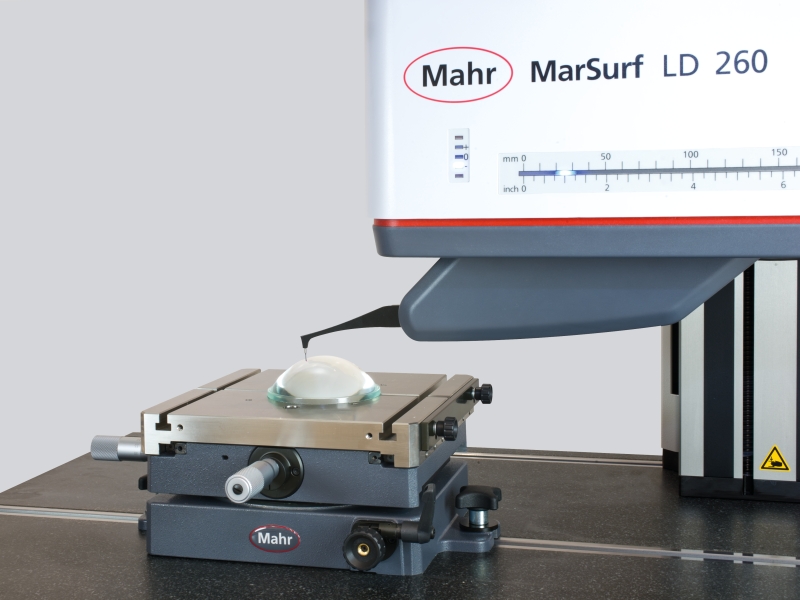

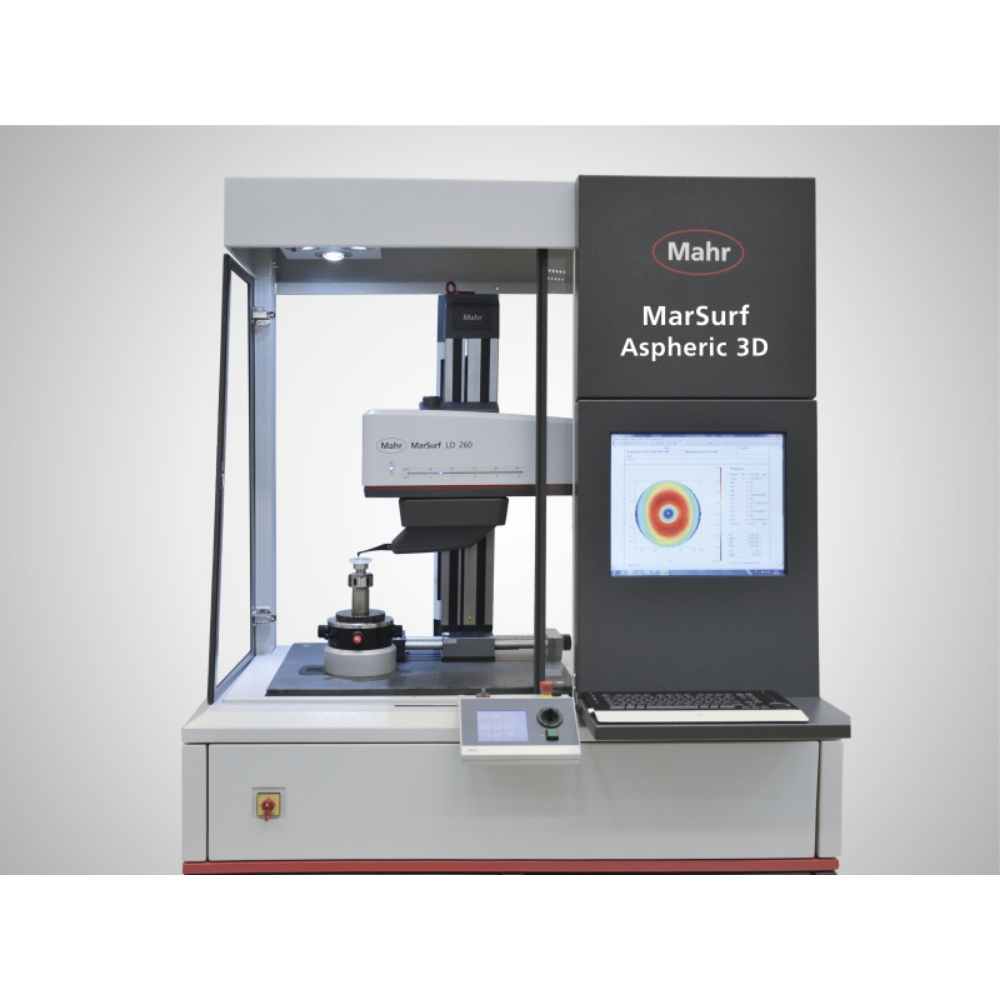

MarSurf LD 130 / 260 Aspheric is a high-precision 2D / 3D surface measuring station for characterizing contour and roughness on optical components. MarWin is the operating and evaluation software.
MarSurf LD 130 / 260 Aspheric 2D und 3D Asphere measuring station
Checks the topography in the first machining operations
Early detection of deviations, thus avoiding costly reworking
Differential profile output in machine-readable format for controlling the machine tool
Increased flexibility
Different types of rotationally symmetrical aspheres can be measured with one measuring system, no additional investment required
Large measuring range up to 260 mm (up to 400 mm with the stitching option)
Maximum measuring speed and dynamics (up to 10 mm/s for large lenses / up to 0.02 mm/s for microlenses)
Fully positionable stylus tip
Bionic-style LP D probe arm
Improved probe system dynamics thanks to increased rigidity and attenuation as well as a lower moment of inertia:- Optimized overall design of the probe system- Innovative choice of materials
Probe arm with integrated chip for:- Detecting and identifying the probe arm- Checking that the probe arm is inserted correctly- Providing information from probe arm
Your results will be right
The high-precision MarSurf LD 130 / 260 is the basis for the accurate measurement of your workpieces. The vertical resolution of 0.8 nm and form deviations of < 100 nm guarantee the exact reproduction of your asphere.
