The flexible, all-round measuring solution

The MarSurf CM explorer is a compact confocal microscope for the three-dimensional measurement and analysis of surfaces – contactless, independent of material, and fast.

The MarSurf CM explorer is suitable for use in test laboratories and equipped for quality assurance in production environments due to its robust construction and insensitivity to environmental influences.
Ask a question
Description Specification

MarSurf CM expert 3D surface measurement

Key benefits:

  • User-independent serial measurements by automation software

  • High measuring speed – even at full resolution

  • User-friendly concept

  • Safety through collision detection in all directions to protect your workpiece and measuring system

  • High Dynamic Range (HDR) function, 16-bit

  • Consistent high resolution output of large measuring surfaces due to HD stitching

This established optical measuring system is successfully used, for example, for:

  • Roughness measurement according to DIN EN ISO 4287 / 25178

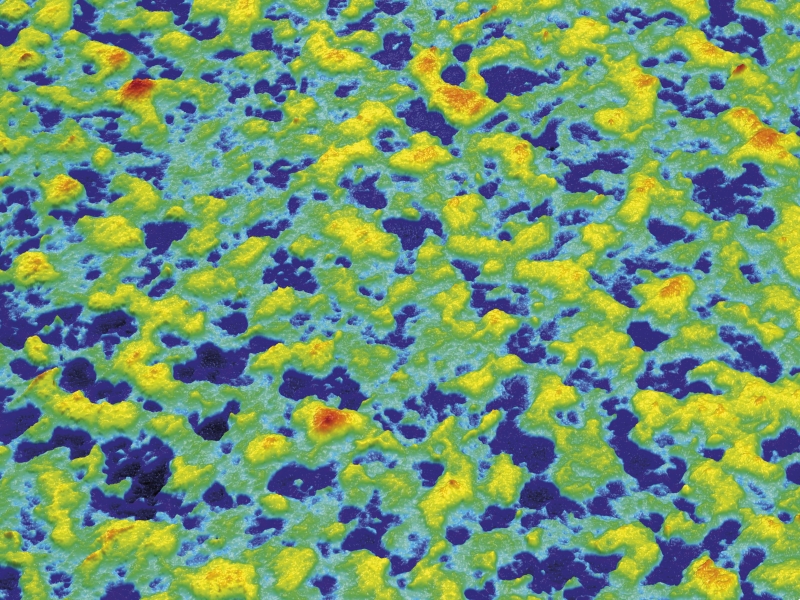

  • Topography measurement (including volume, wear, isotropy)

  • Measurement of microgeometry and layer thicknesses

Users value the reliability of this measuring system, which provides quantitative, traceable 3D characteristics for many industries .

Resolution

up to 2 (nm) vertical

Measuring speed

up to 100fps

Measuring principle

Confocal

High-performance LED (505nm / white)

Other

Collision detection in xyz direction

Power supplied

100 - 240 V

Surface parameters

ISO 4287, ISO 13565, ISO 25178, …

Positioning volume x

100 mm

Positioning volume y

100 mm

Positioning volume z

70 mm
