MAHR MarShaft SCOPE 350 / 750 / 1000 plus

The MarShaft SCOPE plus is suitable for use in both the harsh workshop environment and in the inspection room. Zoom functions allow the smallest details to be measured, which with conventional measuring methods are difficult if not impossible to test.

Automatic measuring procedure

Matrix camera, 1280 x 1024 pixels

User-friendly touchscreen operation

One measuring instrument for multiple measuring tasks

Good workshop compatibility

MarWin EasyShaft software provides a high level of flexibility and user-friendly operation

Ask a question

Description Specification

MarShaft SCOPE plus MarShaft SCOPE 350 / 750 / 1000 plus optical shaft measuring systems

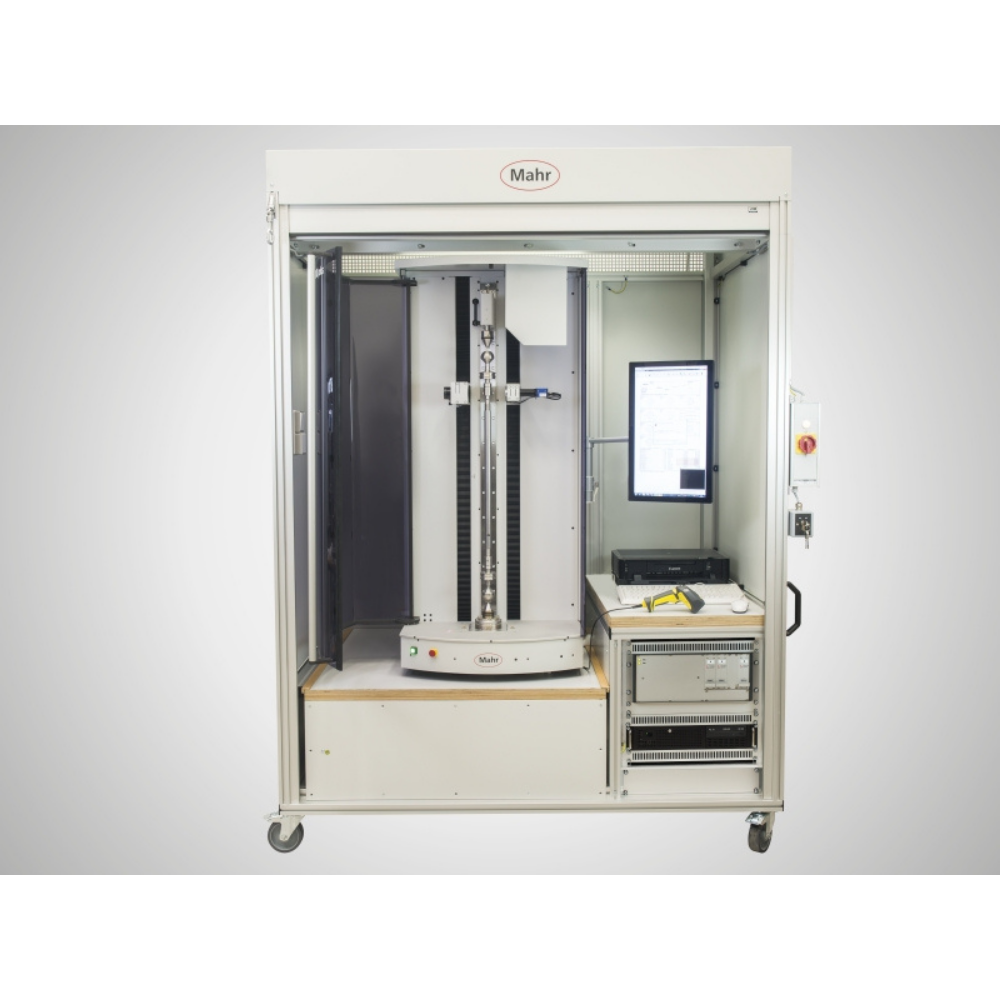

The MarShaft SCOPE plus is a universal, fully automatic optical shaft measuring system for testing rotationally symmetrical workpieces.

The MarShaft SCOPE plus has a highly accurate roundness measuring axis (C), a vertical measuring axis (Z) and a horizontal measuring axis (X).

A tactile measuring system with an inductive measuring probe is available as an option, for measuring radial and axial run-out, for example. The measuring device is calibrated to the optical measuring system, so it can perform tactile and optical measuring tasks in combination.

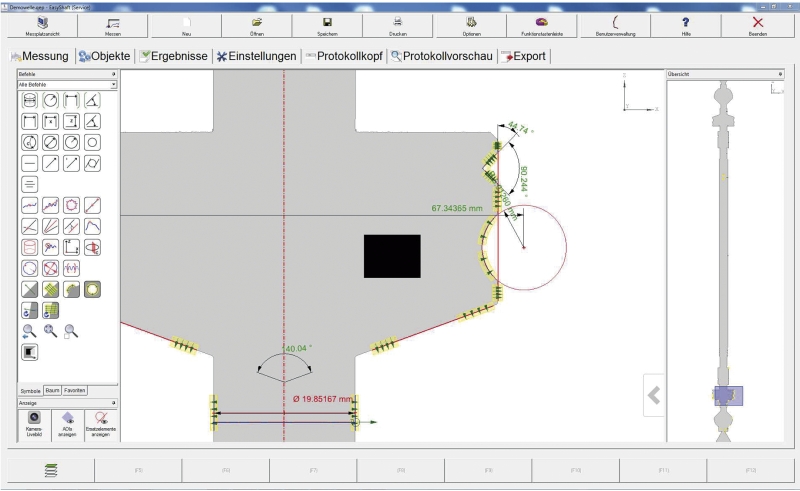

The new MarWin EasyShaft software provides a high level of flexibility and exceptionally user-friendly operation.

The measuring sequences are carried out fully automatically, free from operator influences.

Diameter error limit (X) (µm)	(1.0 + L/125) L in mm (at 20°C ± 1°C on reference standard)
Drives	Servo motors
Lens	Telecentric precision lens High-resolution CCD array
Length error limit (Z) (µm)	(2 + L/125) L in mm (at 20°C ± 1°C on reference standard)
Angle resolution (°)	0.01 to 0.0001
Measuring range diameter (X) (mm)	80 or 120
Workpiece weight (max.) in kg (text)	15 (optional 30)
Length/diameter resolution (mm)	0.01 to 0.0001
Measuring range length (Z) (mm)	350 / 750 / 1000
