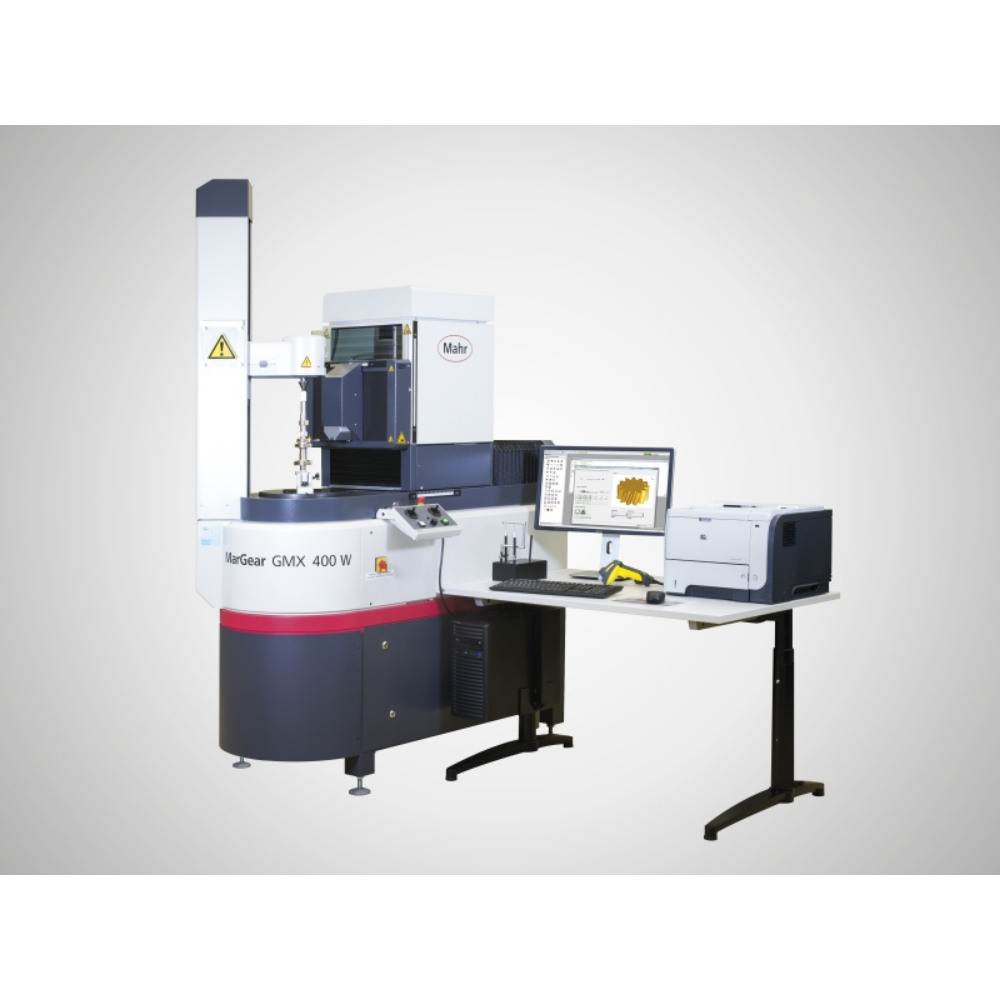

MAHR MarGear GMX 400 W Universal gear measuring center

MarGear GMX 400 W Universal gear measuring center

Combining gear measuring tasks with various form & position features has never been easier.

With over 6000 units sold, the MarWin environment is a clear and simple way of creating complete programs in Teach In mode.

Improves programming efficiency and reduces the possibility of incorrect use.

Proven GMX realtime machine error correction is also used for positioning movements with the new MarEcon control unit, guaranteeing maximum speed and precision throughout the entire measuring and movement sequence.

Gear, form and 3D measurements are performed on one measuring instrument.

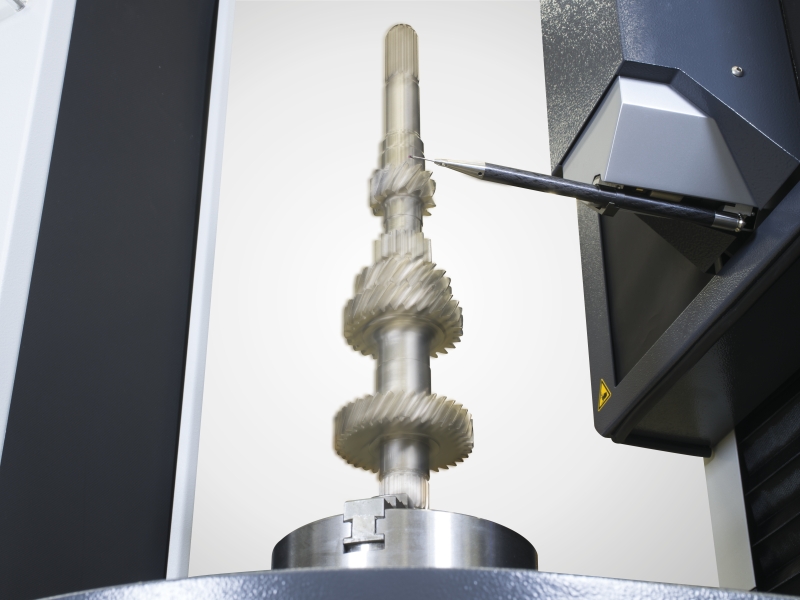

High-precision 3D scanning sensor combined with directly driven C-axis for accuracy and efficiency.

GDE interface: "Closed loop" for cylindrical gears.

With tailstock option.

Gear measuring instrument, accuracy class 1, for gear measurements in accordance with VDI/VDE 2612/2613 Group 1 at 20°C ± 2 K (rotational axis in form tester accuracy)
