MAHR MarForm MMQ 200 Compact form measuring machine

MAHR MarForm MMQ 200 Compact form measuring machine
MAHR MarForm MMQ 200 Compact form measuring machine gallery
MAHR MarForm MMQ 200 Compact form measuring machine
MAHR MarForm MMQ 200 Compact form measuring machine gallery

MAHR MarForm MMQ 200 Compact form measuring machine

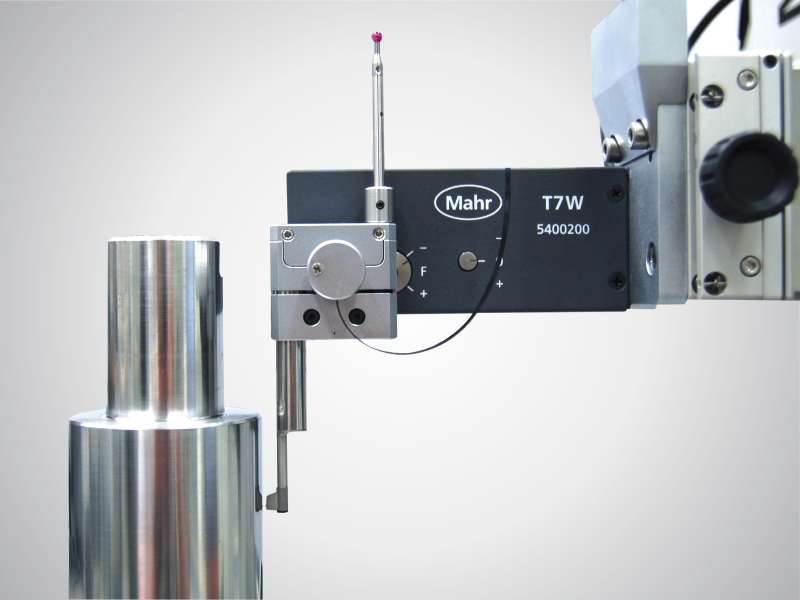

The MarForm MMQ 200 is available in two versions: As a measuring station with the universal measuring probe T20W and as a measuring station with the motorized measuring probe T7W, which takes automation another step forward with its unique motorization.

The MMQ 200 is operated with the EasyForm software. It is controlled by means of touchscreen technology, which also makes operation with the mouse exceptionally easy.
Ask a question
Description Specification

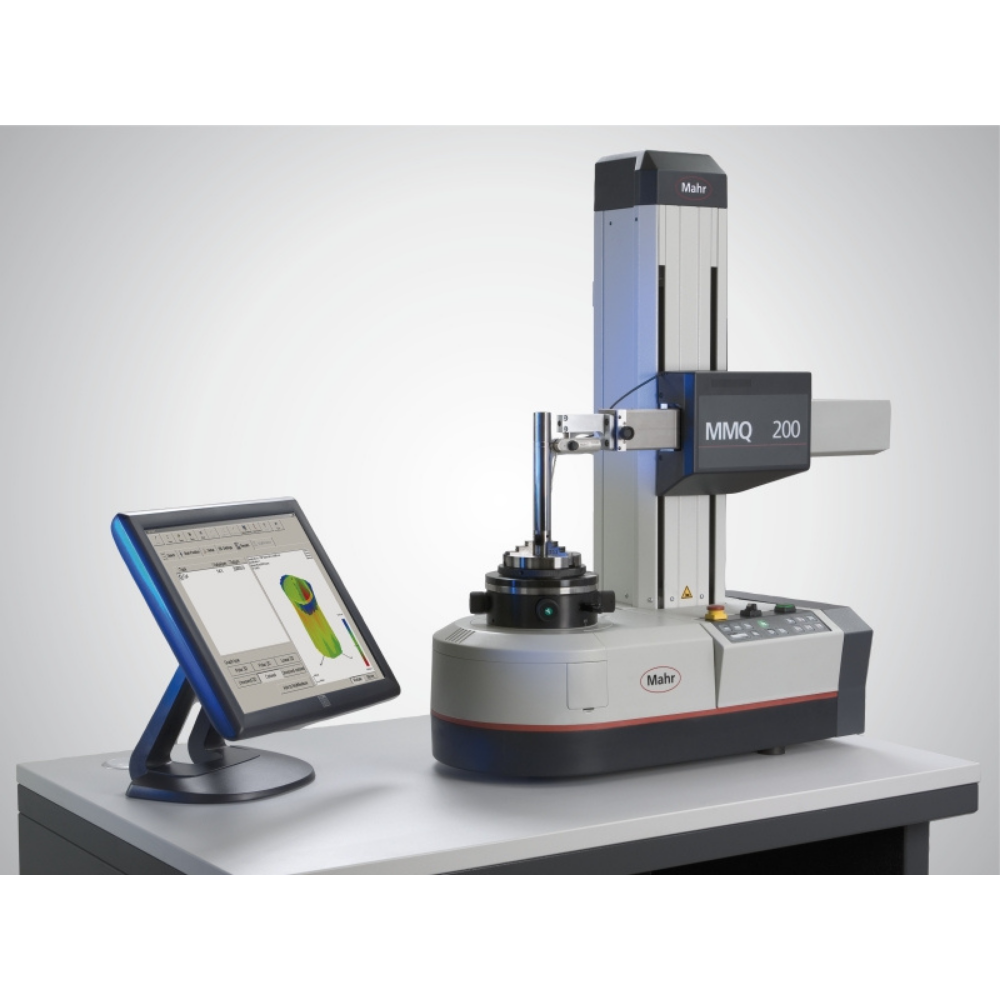

MarForm MMQ 200 Compact form measuring machine

Compact form measuring machine for manufacturing workshops and inspection rooms.

  • Proof of form and position deviations as per DIN/ISO 1101

  • Fully automatic measuring sequences

  • Precision roundness measuring axis (C)

  • Motorized vertical measuring axis (Z)

  • Motorized horizontal positioning axis (X)

  • Manual centering and tilting table

  • T20W manual length measuring probe or

  • T7W motorized probe

  • Ergonomic control panel, can also be used to start select measuring programs (P1, P2,

Roundness deviation (µm+µm/mm measuring height) *

0,015 + 0,0003

Roundness deviation (µm+µm/mm measuring height) **

0,03 + 0,0006

Axial runout deviation (µm+µm/mm measuring radius) *

0,02 + 0,0001

Axial runout deviation (µm+µm/mm measuring radius) **

0,04 + 0,0006

Centering and tilting table

manual

Table diameter (mm)

160

Table load capacity, centered (N)

200

Speed (rpm) 50 Hz / 60 Hz

0.2-15

Measuring path, motorized Z (mm)

250

Straightness deviation / 100 mm measuring path (µm)**, Z axis

0.15

Straightness deviation / total measuring path (µm)**, Z axis

0.3

Parallelism deviation Z-/C axis in tracing direction, measuring path (µm)

0.5

Measuring speed (mm/s), Z axis

0.5-30

Positioning speed (mm/s), Z axis

0,5-100

Positioning path (mm), X axis

150, motorized

Positioning speed (mm/s), X axis

0,5-30

Footer text

* Values as maximum deviation from LSC reference circle, filter 15 undulations/revolution.

** All values in accordance with DIN ISO 1101 at 20°C ±1°C in a vibration-neutral environment, filter 15 undulations/revolution LSC or 2.5 mm LSS, 5 rpm or 5 mm/s and standard probe arm with ball diameter 3 mm. Proof at the standard using error separation techniques. Given the number of different options available, only a few machines are described here by way of example. Technical data for "your" MMQ is available from Mahr on request.
