MAHR MarForm MMQ 100 Compact form measuring machine

MAHR MarForm MMQ 100 Compact form measuring machine
MAHR MarForm MMQ 100 Compact form measuring machine gallery
MAHR MarForm MMQ 100 Compact form measuring machine
MAHR MarForm MMQ 100 Compact form measuring machine gallery

MAHR MarForm MMQ 100 Compact form measuring machine

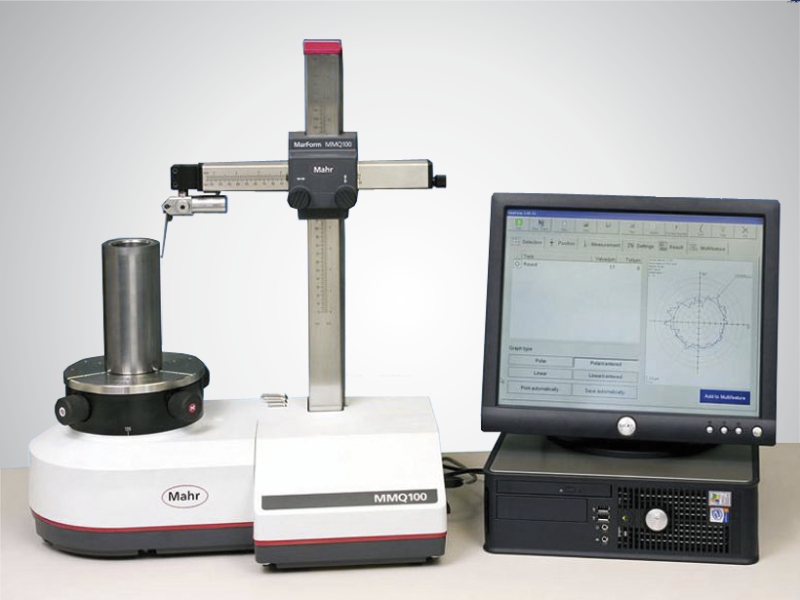

The MMQ 100 measuring station with EasyForm comes as a complete system. The MMQ 100 consists of the following:

  • MarForm MMQ 100

  • Digital encoders in X/Z

  • T20W probe

  • MarWin® EasyForm Software

  • MarWin PC with WIN 10 operating system

  • 24" TFT monitor

  • Touch sensitive touch screen monitor (optional)

Ask a question
Description Specification

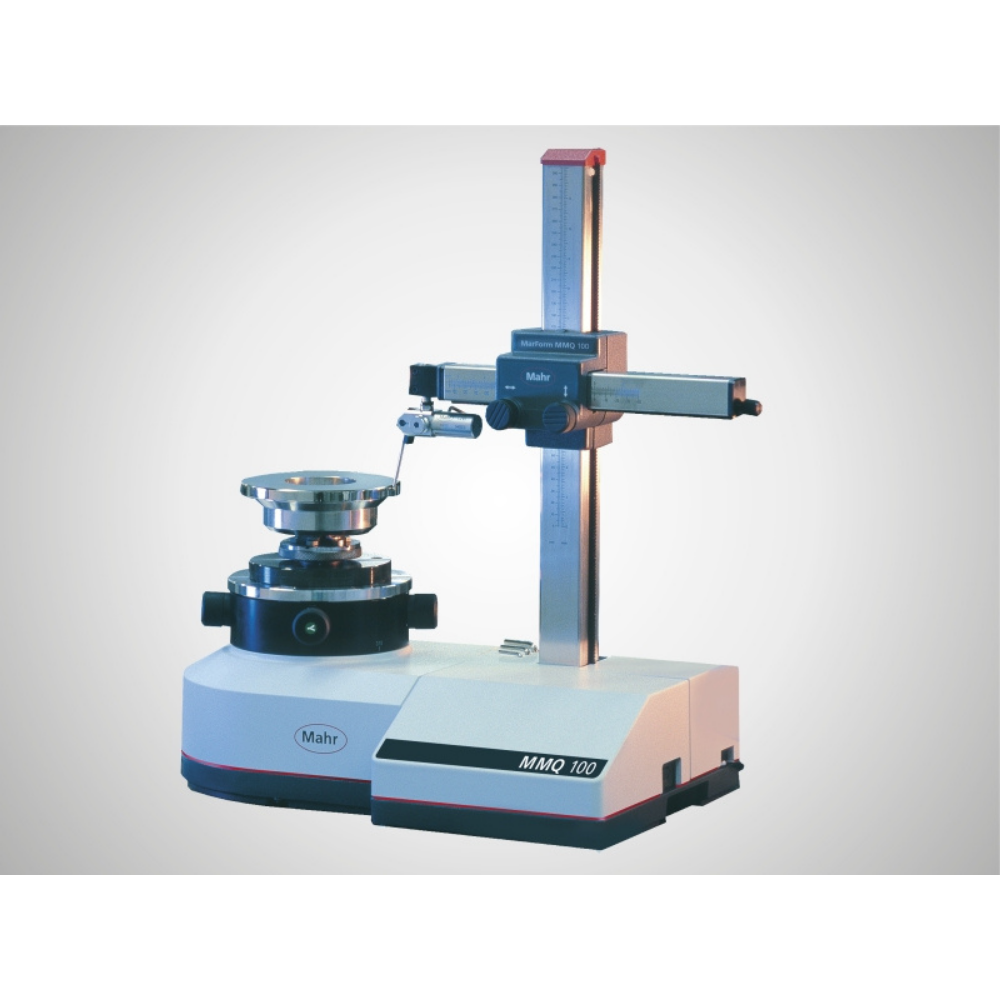

MarForm MMQ 100 Compact form measuring machine

The MarForm MMQ 100 form tester is the ideal solution for simple yet precise measuring tasks.

  • Fast and accurate measuring results

  • Mechanical bearings for reliability

  • Large measuring volume

  • Low weight and compact size for greater mobility

  • Fast, computer aided workpiece alignment

  • Centering and tilting knobs for coarse and fine adjustment

  • Universal and reliable

  • Workshop compatible, no compressed air connection required

  • Touchscreen design eliminates the need for a keyboard or mouse

  • Digital encoders in Z and X transfer the measuring position directly to the software

Roundness deviation (µm+µm/mm measuring height) *

0,025 + 0,0003

Roundness deviation (µm+µm/mm measuring height) **

0,05 + 0,0006

Axial runout deviation (µm+µm/mm measuring radius) *

0,02 + 0,0003

Axial runout deviation (µm+µm/mm measuring radius) **

0,04 + 0,0006

Centering and tilting table

manual

Table diameter (mm)

160

Table load capacity, centered (N)

200

Speed (rpm) 50 Hz / 60 Hz

5 / 6

Positioning path (mm), Z axis

300, manual

Z axis positioning

manual

Positioning path (mm), X axis

180, manual

Footer text

* Values as maximum deviation from LSC reference circle, filter 15 undulations/revolution.

** All values in accordance with DIN ISO 1101 at 20°C ±1°C in a vibration-neutral environment, filter 15 undulations/revolution LSC or 2.5 mm LSS, 5 rpm or 5 mm/s and standard probe arm with ball diameter 3 mm. Proof at the standard using error separation techniques. Given the number of different options available, only a few machines are described here by way of example. Technical data for "your" MMQ is available from Mahr on request.
